JGS8750BDB 05 – GAS CONTROLS

JGS8750BDB 05 – GAS CONTROLS

Written by

in

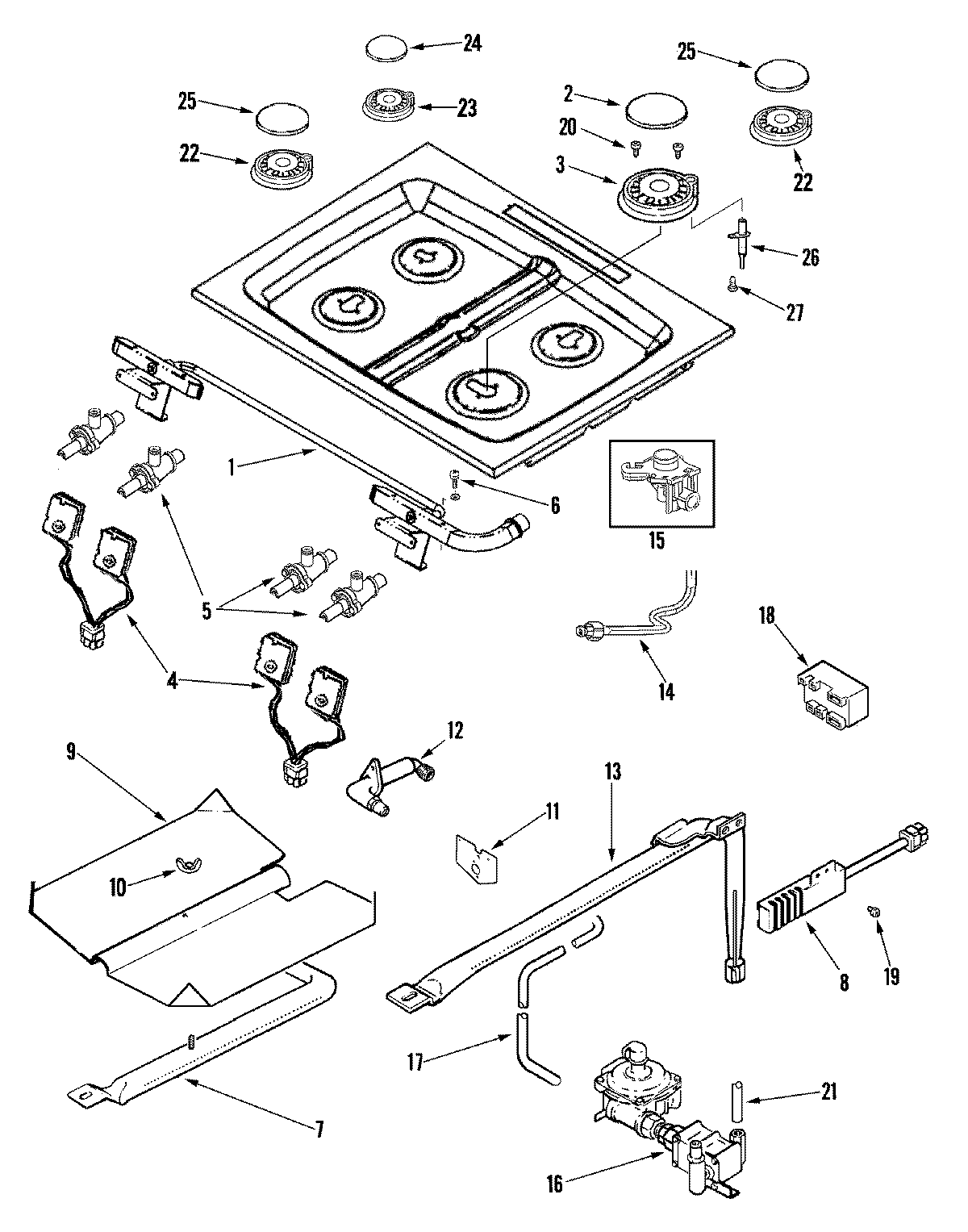

JGS8750BDB 05 – GAS CONTROLS

Products

PositionProduct
1MAY 74011659
2CAP, BURNER (EX-LRG/BLK)
374007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
4WP74011647 Whirlpool HAR Switch
4WP74011648 Whirlpool Harsh Switch
5MAY 74009452
5MAY 74009451
512002270 Whirlpool Valve Kit and Screw 16K
6MAY 74009416
7MAY 74004076
874007498 Whirlpool Range Flat Igniter
9MAY 74009231
10NUT, WING
11MAY 74004307
12MAY 74010901
13MAY 74003960
13MAY 3807F446-45
14MAY 74011653
14MAY 74011704
14MAY 74011705
14MAY 74011703
1574009553 Whirlpool Orifice Holder
15WP7527P002-60 Whirlpool Orifice Holder
15WP7527P004-60 Whirlpool Orifice Holder
16MAY W10130932
17MAY 74004408
18WPW10475147 Whirlpool Spark Module
19SCREW (10-24X5/16-NI)
20WP400021-1 Whirlpool Screw
21MAY 74011658
2274007735 Whirlpool Burner Assembly
2374007734 Whirlpool Burner Assembly
24WP8284669 Whirlpool Burner Cap
25Cap, Burner (12.5K RF, LR)
26WP74009336 Whirlpool Oven Top Igniter
27WP8273062 Whirlpool Screw
