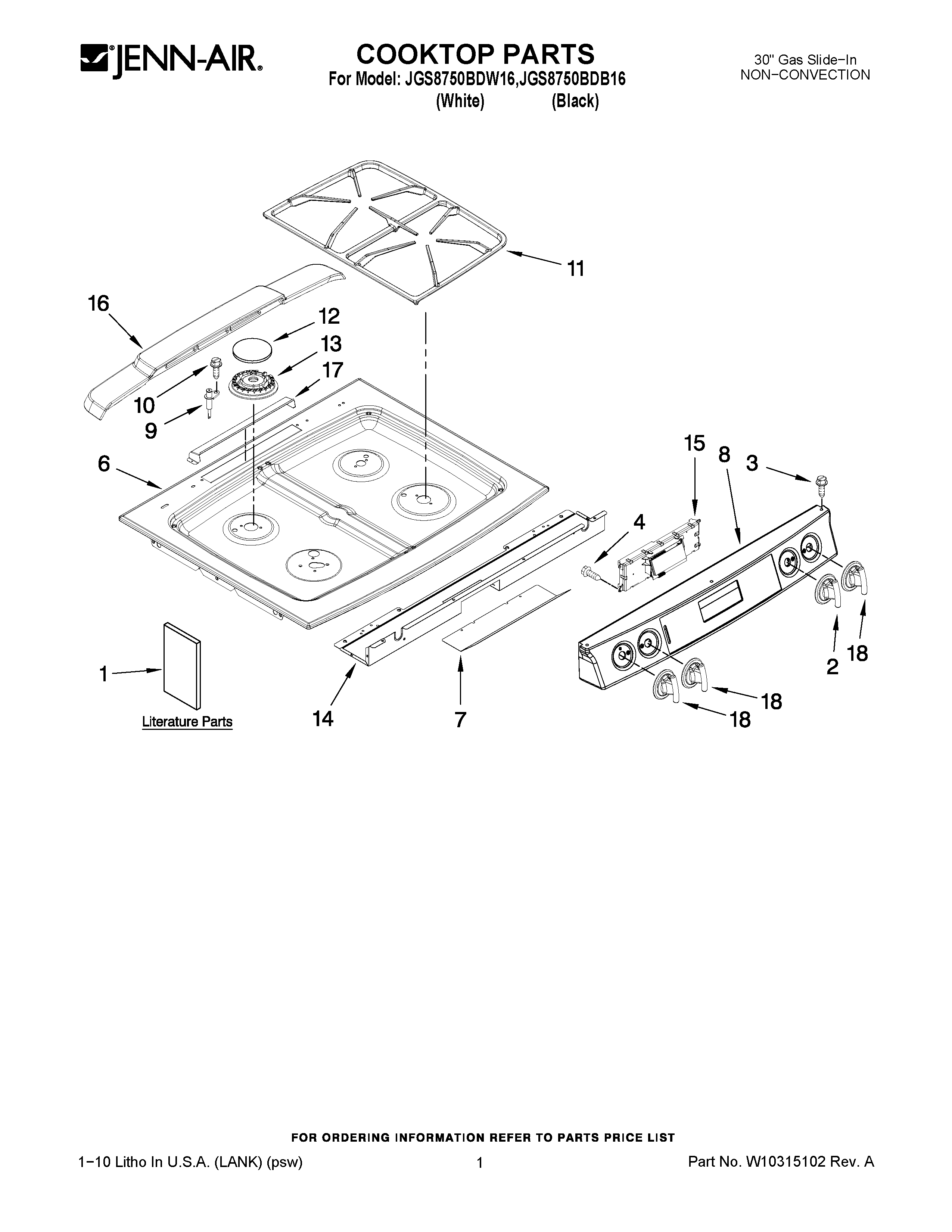

JGS8750BDB16 01 – COOKTOP PARTSadmin2025-04-26T09:20:49+00:00JGS8750BDB16 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | MAY 8119P165-60 |
| 1 | OWNERS MANUAL |
| 1 | MAY 8101P697-60 |
| 2 | KNOB, SIMMER |
| 3 | MAY 7101P426- 60 |
| 4 | WP59002061 Whirlpool Microwave Screw |
| 6 | MAY W10202581 |
| 6 | MAY W10204422 |
| 7 | SHIELD, CONTROL |
| 8 | MAY W10206076 |
| 8 | MAY W10206075 |
| 9 | IGNITOR |
| 10 | MAY 7101P606-60 |
| 11 | MAY 7518P358-60 |
| 12 | CAP, BURNER (CTR) |
| 12 | CAP, BURNER (LF & RR) |
| 12 | CAP, BURNER (LR & RF) |
| 13 | HEAD, BURNER (CTR) |
| 13 | HEAD, BURNER (LR & RF) |
| 13 | HEAD, BURNER (LF & RR) |
| 14 | MAY 3807F731-51 |
| 15 | MAY 8507P227-60 |
| 16 | MAY 7724P200-60 |
| 17 | BAFFLE,VENT COVER |
| 18 | KNOB, GAS (3) |
