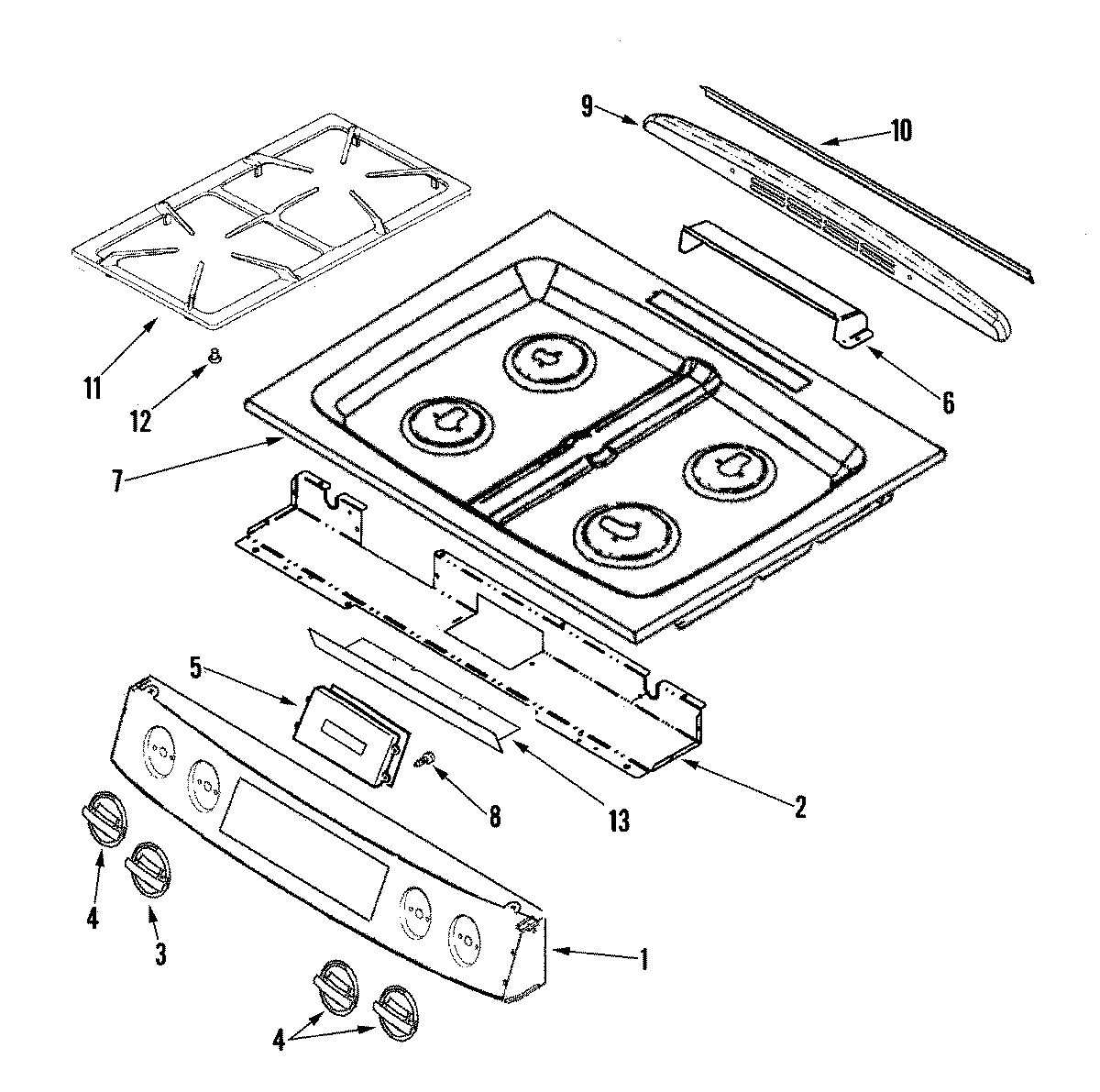

JGS8750BDS 02 – CONTROL PANEL/TOP ASSEMBLY
Written by
in
JGS8750BDS 02 – CONTROL PANEL/TOP ASSEMBLY
Products
Position
Product
1
MAY 74011709
2
MAY 74011761
3
WP74011664 Whirlpool Burner Knob
4
WP74011666 Whirlpool Burner Knob
5
MAY 74011720
6
BAFFLE,VENT COVER
7
MAY 74011700
8
WP74004005 Whirlpool Screw
9
MAY 74011826
10
MAY 7201P061-60
12
MAY M0275597
12
W10919249 Whirlpool Burner Grate Foot
13
MAY 74011825
←
