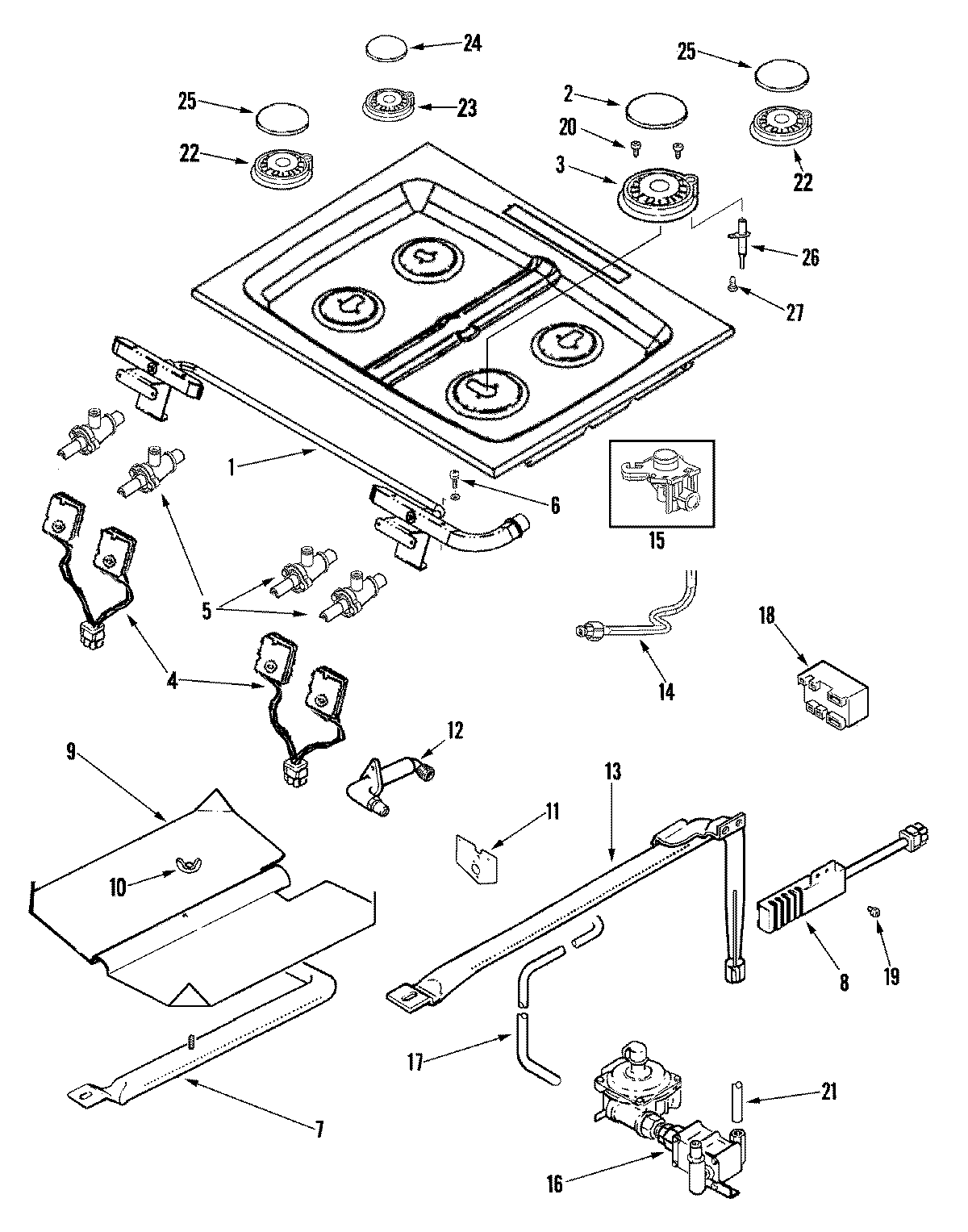

JGS8750BDS 05 – GAS CONTROLS

Products

Position	Product
1	MAY 74011659
2	CAP, BURNER (EX-LRG/BLK)
3	74007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
4	WP74011647 Whirlpool HAR Switch
4	WP74011648 Whirlpool Harsh Switch
5	MAY 74009452
5	MAY 74009451
5	12002270 Whirlpool Valve Kit and Screw 16K
6	MAY 74009416
7	MAY 74004076
8	74007498 Whirlpool Range Flat Igniter
9	MAY 74009231
10	NUT, WING
11	MAY 74004307
12	MAY 74010901
13	MAY 74003960
13	MAY 3807F446-45
14	MAY 74011653
14	MAY 74011704
14	MAY 74011705
14	MAY 74011703
15	74009553 Whirlpool Orifice Holder
15	WP7527P002-60 Whirlpool Orifice Holder
15	WP7527P004-60 Whirlpool Orifice Holder
16	MAY W10130932
17	MAY 74004408
18	WPW10475147 Whirlpool Spark Module
19	SCREW (10-24X5/16-NI)
20	WP400021-1 Whirlpool Screw
21	MAY 74011658
22	74007735 Whirlpool Burner Assembly
23	74007734 Whirlpool Burner Assembly
24	WP8284669 Whirlpool Burner Cap
25	Cap, Burner (12.5K RF, LR)
26	WP74009336 Whirlpool Oven Top Igniter
27	WP8273062 Whirlpool Screw
