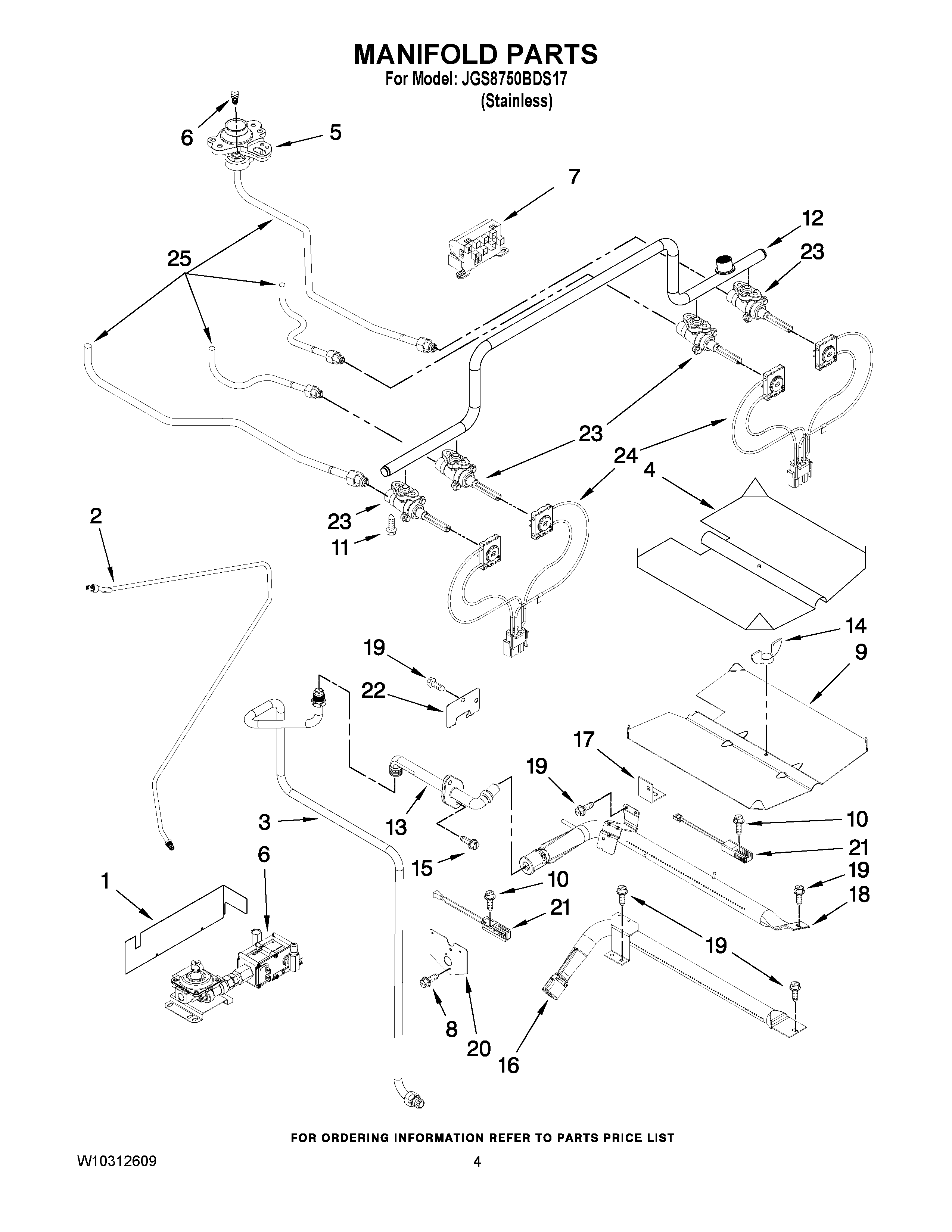

JGS8750BDS17 03 – MANIFOLD PARTS

JGS8750BDS17 03 – MANIFOLD PARTS

Written by

in

JGS8750BDS17 03 – MANIFOLD PARTS

Products

PositionProduct
NIMAY 7507P405-60
1COVER, BNR VALVE
2MAY 7506P489-60
3TUBING, BROILER
4BAFFLE, BAKE (BROIL)
5HOLDER, ORIFICE (LF, RR)
5HOLDER, ORIFICE (CTR)
5HOLDER, ORIFICE (LR)
6VAVLE, SAFETY
7MAY 7431P038-60
8MAY 7101P346-60
9BAFFLE, OVEN BOTTOM
10SCREW (10-24X5/16-NI)
11SCREW (8BX3/8-NI)
12MAY 7513P473-60
13MAY 7507P407-60
14NUT, WING
15MAY 7101P676-60
16MAY 7505P254-60
17MAY 3807F480-45
18MAY 7505P293-60
19MAY 7101P434-60
20MAY 3605F269-45
21IGNITOR, OVEN
22MAY 4005F421-45
23MAY 7502P548-60
23VALVE, TOP BURNER (RR/LF 9.2K)
23VALVE, TOP BURNER (LR 5K)
24HARNESS, VALVE (RF/RR)
24HARNESS, VALVE (LF/LR)
25MAY 7506P445-60
25MAY 7506P486-60
25TUBE, BURNER (LR)
