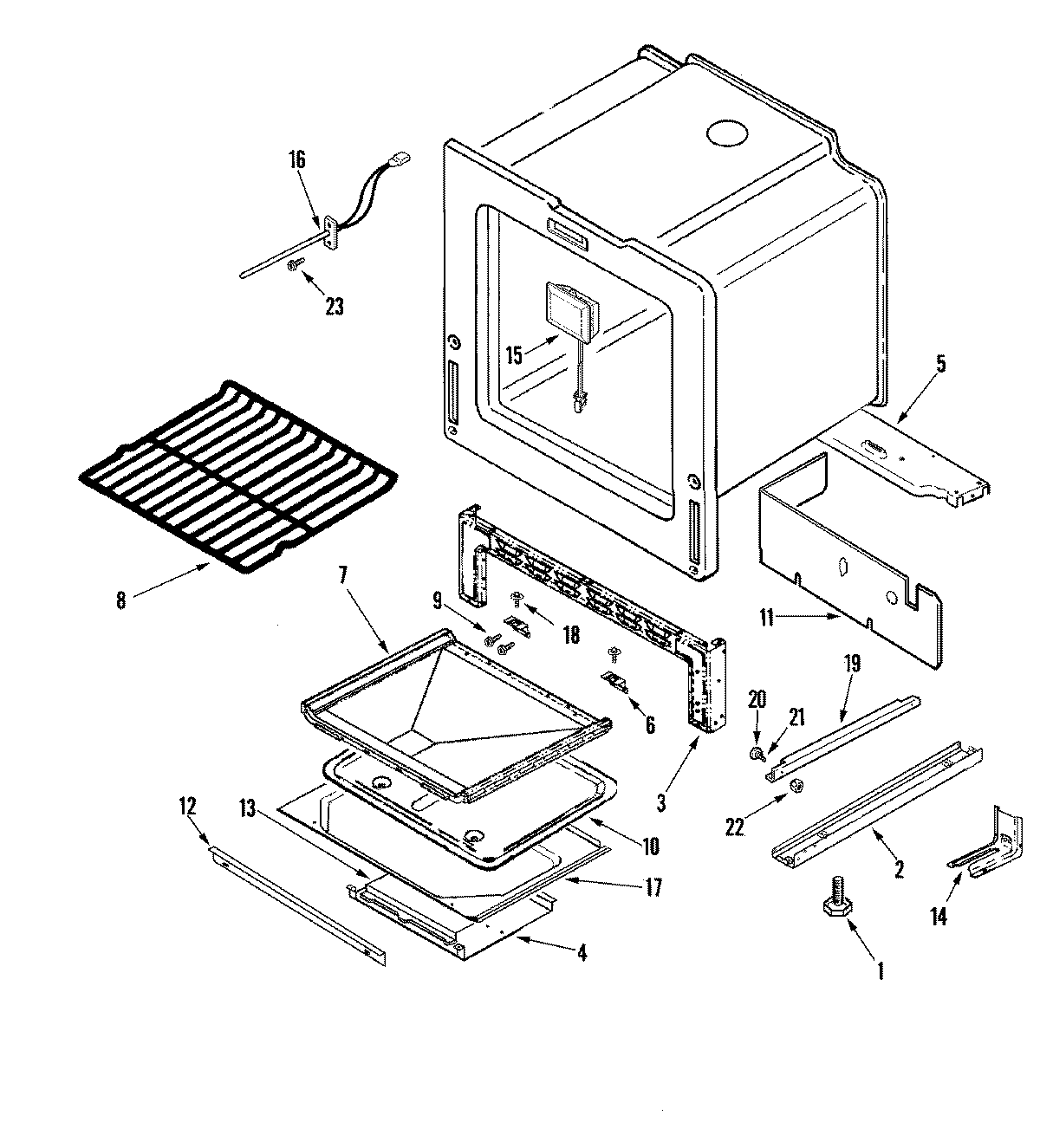

JGS8750BDW 06 – OVEN/BASE

Products

Position	Product
1	WP74010805 Whirlpool Screw
2	4020W035-80 Whirlpool Bottom PE
3	PEDESTAL, FRONT
4	MAY 74006591
5	SUPPORT, VALVE REGULATOR
6	MAY 74010812
7	WP2205F054-19 Whirlpool Oven Bottom
8	WPW10282492 Whirlpool Oven Rack
10	PAN, BAKE BURNER
11	COVER, VALVE/REGULATOR
12	BAFFLE, OVEN FRONT
13	MAY 74006574
14	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
15	MAY 74011220
16	12001655 Whirlpool Oven Sensor
17	INSULATION, OVEN BOTTOM
17	RETAINER, BOTTOM INSULATION
19	RUNNER, DRAWER
20	WP74004078 Whirlpool Door Roller
21	SHAFT, STORAGE DRAWER ROLLER
22	74005230 Whirlpool Oven Lock Nut (8-32)
23	WP74003976 Whirlpool Screw
