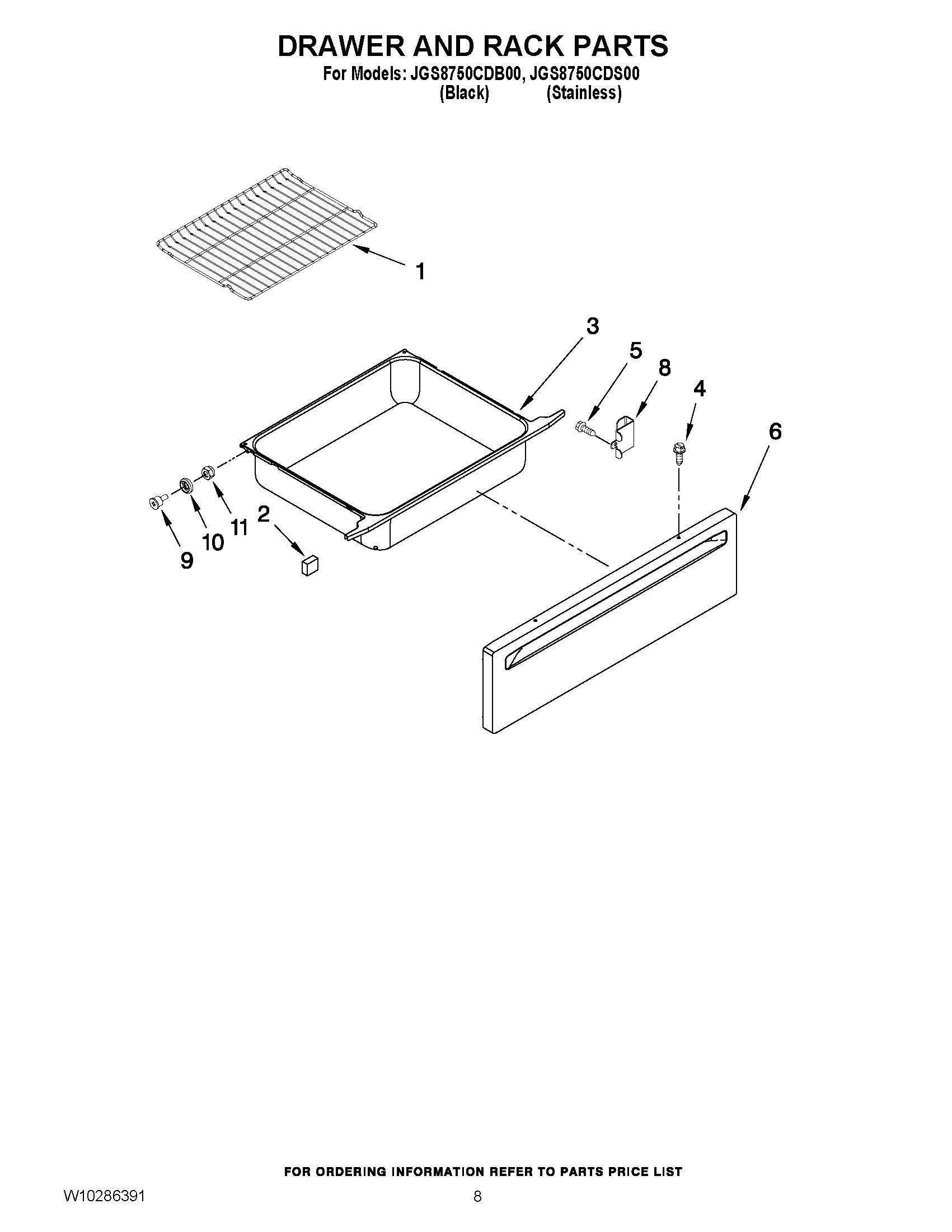

JGS8750CDB00 05 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	RACK, OVEN (2)
2	WPW10131078 Whirlpool Nut Assembly
3	DRAWER, STORAGE
4	WP7101P072-60 Whirlpool Screw
5	MAY 7101P376-60
6	LINER (NOT A SERVICEABLE PART)
8	MAY 3801F887-51
9	MAY 8014P022-60
10	MAY 7118P032-60
11	WP488130 Whirlpool Air Conditioner Nut
