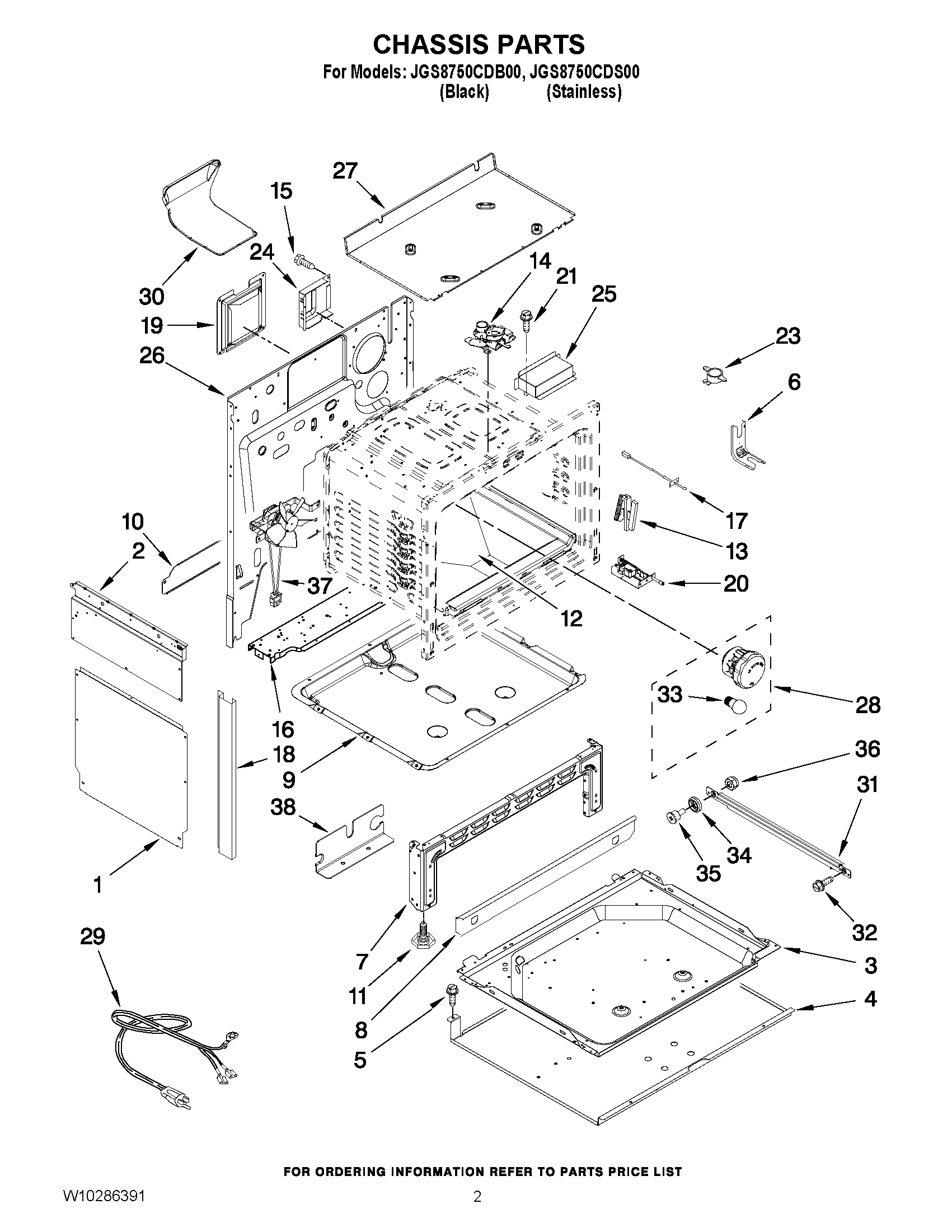

JGS8750CDS00 02 – CHASSIS PARTSadmin2025-04-26T09:20:30+00:00JGS8750CDS00 02 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, OVEN BOTTOM |
| NI | MAY 7002P471-60 |
| NI | MAY 7002P445-60 |
| 1 | MAY 3604F416-51 |
| 2 | MAY 2618F201-51 |
| 2 | MAY 2618F206-51 |
| 4 | SHIELD, WARM. DWR. |
| 5 | MAY 7101P376-60 |
| 6 | BRACKET, ANTI-TIP |
| 7 | PEDESTAL, FRONT |
| 8 | MAY 3601F251-45 |
| 9 | MAY 3401F044-45 |
| 10 | MAY 3826F066-51 |
| 11 | LEG, LEVELING |
| 12 | MAY 2205F054-19 |
| 13 | Hinge, Door (2) |
| 14 | MAY 8002P089-60 |
| 15 | Screw (Black) (2) |
| 16 | SUPPORT |
| 17 | Sensor, Oven |
| 18 | TRIM, SIDE (BLACK (2)) |
| 19 | RETAINER, CONV INSULATION |
| 20 | ASSY., LIGHT SW |
| 21 | MAY 7101P434-60 |
| 23 | MAY 7450P030-60 |
| 24 | COVER, MAIN WIRE |
| 25 | COVER, DOOR LATCH |
| 26 | BACK, MAIN |
| 27 | MAY 4011F475-51 |
| 28 | MAY 7407P180-60 |
| 29 | MAY 7402P086-60 |
| 30 | MAY 8026P095-60 |
| 31 | RUNNER, DRAWER (2) |
| 32 | SCREW, HINGE |
| 33 | RANGE ONLY 40W 120V APPL BULB |
| 34 | MAY 8014P022-60 |
| 35 | MAY 7118P032-60 |
| 36 | MAY 7103P190-60 |
| 37 | MAY 7427P094-60 |
| 38 | MAY 3801F951-51 |
