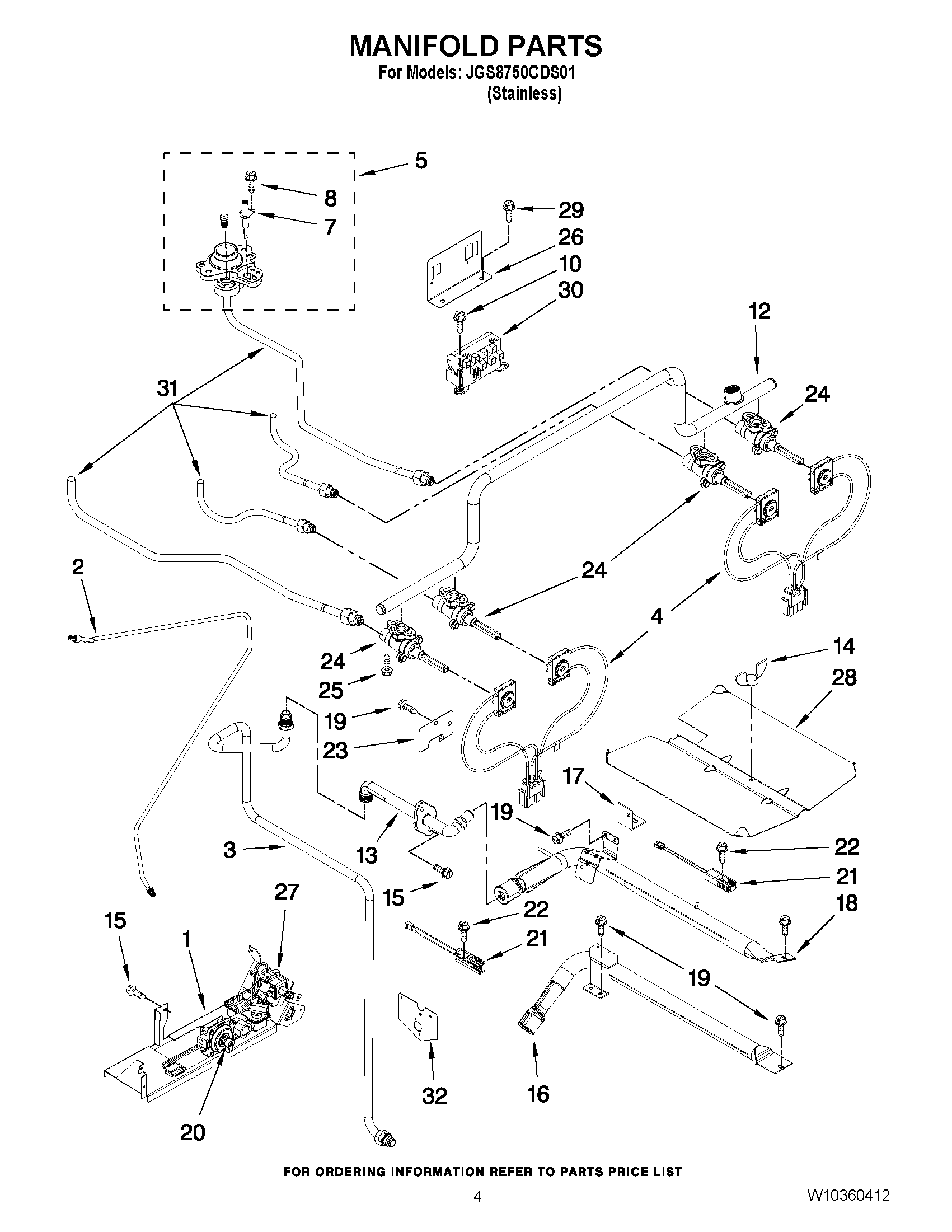

JGS8750CDS01 03 – MANIFOLD PARTSadmin2025-04-26T09:22:27+00:00JGS8750CDS01 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | MAY W10258117 |
| 1 | COVER, BNR VALVE |
| 2 | MAY 7506P489-60 |
| 3 | MAY 7506P536-60 |
| 4 | MAY W10160396 |
| 4 | HARNESS, VALVE (RF/RR) |
| 4 | HARNESS, VALVE (LF/LR) |
| 5 | HOLDER, ORIFICE (LF, RR) |
| 5 | HOLDER, ORIFICE (CTR) |
| 5 | HOLDER, ORIFICE (LR) |
| 7 | IGNITOR |
| 8 | MAY 7101P606-60 |
| 12 | MAY 7513P473-60 |
| 13 | MAY 7507P407-60 |
| 14 | NUT, WING |
| 15 | MAY 7101P676-60 |
| 16 | MAY 7505P254-60 |
| 17 | MAY 3807F480-45 |
| 18 | MAY 7505P293-60 |
| 19 | MAY 7101P434-60 |
| 20 | MAY 7510P079-60 |
| 21 | IGNITOR, OVEN |
| 22 | SCREW (10-24X5/16-NI) |
| 23 | MAY 4005F421-45 |
| 24 | VALVE, TOP BURNER (LR 5K) |
| 24 | MAY 7502P548-60 |
| 24 | VALVE, TOP BURNER (RR/LF 9.2K) |
| 25 | SCREW (8BX3/8-NI) |
| 26 | BRACKET |
| 27 | MAY 7501P232-60 |
| 28 | BAFFLE, BAKE (BROIL) |
| 28 | BAFFLE, OVEN BOTTOM |
| 29 | MAY 7101P346-60 |
| 30 | MAY 7431P038-60 |
| 31 | MAY 7506P488-60 |
| 31 | TUBE, BURNER (LR) |
| 31 | MAY 7506P486-60 |
| 31 | MAY 7506P445-60 |
| 31 | MAY 7506P482-60 |
| 32 | MAY 3605F269-45 |
