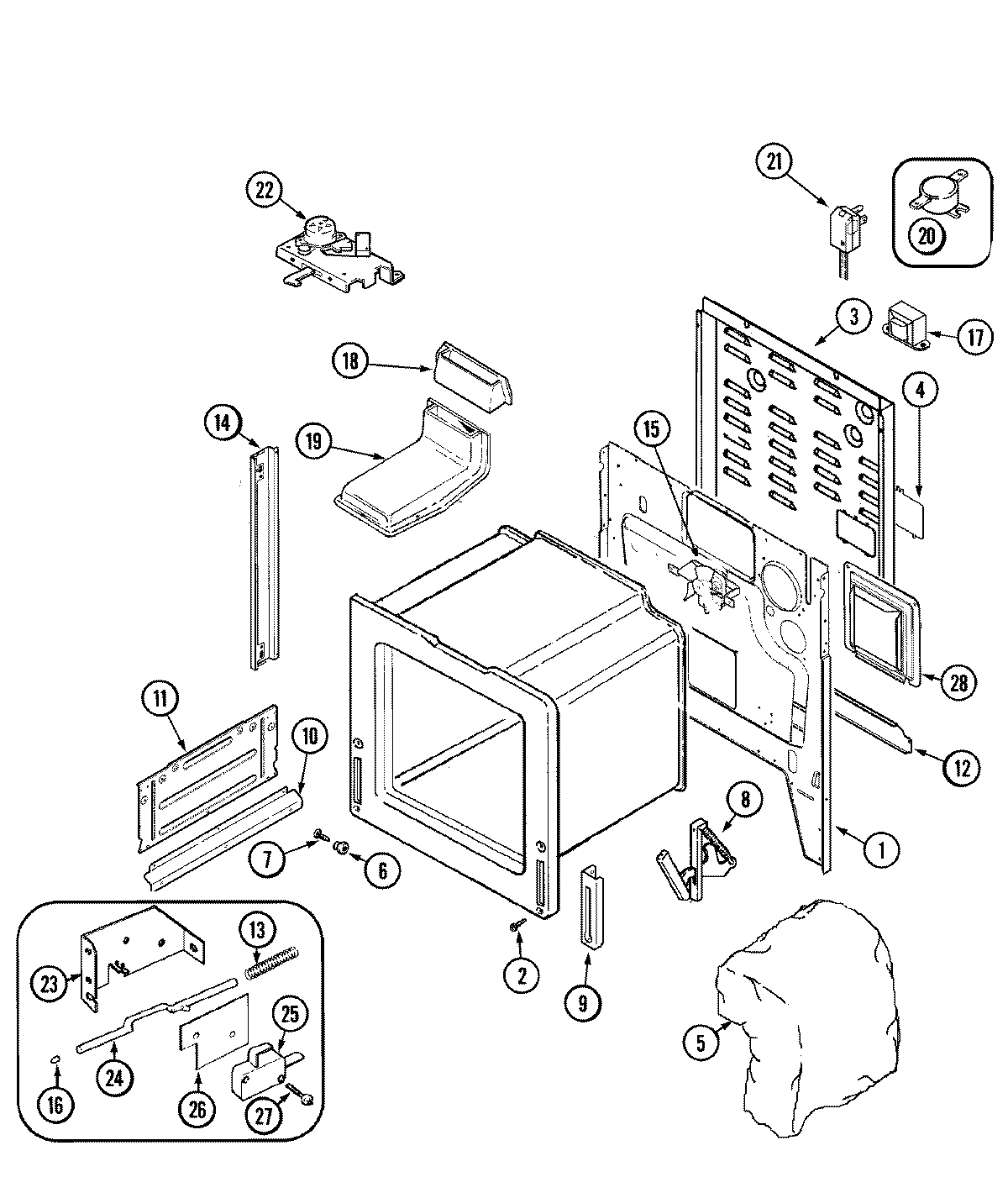

JGS8850ADB 01 – BODY

JGS8850ADB 01 – BODY

Written by

in

JGS8850ADB 01 – BODY

Products

PositionProduct
1MAY 74005721
2SCREW (10-24X5/16-NI)
3MAY 74005265
4COVER, TERMINAL BLOCK
5WP74010942 Whirlpool Insulation
5MAY 74005771
6MAY 8004P024-60
7W11693756 Whirlpool Screw Assembly
874011142 Whirlpool Stove Range Oven Door Hinge and Spring
9MAY 74004173
10MAY 74005728
10MAY 74004176
11MAY 74004177
12MAY 74005722
14MAY 74004216
15MAY 74004947
16MAY 74001631
17NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17MAY 74005416
18MAY 74005994
18MAY 74004294
19MAY 74002367
19WP74003976 Whirlpool Screw
20MAY 74007220
20MAY 7403P249-60
21MAY 74004438
22MAY 74005675
22MAY 74004327
23BRACKET, SWITCH ACTUATOR
23WPY706189 Whirlpool Stove Screw
24ROD, DOOR LIGHT SWITCH
25MAY 74001802
26MAY 74001872
27MAY 7101P330-60
28SCREW
28MAY 74004348
