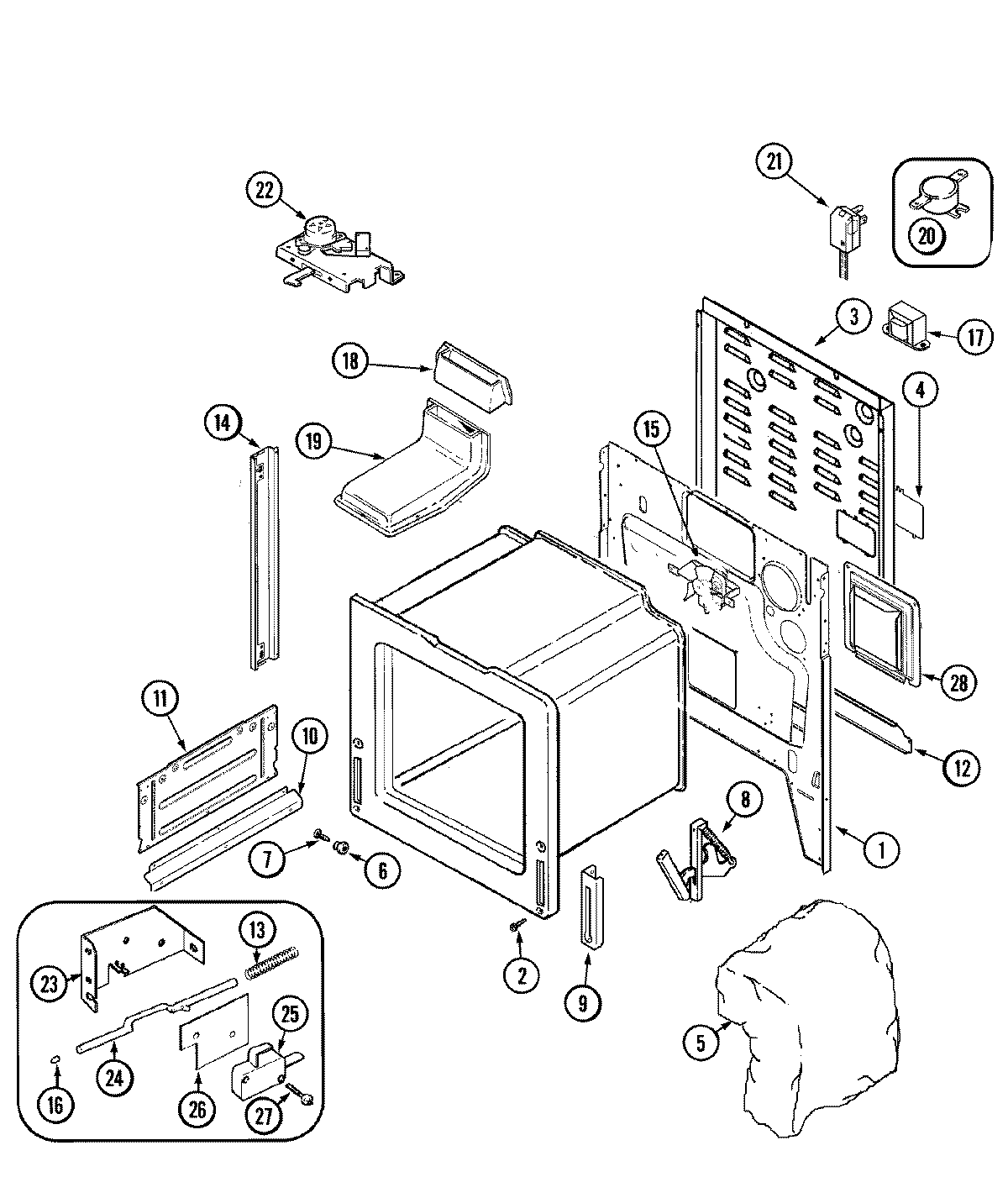

JGS8850ADQ 01 – BODY

Products

Position	Product
1	MAY 74005721
2	SCREW (10-24X5/16-NI)
3	MAY 74005265
4	COVER, TERMINAL BLOCK
5	MAY 74005771
5	WP74010942 Whirlpool Insulation
6	MAY 8004P024-60
7	W11693756 Whirlpool Screw Assembly
8	74011142 Whirlpool Stove Range Oven Door Hinge and Spring
9	MAY 74004173
10	MAY 74004176
10	MAY 74005728
11	MAY 74004177
12	MAY 74005722
14	MAY 74005781
15	MAY 74004947
16	MAY 74001631
17	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY 74005416
18	MAY 74004294
18	MAY 74005994
19	MAY 74002367
19	WP74003976 Whirlpool Screw
20	MAY 74007220
20	MAY 7403P249-60
21	MAY 74004438
22	MAY 74004327
22	MAY 74005675
23	WPY706189 Whirlpool Stove Screw
23	BRACKET, SWITCH ACTUATOR
24	ROD, DOOR LIGHT SWITCH
25	MAY 74001802
26	MAY 74001872
27	MAY 7101P330-60
28	SCREW
28	MAY 74004348
