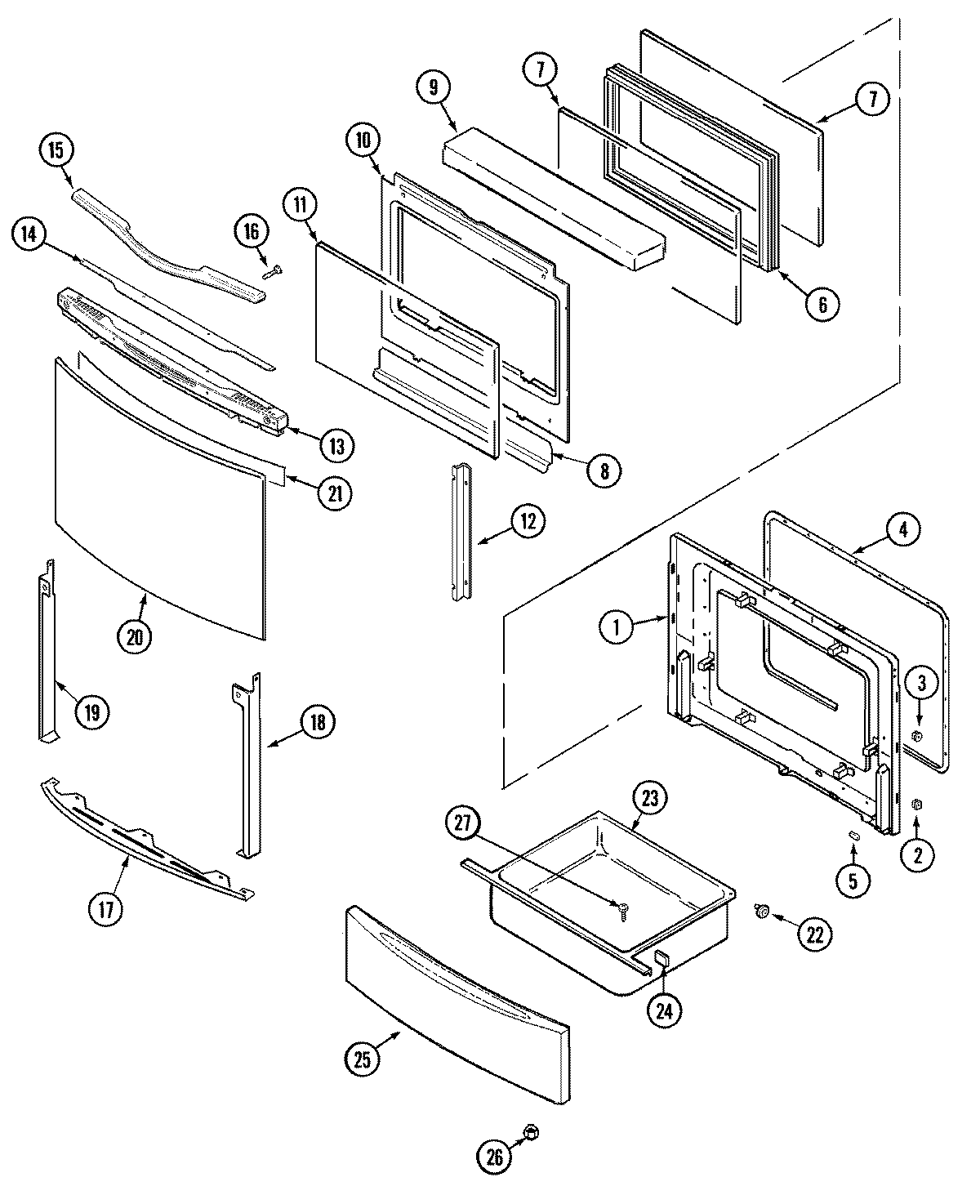

JGS8850ADQ 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74005761
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	MAY 74005774
12	MAY 74003650
13	MAY 74005712
14	MAY 74005711
15	MAY 74005713
16	MAY 71003275
17	MAY 74005763
17	SCREW
18	MAY 74005779
19	WP74009541 Whirlpool Screw Assembly
20	MAY 74005719
21	TAPE, FOIL 29`` X 2``
22	WP488130 Whirlpool Air Conditioner Nut
22	MAY 74003566
22	SHAFT, STORAGE DRAWER ROLLER
23	MAY 71003042
24	WP74005546 Whirlpool RU Spacer
25	MAY 74005775
26	WPW10131078 Whirlpool Nut Assembly
27	WP7101P072-60 Whirlpool Screw
28	MAY 74003639
