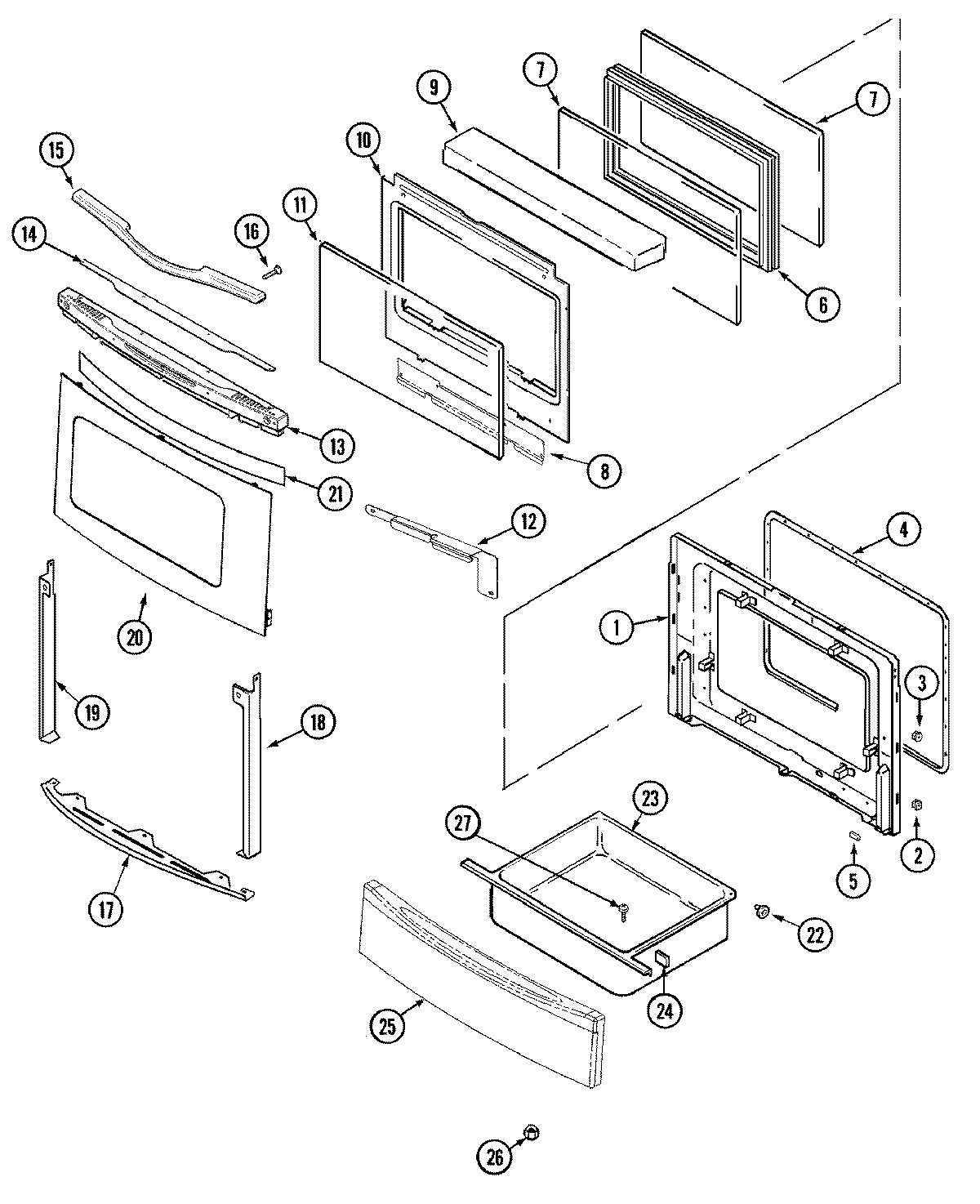

JGS8850ADS 02 – DOOR/DRAWER (STL)

Products

Position	Product
1	MAY 74003642
2	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74007215
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	MAY 74007214
12	MAY 74007206
12	MAY 74001280
12	MAY 74007205
13	MAY 74005700
14	MAY 74005704
14	SCREW (8ABX1/2``-BLK)
15	MAY 74005698
16	MAY 71003275
17	MAY 74005763
17	MAY 74007207
17	SCREW
18	MAY 74005693
19	WP98008545 Whirlpool Screw
19	MAY 74005695
20	MAY 74007211
21	TAPE, FOIL 29`` X 2``
22	WP488130 Whirlpool Air Conditioner Nut
22	MAY 74003566
22	SHAFT, STORAGE DRAWER ROLLER
23	MAY 71003042
24	WP74005546 Whirlpool RU Spacer
25	MAY 74007210
26	WPW10131078 Whirlpool Nut Assembly
27	WP7101P072-60 Whirlpool Screw
