JGS8850BDQ 06 – OVEN/BASE

JGS8850BDQ 06 – OVEN/BASE

Written by

in

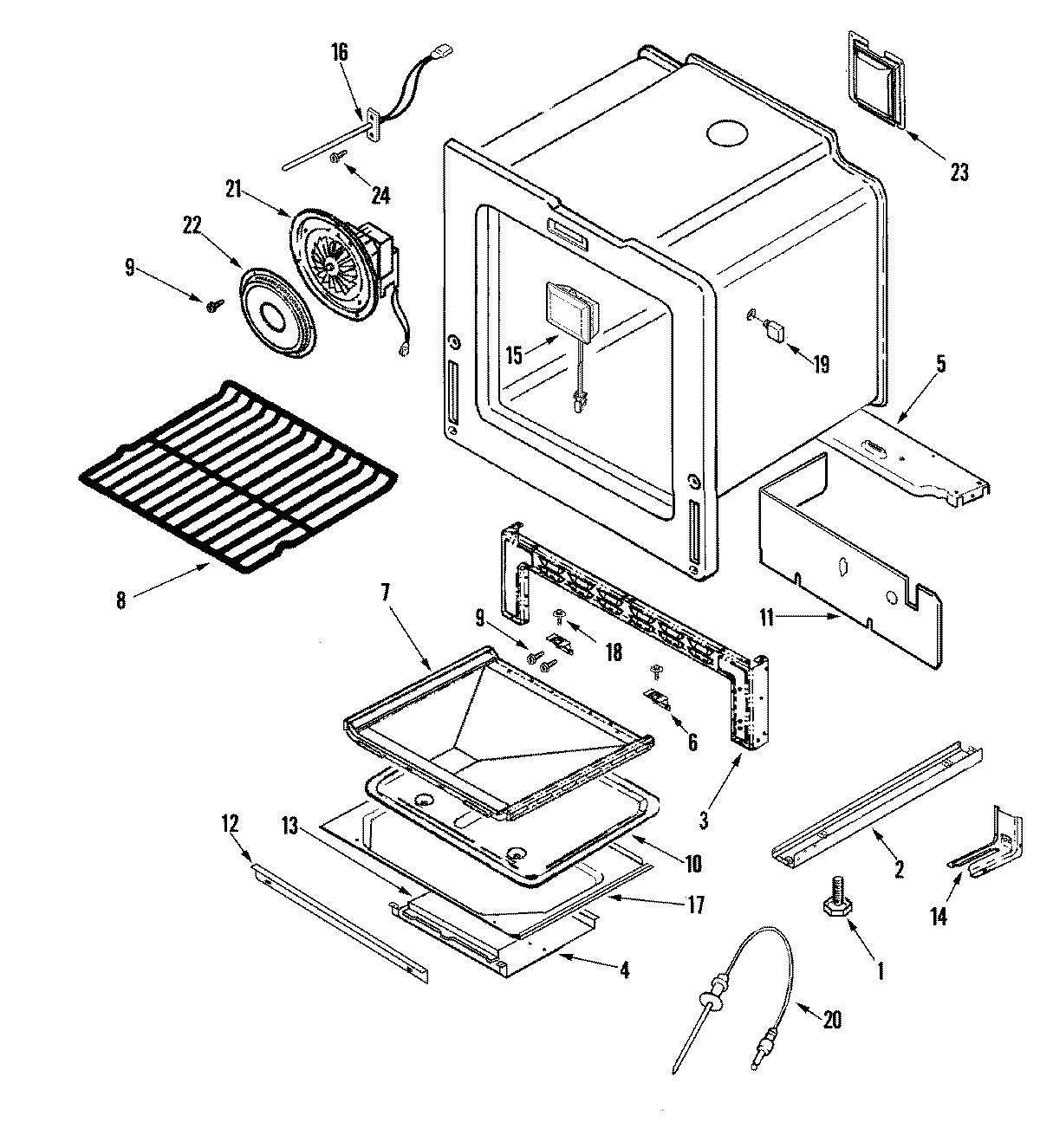

JGS8850BDQ 06 – OVEN/BASE

Products

PositionProduct
1WP74010805 Whirlpool Screw
24020W035-80 Whirlpool Bottom PE
3PEDESTAL, FRONT
4MAY 74006591
5SUPPORT, VALVE REGULATOR
6MAY 74010812
7WP2205F054-19 Whirlpool Oven Bottom
8WPW10282492 Whirlpool Oven Rack
10PAN, BAKE BURNER
11MAY 74006679
12BAFFLE, OVEN FRONT
13MAY 74006574
14WP3801F656-51 Whirlpool Range Anti-Tip Bracket
15MAY 74011220
1612001655 Whirlpool Oven Sensor
17RETAINER, BOTTOM INSULATION
17INSULATION, OVEN BOTTOM
19WP7408P086-60 Whirlpool Receptacle
20WP7430P038-60 Whirlpool Meat Probe Sensor
21MAY 74010902
22MAY 74011822
23MAY 74010814
24WP74003976 Whirlpool Screw
