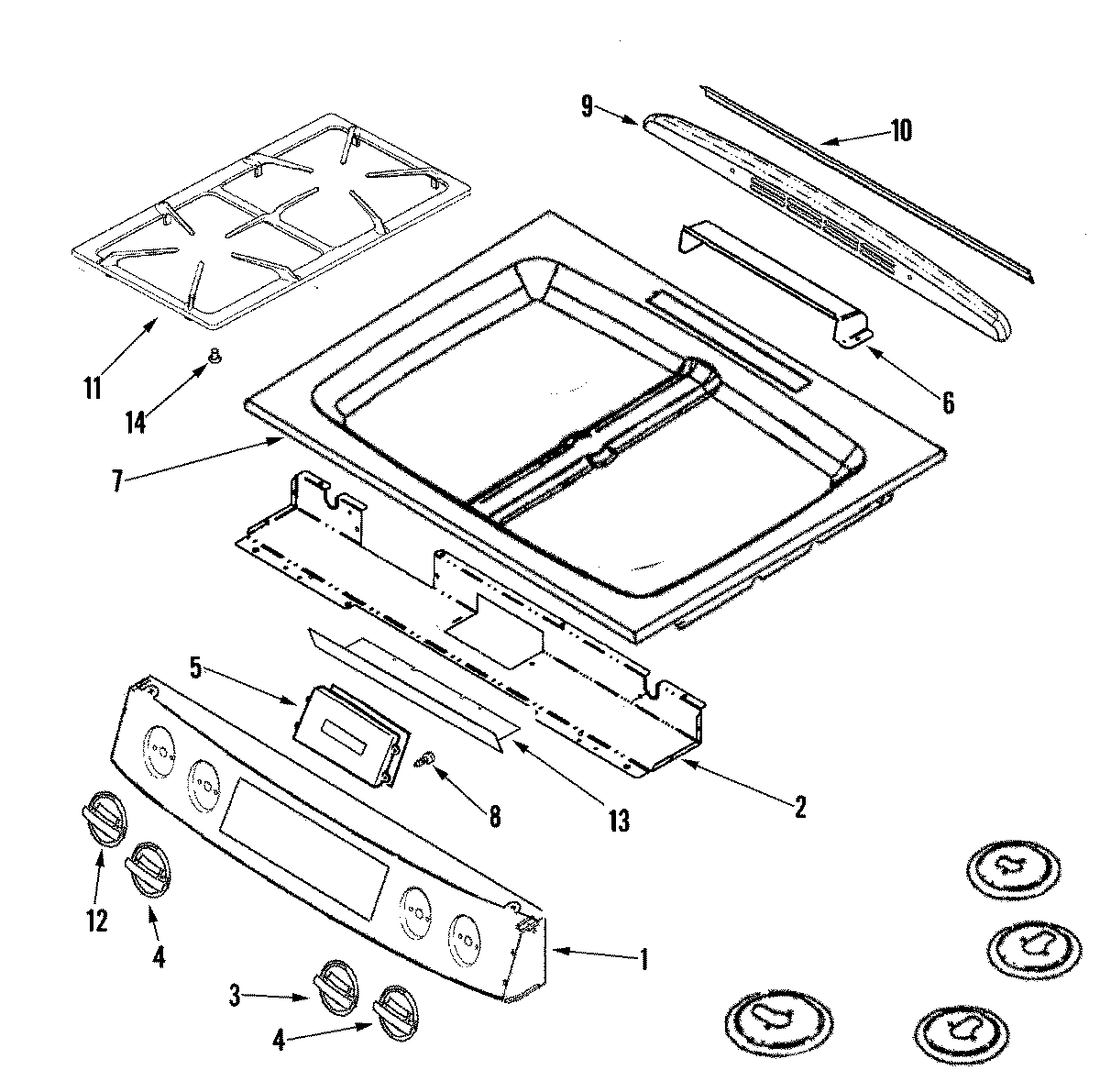

JGS8850BDS 02 – CONTROL PANEL/TOP ASSEMBLY

JGS8850BDS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

JGS8850BDS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1WPW10206089 Whirlpool Control Panel
2MAY 74011824
3WP74011664 Whirlpool Burner Knob
4WP74011666 Whirlpool Burner Knob
5WP8507P228-60 Whirlpool Electronic Control Board
6BAFFLE,VENT COVER
7MAY 74011602
8WP74004005 Whirlpool Screw
9MAY 74011826
10MAY 7201P061-60
12WP74011665 Whirlpool Burner Knob
13MAY 74011825
14MAY M0275597
14W10919249 Whirlpool Burner Grate Foot
