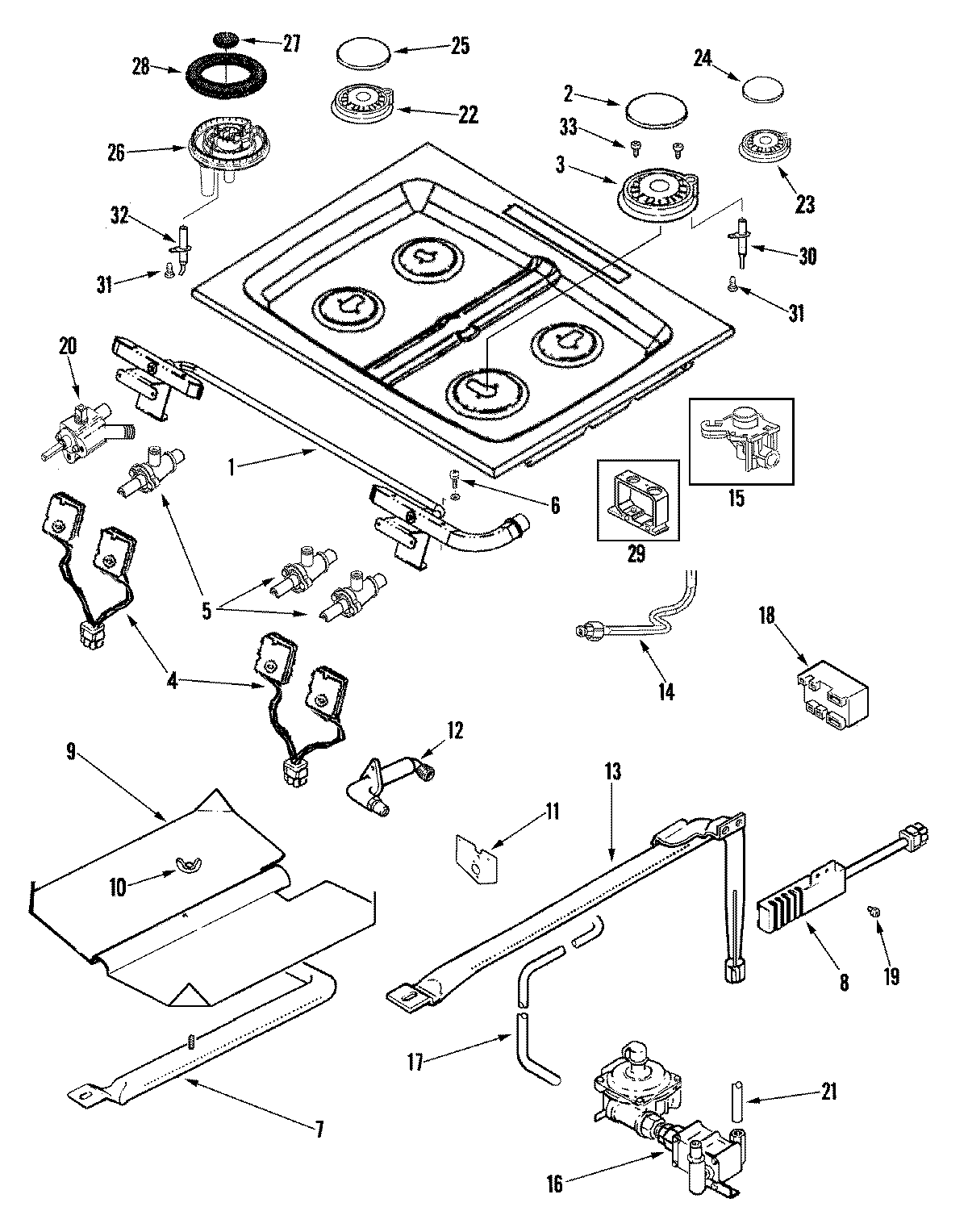

JGS8850BDS 05 – GAS CONTROLS

Products

Position	Product
1	MAY 74011659
2	CAP, BURNER (EX-LRG/BLK)
3	74007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
4	WP74011648 Whirlpool Harsh Switch
4	WP74011647 Whirlpool HAR Switch
5	MAY 74009451
5	MAY 74009452
5	12002270 Whirlpool Valve Kit and Screw 16K
6	MAY 74009416
7	MAY 74004076
8	74007498 Whirlpool Range Flat Igniter
9	MAY 74009231
10	NUT, WING
11	MAY 74004307
12	MAY 74010901
13	MAY 74003960
13	MAY 3807F446-45
14	MAY 74011657
14	MAY 74011656
14	MAY 74011653
14	MAY 74011655
14	MAY 74011654
15	74009553 Whirlpool Orifice Holder
15	WP7527P002-60 Whirlpool Orifice Holder
15	WP7527P004-60 Whirlpool Orifice Holder
16	MAY W10130932
17	MAY 74004408
18	WPW10475147 Whirlpool Spark Module
19	SCREW (10-24X5/16-NI)
20	WP74011649 Whirlpool Burner Valve
21	MAY 74011658
22	74007735 Whirlpool Burner Assembly
23	74007734 Whirlpool Burner Assembly
24	WP8284669 Whirlpool Burner Cap
25	Cap, Burner (12.5K RF, LR)
26	MAY 74011652
27	MAY 74011650
28	MAY 74011651
29	WP7527P061-60 Whirlpool Orifice Holder
30	WP74009336 Whirlpool Oven Top Igniter
31	WP8273062 Whirlpool Screw
32	WP74011829 Whirlpool Burner Igniter Dual
33	WP400021-1 Whirlpool Screw
