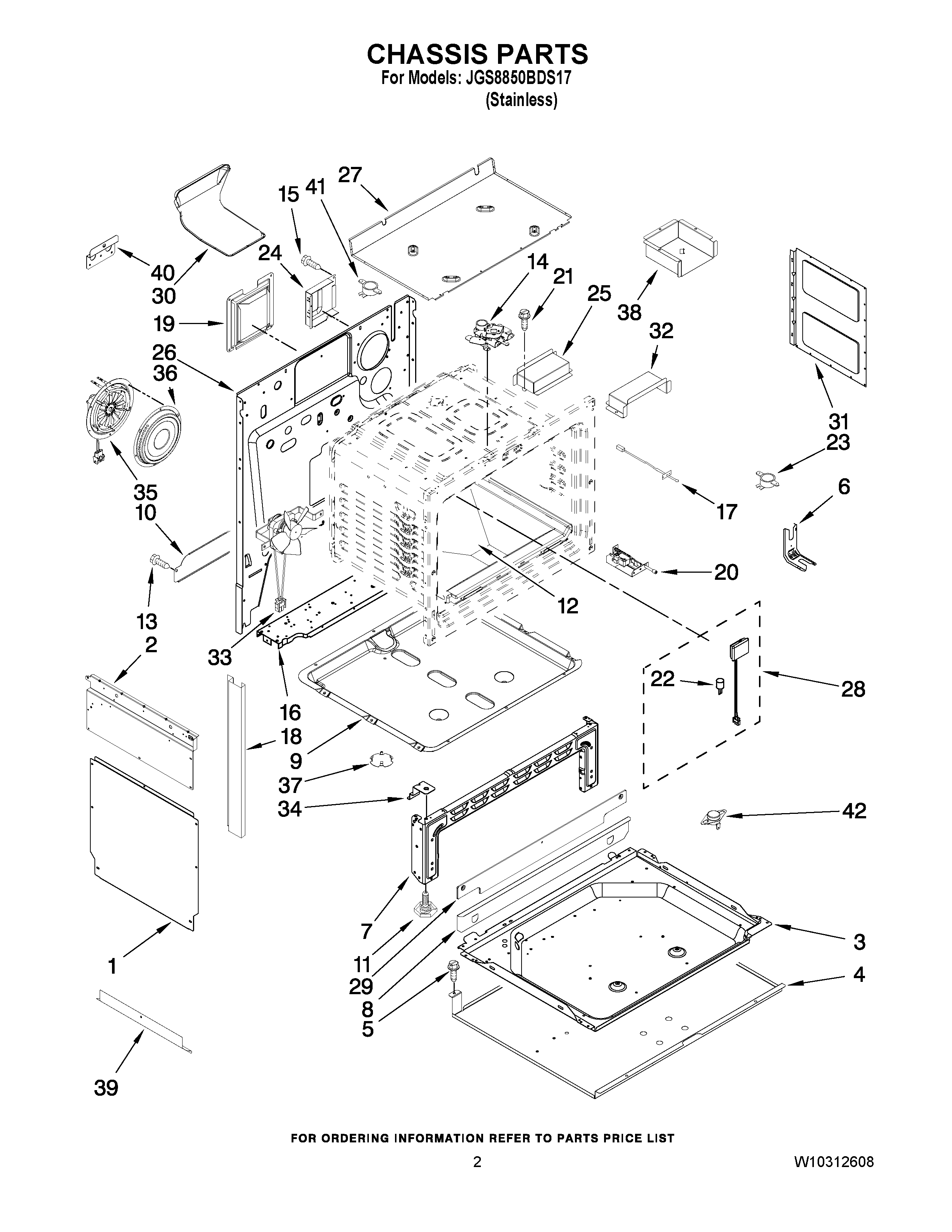

JGS8850BDS17 02 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P471-60
NI	INSULATION, OVEN BOTTOM
NI	MAY 7002P445-60
NI	INSULATION, DRAWER & SHIELD
NI	MAY 7002P474-60
NI	MAY 7002P451-60
1	MAY 3604F416-51
2	MAY 2618F201-51
2	MAY 2618F206-51
4	SHIELD, WARM. DWR.
5	MAY 7101P376-60
6	BRACKET, ANTI-TIP
7	PEDESTAL, FRONT
8	MAY 3601F251-45
9	MAY 3401F044-45
10	MAY 3826F066-51
11	LEG, LEVELING
12	MAY 2205F054-19
13	SCREW, HINGE
14	MAY 8002P089-60
15	Screw (Black) (2)
16	SUPPORT
17	Sensor, Oven
18	TRIM, SIDE (BLACK (2))
19	RETAINER, CONV INSULATION
20	ASSY., LIGHT SW
21	MAY 7101P434-60
22	BULB, OVEN
23	MAY 7450P030-60
24	COVER, MAIN WIRE
26	BACK, MAIN
27	MAY 4011F496-51
28	MAY 7407P180-60
29	TRIM, FRONT FRAME
30	MAY 8026P095-60
31	INSULATION
32	COVER, DOOR LATCH
33	MAY 7427P094-60
34	SUPPORT, OVEN BTM.
35	MAY W10206590
36	COVER, FAN
37	MAY 7718P034-60
38	COVER, BURNER BOX (DUAL RING)
39	EXT., HEAT SHIELD
40	SUPPORT, ELEMENT
41	MAY 7403P647-60
42	MAY 7403P657-60
