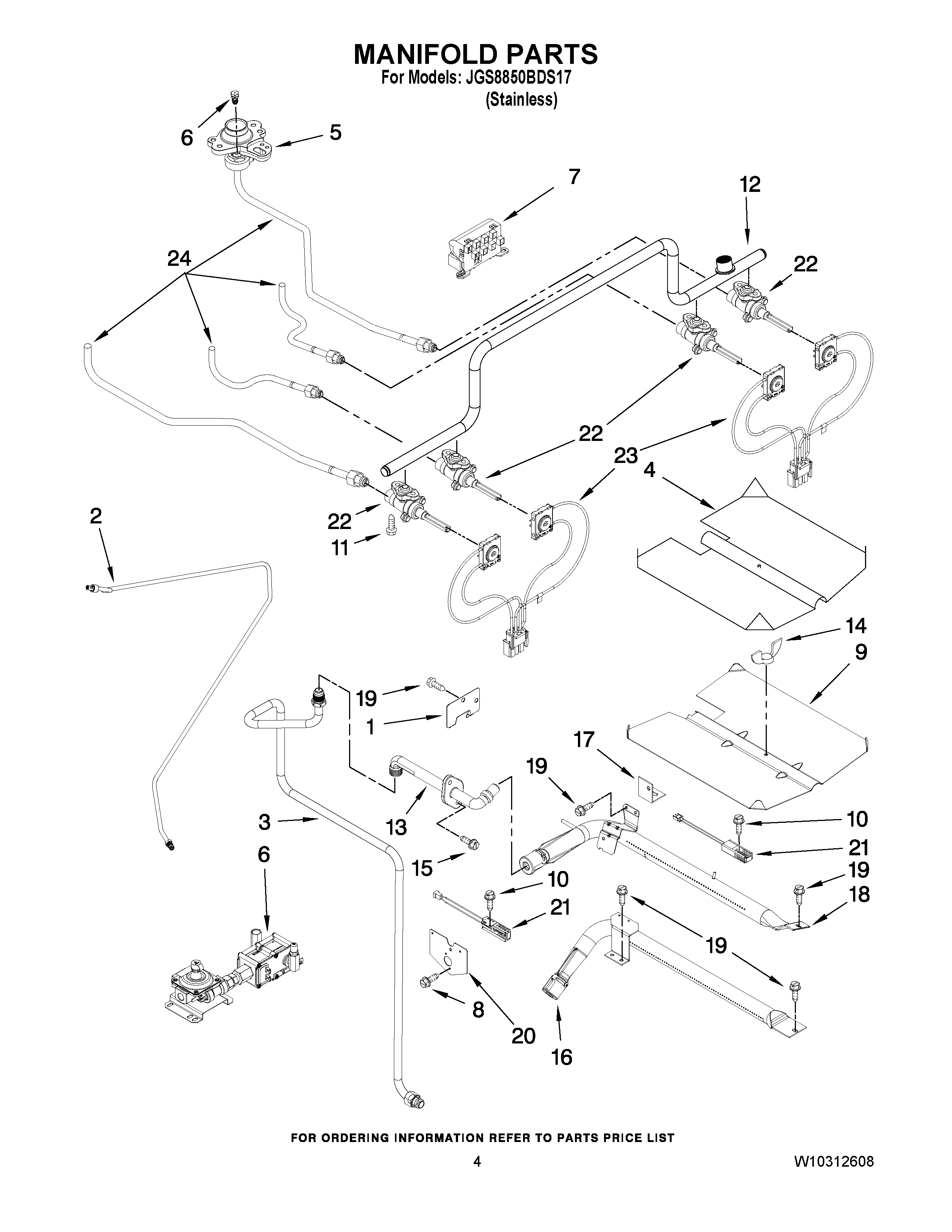

JGS8850BDS17 03 – MANIFOLD PARTS

Products

Position	Product
NI	MAY 7507P418-60
1	MAY 4005F421-45
2	MAY 7506P489-60
3	TUBING, BROILER
4	BAFFLE, BAKE (BROIL)
5	HOLDER, ORIFICE (LR)
5	ORIFICE, HOLDER (DUAL BURNER, LF)
5	HOLDER, ORIFICE (CTR)
5	HOLDER, ORIFICE (LF, RR)
6	VAVLE, SAFETY
7	MAY 7431P038-60
8	SCREW (2)
9	BAFFLE, OVEN BOTTOM
10	SCREW (10-24X5/16-NI)
11	SCREW (8BX3/8-NI)
12	MAY 7513P473-60
13	MAY 7507P407-60
14	NUT, WING
15	MAY 7101P676-60
16	MAY 7505P254-60
17	MAY 3807F480-45
18	MAY 7505P293-60
19	MAY 7101P434-60
20	MAY 3605F269-45
21	IGNITOR, OVEN
22	MAY 7502P548-60
22	VALVE, TOP BURNER (LR 5K)
22	VALVE, TOP BURNER (LF (DUAL))
22	VALVE, TOP BURNER (RR/LF 9.2K)
23	HARNESS, VALVE (RF/RR)
23	HARNESS, VALVE (LF/LR)
24	MAY 7506P447-60
24	MAY 7506P448-60
24	MAY 7506P469-60
24	MAY 7506P470-60
24	MAY 7506P445-60
