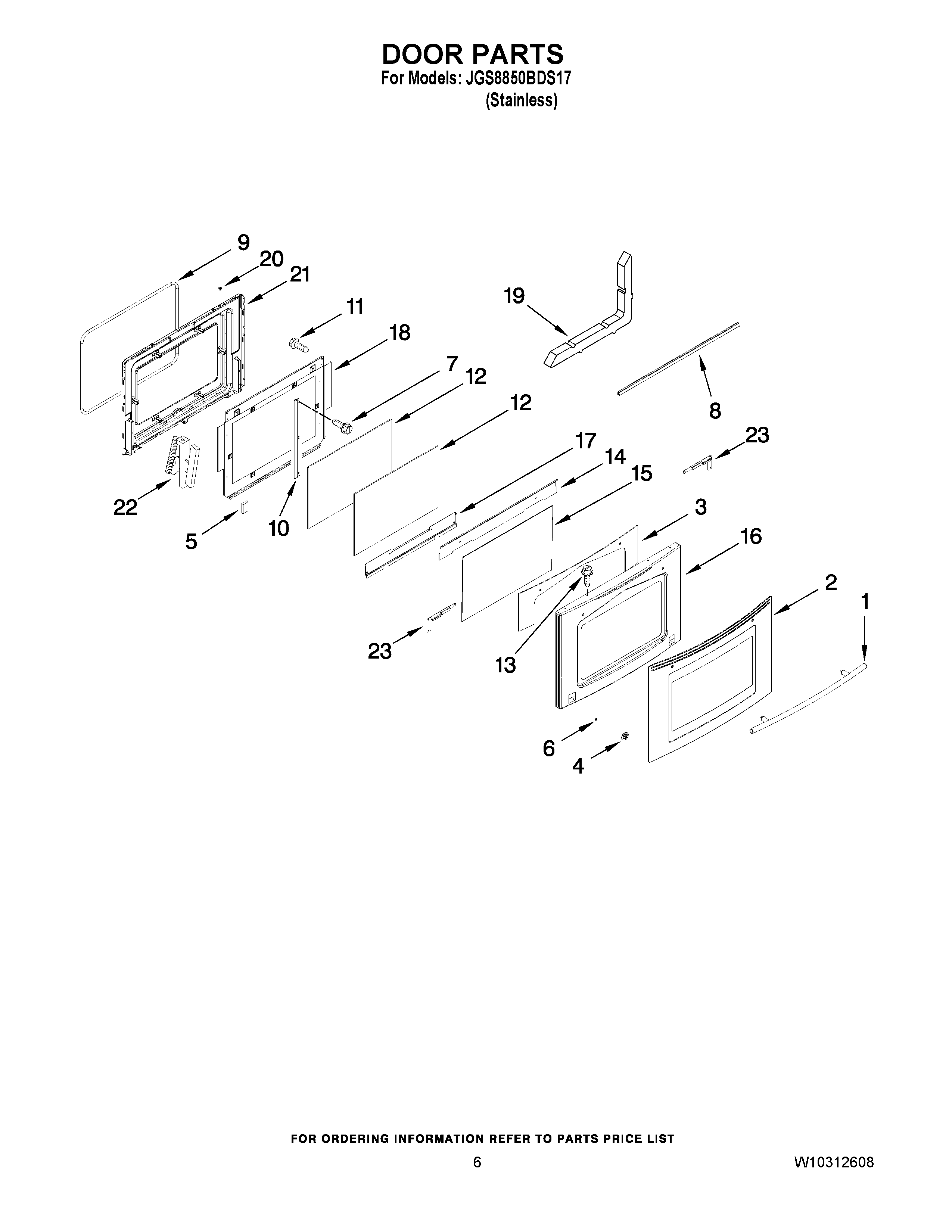

JGS8850BDS17 04 – DOOR PARTS
Written by
in
JGS8850BDS17 04 – DOOR PARTS
Products
Position
Product
1
MAY 7701P473-60
2
FRAME, DOOR (STAINLESS)
3
MAY 7002P465-60
5
MAY 7109P082-60
6
MAY 7103P176-60
7
MAY 7101P426- 60
8
GASKET, DOOR TOP
9
MAY W10162384
10
BRACKET, INNER GLASS
11
MAY 7101P376-60
12
Glass, Inner
13
Screw (2) (Black)
14
MAY 3604F418-51
15
GLASS, INNER COATED
16
MAY 3603F075-70
17
RETAINER, GLASS (LOWER)
18
MAY 3601F373-51
19
MAY 7002P246-60
20
MAY 7103P141-60
21
MAY 2402W312-19
22
Hinge, Door (2)
23
MAY 3804F307-51
23
MAY 3804F308-51
←
