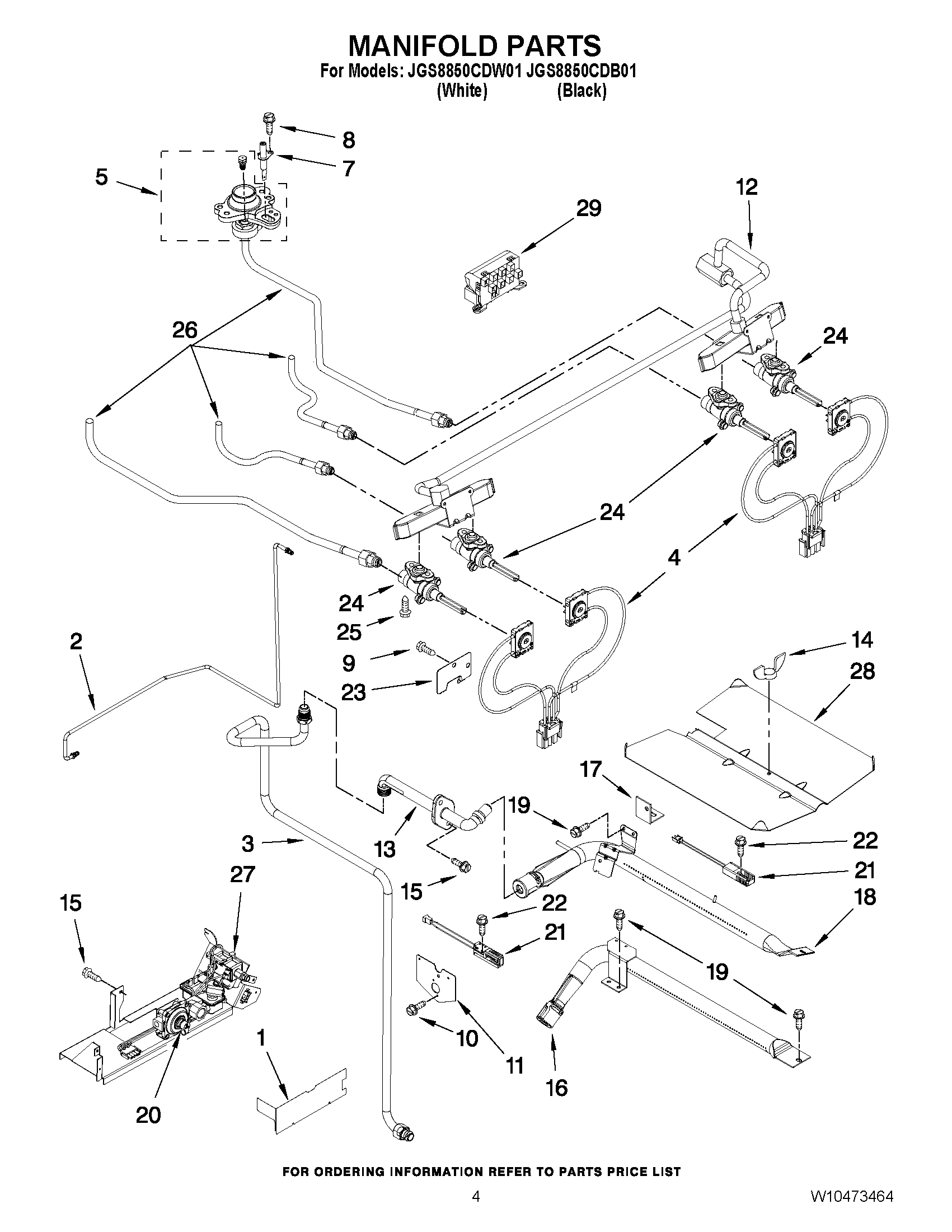

JGS8850CDB01 03 – MANIFOLD PARTS

JGS8850CDB01 03 – MANIFOLD PARTS

Written by

in

JGS8850CDB01 03 – MANIFOLD PARTS

Products

PositionProduct
NIMAY W10258120
1MAY 4005F638-51
2MAY 7506P489-60
3MAY 7506P536-60
4HARNESS, VALVE (LF/LR)
4HARNESS, VALVE (RF/RR)
5HOLDER, ORIFICE (LF, RR)
5HOLDER, ORIFICE (CTR)
5ORIFICE, HOLDER (DUAL BURNER, LF)
5HOLDER, ORIFICE (LR)
7IGNITOR
8MAY 7101P606-60
9MAY 7101P434-60
10SCREW (2)
11MAY 3605F269-45
12MAY 7513P473-60
13MAY 7507P407-60
14NUT, WING
15MAY 7101P676-60
16MAY 7505P254-60
17MAY 3807F480-45
18MAY 7505P293-60
19SCREW, 10AB X 1/2
20MAY 7510P079-60
21IGNITOR, OVEN
22SCREW (10-24X5/16-NI)
23MAY 4005F421-45
24MAY 7502P548-60
24VALVE, TOP BURNER (RR/LF 9.2K)
24VALVE, TOP BURNER (LR 5K)
24VALVE, TOP BURNER (LF (DUAL))
25SCREW
26MAY 7506P445-60
26MAY 7506P447-60
26MAY 7506P448-60
26MAY 7506P469-60
26MAY 7506P470-60
27MAY 7501P232-60
28BAFFLE, OVEN BOTTOM
28BAFFLE, BAKE (BROIL)
29MAY 7431P038-60
