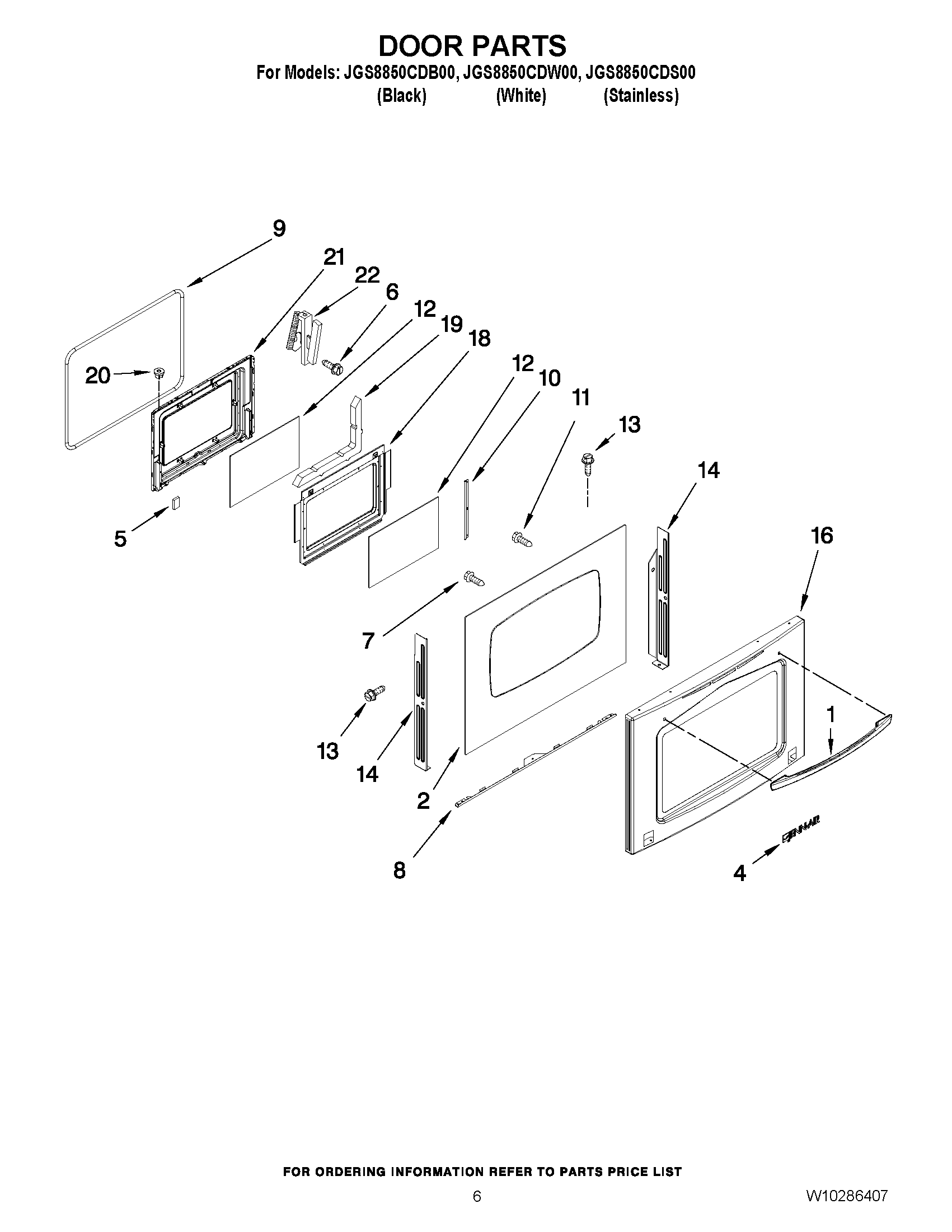

JGS8850CDS00 04 – DOOR PARTS

JGS8850CDS00 04 – DOOR PARTS

Written by

in

JGS8850CDS00 04 – DOOR PARTS

Products

Position	Product
1	MAY W10223463
1	MAY W10223152
1	MAY W10223164
2	MAY W10204432
2	MAY W10202584
2	COOKTOP (STAINLESS)
4	ASSEMBLY, BADGE (WHITE)
4	ASSEMBLY, BADGE (BLACK)
4	ASSEMBLY, BADGE (STAINLESS)
5	MAY 7109P082-60
6	MAY 7103P176-60
7	MAY 7101P426- 60
8	MAY 8020P074-60
9	MAY W10162384
10	BRACKET, INNER GLASS
11	MAY 7101P376-60
12	Glass, Inner
13	Screw (2) (Black)
14	MAY 3608F138-71
14	TRIM, SIDE (BLACK (2))
16	MAY 3603F075-70
16	MAY 3603F075-71
18	MAY 3601F373-51
19	MAY 7002P246-60
20	MAY 7103P141-60
20	NUT, SNAP (ROUND-WHT)
21	MAY 2402W312-19
22	Hinge, Door (2)
