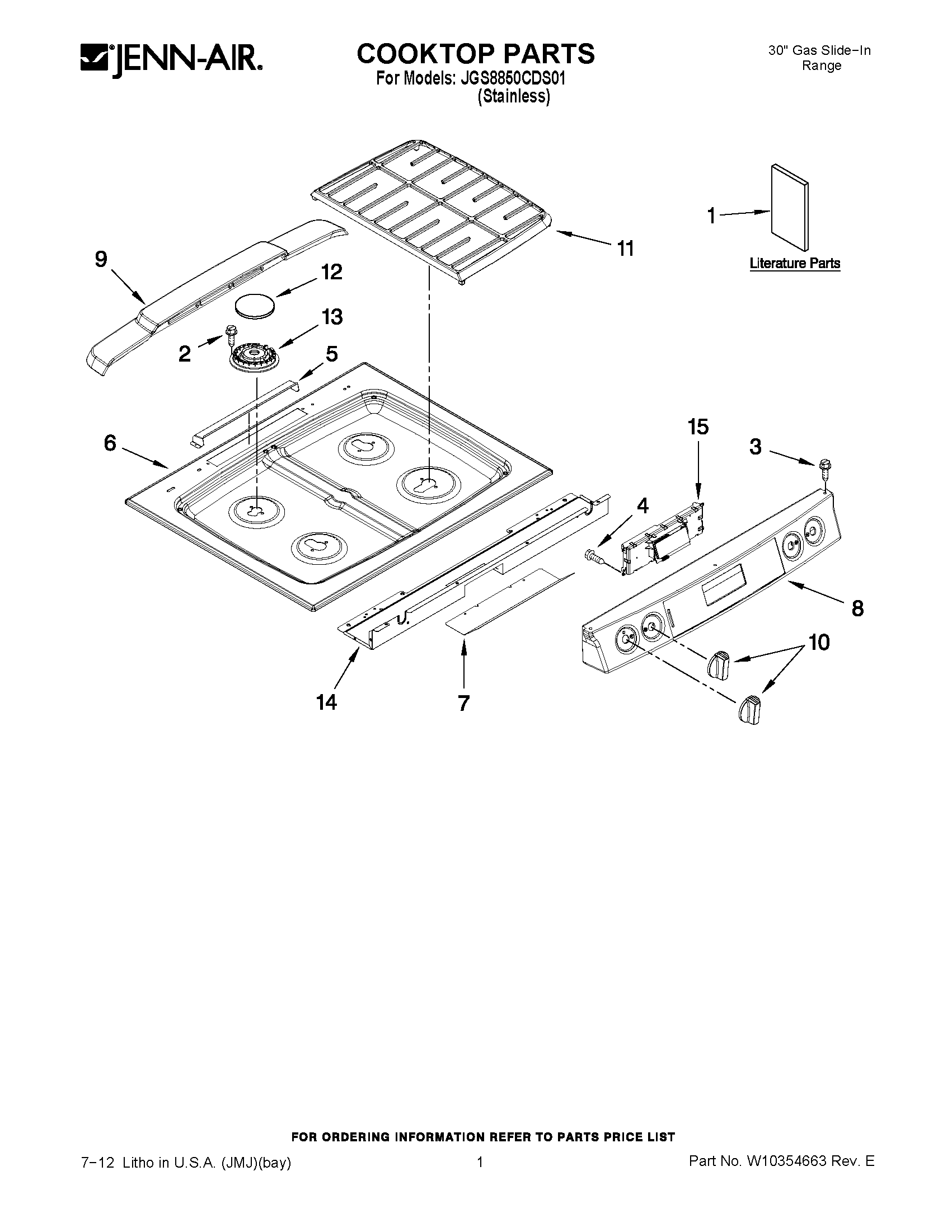

JGS8850CDS01 01 – COOKTOP PARTSadmin2025-04-26T09:21:00+00:00JGS8850CDS01 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10253459 |
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | WIRING DIAGRAM BROCHURE, TIPS |
| 1 | MAY W10235526 |
| 2 | MAY 7101P606-60 |
| 3 | MAY 7101P635-60 |
| 4 | WP59002061 Whirlpool Microwave Screw |
| 5 | BAFFLE,VENT COVER |
| 6 | COOKTOP (STAINLESS) |
| 7 | SHIELD, CONTROL |
| 8 | MAY W10314414 |
| 9 | MAY 7724P200-60 |
| 10 | KNOB, VALVE (STAINLESS) |
| 11 | MAY 7518P358-60 |
| 12 | CAP, BURNER (DUAL INNER) |
| 12 | CAP, BURNER (LR & RF) |
| 12 | CAP, BURNER (LF & RR) |
| 12 | CAP, BURNER (CTR) |
| 13 | HEAD, BURNER (LR & RF) |
| 13 | HEAD, BURNER (CTR) |
| 13 | HEAD, BURNER (LF & RR) |
| 13 | BASE, BURNER (DUAL BURNER, LF) |
| 13 | CAP, BURNER (DUAL OUTER) |
| 14 | MAY 3807F751-51 |
| 15 | CONTROL, (EOC) |
