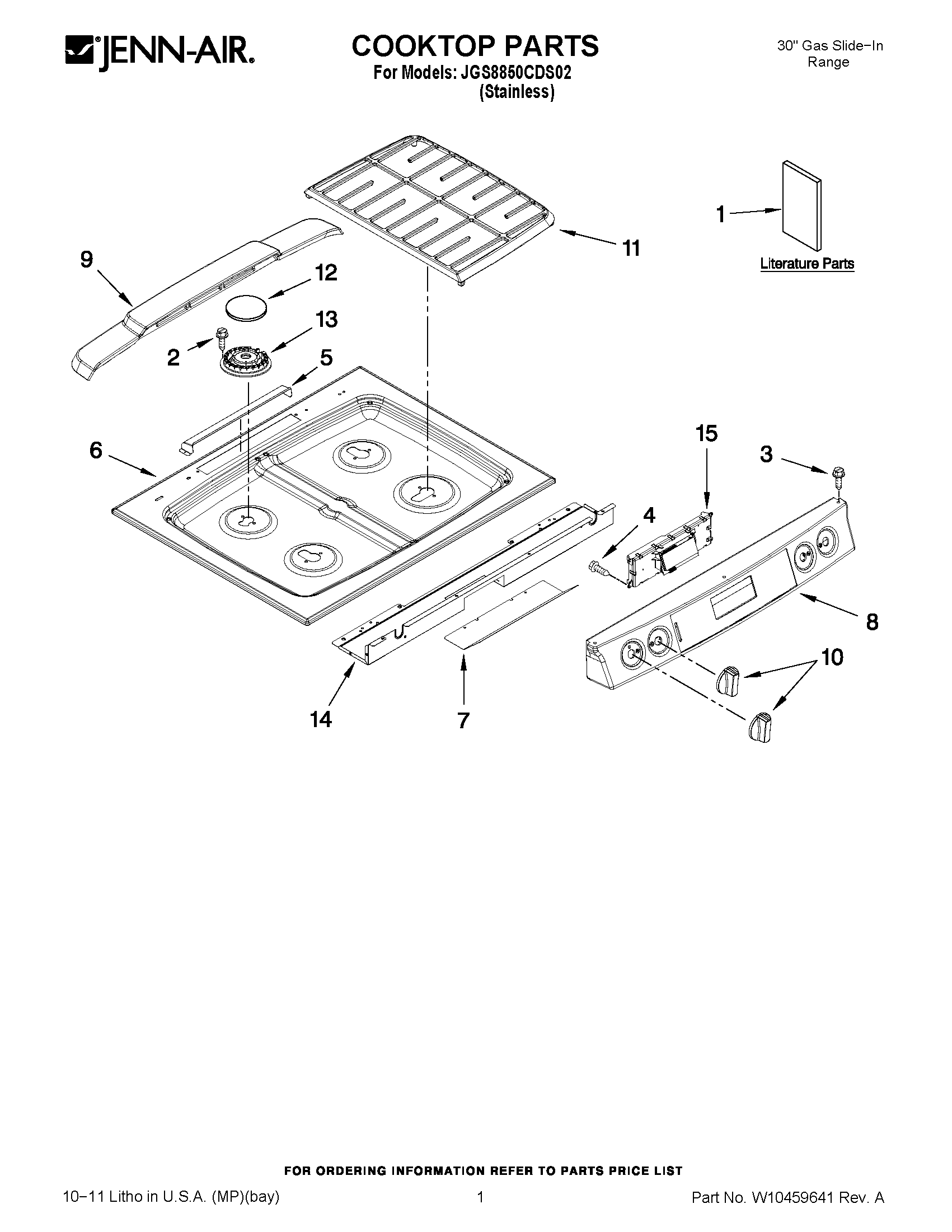

JGS8850CDS02 01 – COOKTOP PARTS

JGS8850CDS02 01 – COOKTOP PARTS

Written by

in

JGS8850CDS02 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10253459
1MAY W10235526
1MAY W10394691
2MAY 7101P606-60
3MAY 7101P635-60
4WP59002061 Whirlpool Microwave Screw
5BAFFLE,VENT COVER
6COOKTOP (STAINLESS)
7SHIELD, CONTROL
8MAY W10314414
9MAY 7724P200-60
10KNOB, VALVE (STAINLESS)
11MAY 7518P358-60
12CAP, BURNER (LR & RF)
12CAP, BURNER (LF & RR)
12CAP, BURNER (DUAL OUTER)
12CAP, BURNER (DUAL INNER)
12CAP, BURNER (CTR)
13MAY 7540P038-60
13MAY 7540P037-60
13MAY 7540P036-60
14MAY 3807F751-51
15CONTROL, (EOC)
