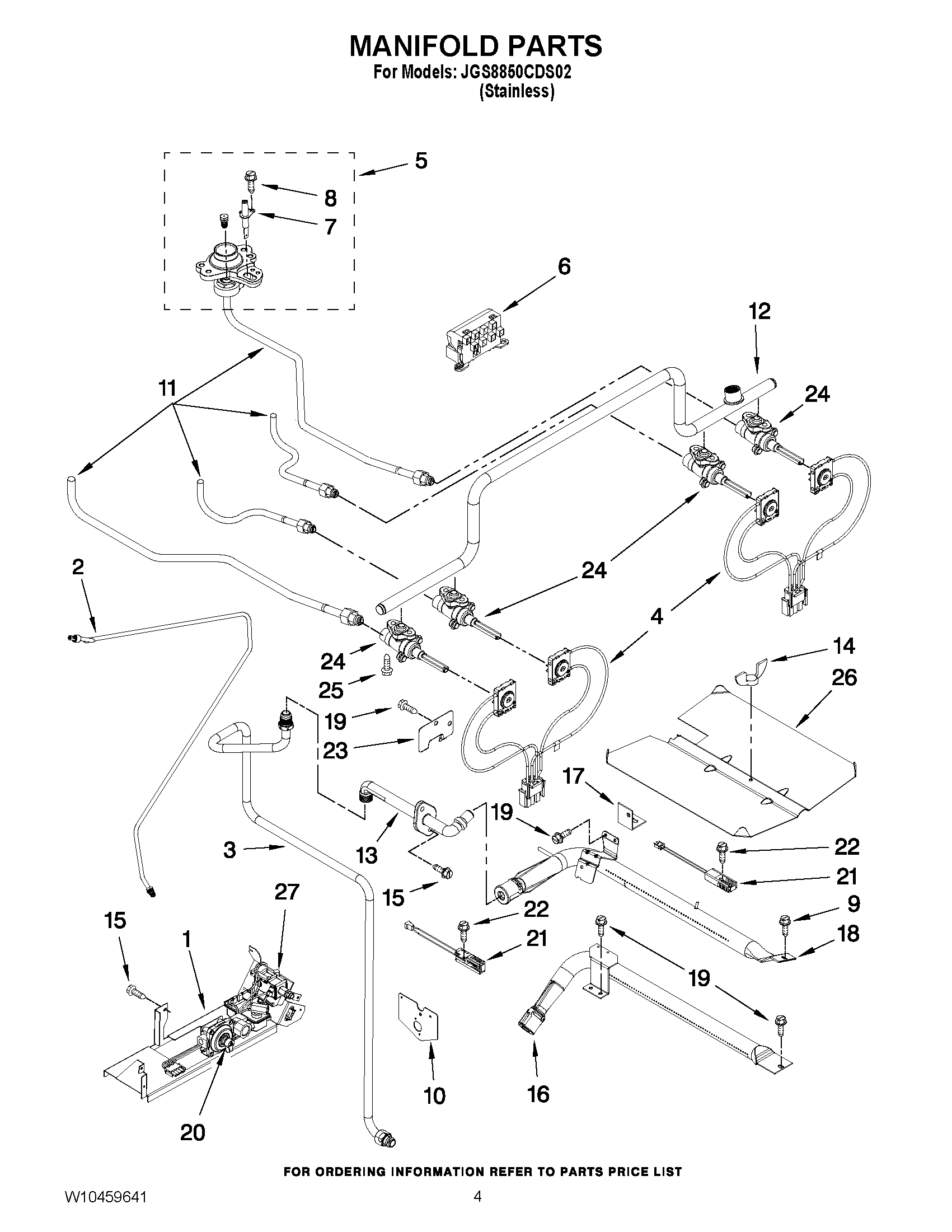

JGS8850CDS02 03 – MANIFOLD PARTS

JGS8850CDS02 03 – MANIFOLD PARTS

Written by

in

JGS8850CDS02 03 – MANIFOLD PARTS

Products

PositionProduct
NIMAY W10258120
1MAY 4005F638-51
2MAY 7506P489-60
3MAY 7506P536-60
4MAY W10160396
4HARNESS, VALVE (LF/LR)
4HARNESS, VALVE (RF/RR)
5HOLDER, ORIFICE (LF, RR)
5HOLDER, ORIFICE (CTR)
5HOLDER, ORIFICE (LR)
6MAY 7431P038-60
7IGNITOR
8MAY 7101P606-60
9SCREW, 10AB X 1/2
10MAY 3605F269-45
11MAY 7506P470-60
11MAY 7506P469-60
11MAY 7506P448-60
11MAY 7506P447-60
11MAY 7506P482-60
11MAY 7506P445-60
12MAY 7513P473-60
13MAY 7507P407-60
14NUT, WING
15MAY 7101P676-60
16MAY 7505P254-60
17MAY 3807F480-45
18MAY 7505P293-60
19MAY 7101P434-60
20MAY 7510P079-60
21IGNITOR, OVEN
22SCREW (10-24X5/16-NI)
23MAY 4005F421-45
24MAY 7502P548-60
24VALVE, TOP BURNER (RR/LF 9.2K)
24VALVE, TOP BURNER (LR 5K)
24VALVE, TOP BURNER (LF (DUAL))
25SCREW (8BX3/8-NI)
26BAFFLE, OVEN BOTTOM
26BAFFLE, BAKE (BROIL)
27MAY 7501P232-60
