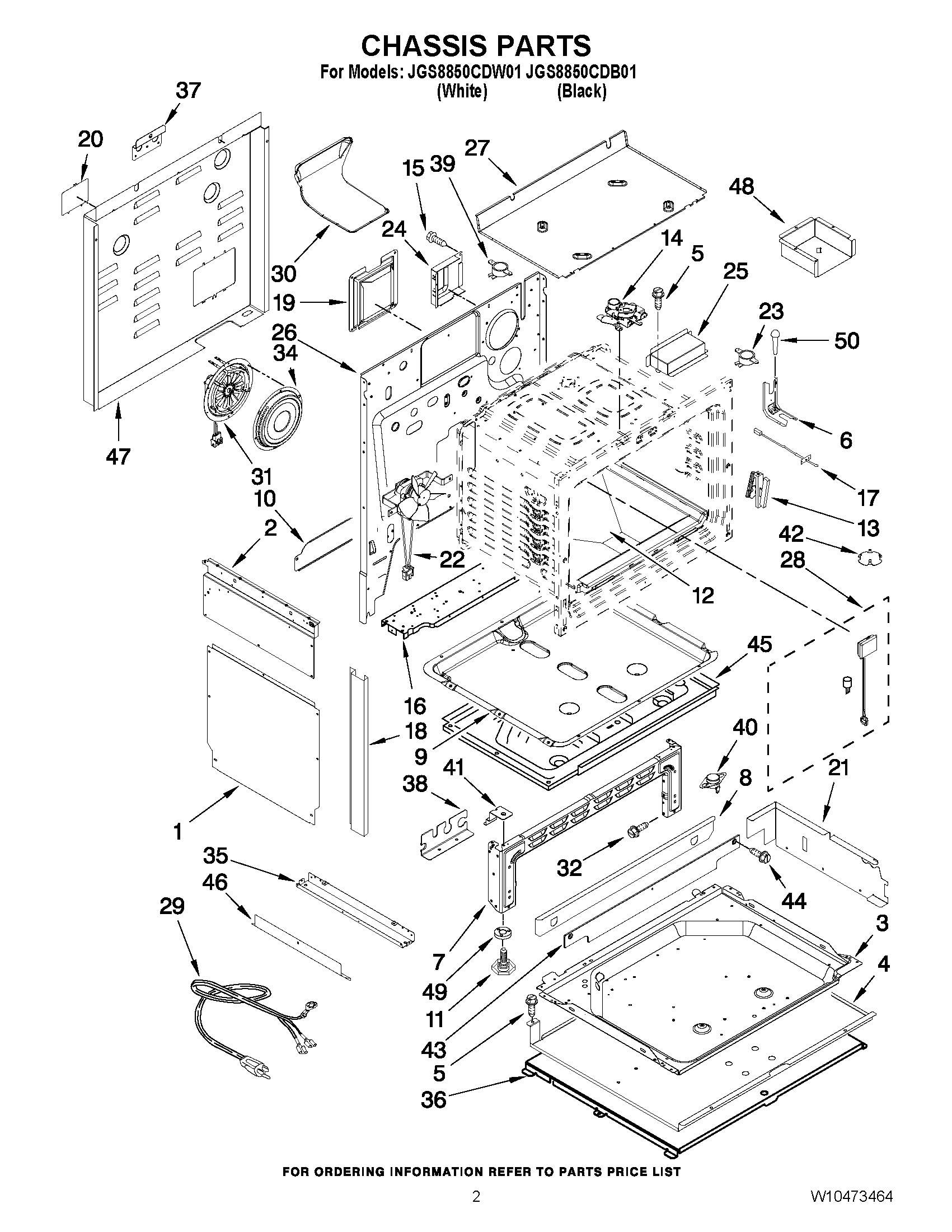

JGS8850CDW01 02 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P445-60
NI	MAY 7002P471-60
NI	INSULATION, DRAWER & SHIELD
NI	INSULATION, OVEN BOTTOM
NI	MAY 7002P451-60
NI	MAY 7002P474-60
1	MAY 3604F416-51
2	MAY 2618F206-51
2	MAY 2618F201-51
4	SHIELD, WARM. DWR.
5	MAY 7101P426- 60
6	BRACKET, ANTI-TIP
7	PEDESTAL, FRONT
8	MAY 3601F251-45
9	MAY 3401F044-45
10	MAY 3826F066-51
11	LEG, LEVELING
12	MAY 2205F054-19
13	Hinge, Door (2)
14	LATCH ASSEMBLY
15	Screw (Black) (2)
16	SUPPORT
17	Sensor, Oven
18	MAY 3608F138-71
19	INSULATION
20	COVER, TERMINAL
21	MAY W10256425
22	MAY W10317679
23	MAY 7450P030-60
25	COVER, DOOR LATCH
26	BACK, MAIN
27	MAY 4011F496-51
28	MAY 7407P180-60
29	MAY 7402P086-60
30	MAY 8026P095-60
31	MAY W10206590
32	SCREW, HINGE
34	COVER, FAN
35	MAY 4020W035-80
36	MAY 3604F327-51
37	SUPPORT, ELEMENT
38	MAY W10256422
39	MAY 7403P647-60
40	MAY 7403P657-60
41	SUPPORT, OVEN BTM.
42	MAY 7718P034-60
43	TRIM, FRONT FRAME
44	Screw (2) (Black)
45	RETAINER, CONV INSULATION
46	EXT., HEAT SHIELD
47	COVER, MAIN WIRE
48	COVER, BURNER BOX (DUAL RING)
49	NUT, LEVELING LEG
50	SCREW, ANTI-TIP KIT
