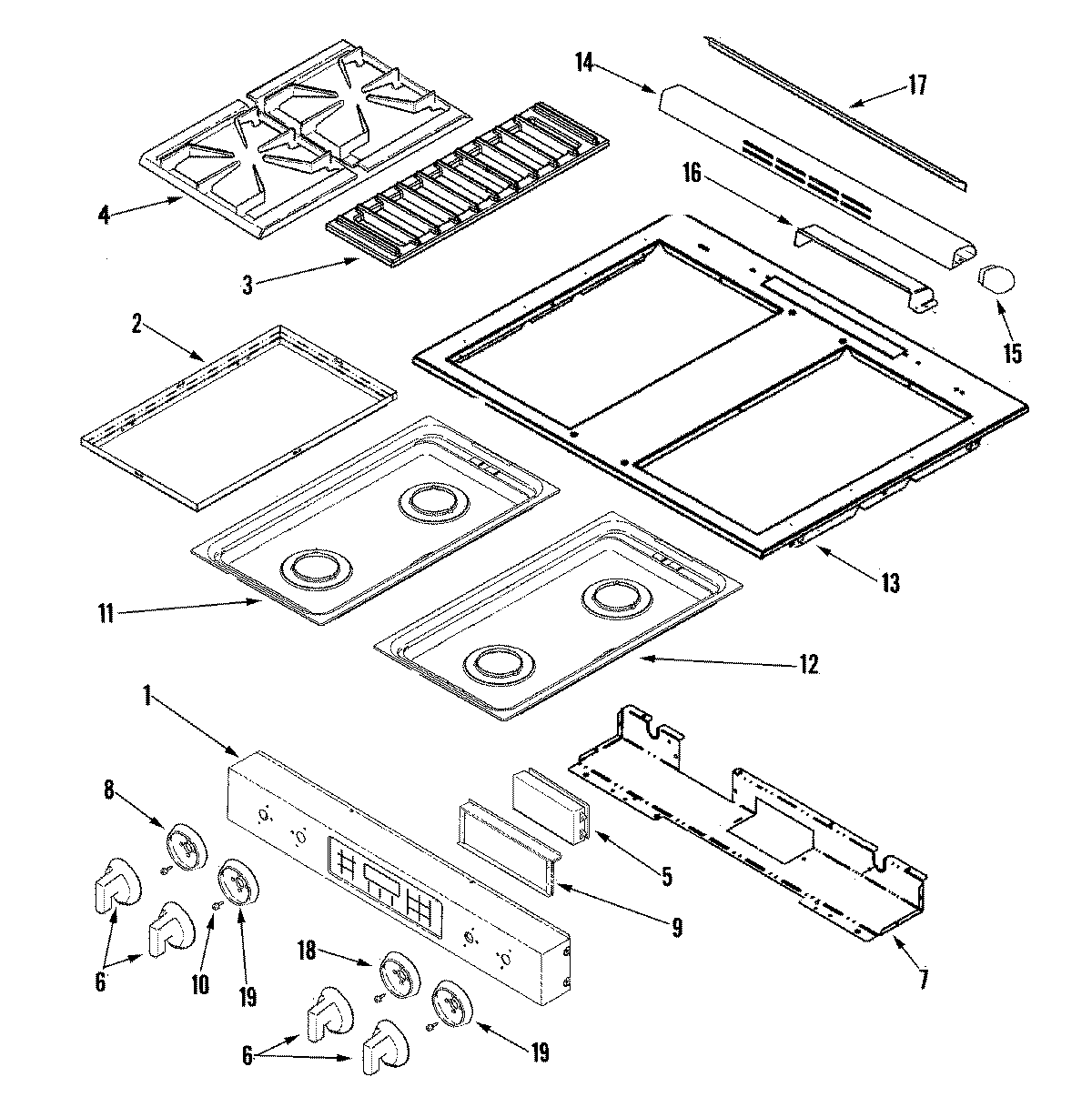

JGS8860BDP 02 – CONTROL PANEL/TOP ASSEMBLY

JGS8860BDP 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

JGS8860BDP 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1WP5760M339-60 Whirlpool Control Panel
2MAY 74011863
3MAY 74011862
4MAY 74011694
5MAY 74011524
5WP8507P229-60 Whirlpool Electronic Control Board
5WP59002061 Whirlpool Microwave Screw
6WPW10175695 Whirlpool Burner Knob
7MAY 74011688
7WP90767 Whirlpool Screw
874011689 Whirlpool Oven Dual Bezel Knob
9MAY 74011525
9SCREW (8BX3/8-NI)
10SCREW (10ABX1/4P TR ZN)
11MAY 74011693
12MAY 74009620
12SCREW
13MAY 74011692
14MAY 74010946
15MAY 74004365
15MAY 74010925
16BAFFLE,VENT COVER
17MAY 7201P061-60
18MAY 74011690
19MAY 74011691
