JGS8860BDP 04 – DOOR (SER PRE 11)

JGS8860BDP 04 – DOOR (SER PRE 11)

Written by

in

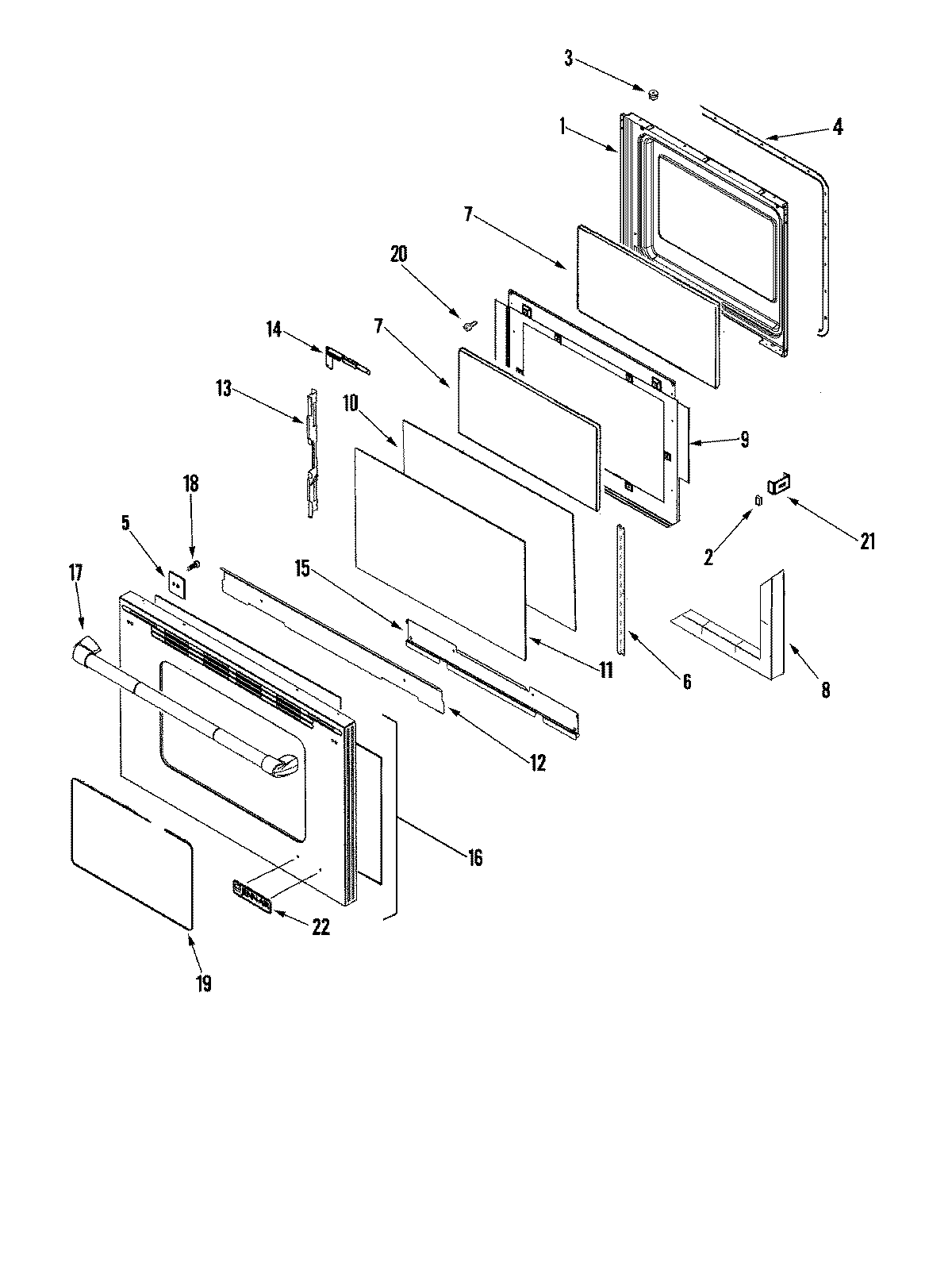

JGS8860BDP 04 – DOOR (SER PRE 11)

Products

PositionProduct
1LINING, DOOR
2WP74004224 Whirlpool Tape
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 74010785
63801F886-51 Whirlpool Mounting Bracket
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
93601F373-51 Whirlpool Baffle
10GLASS, DOOR (INNER/COATED)
11GLASS, DOOR
12MAY 74011049
13RETAINER, GLASS SUPPORT
14MAY 74011463
14MAY 74011797
15MAY 74011464
16Insulation, Foil
16MAY 74011536
16INSULATION, FOIL
17WP7701P475-60 Whirlpool Door Handle
18MAY 74011751
1974008916 Whirlpool Window Gasket
20WP90767 Whirlpool Screw
21CLIP, DOOR
227103P166-60 Whirlpool Nut
22MAY 74006889
