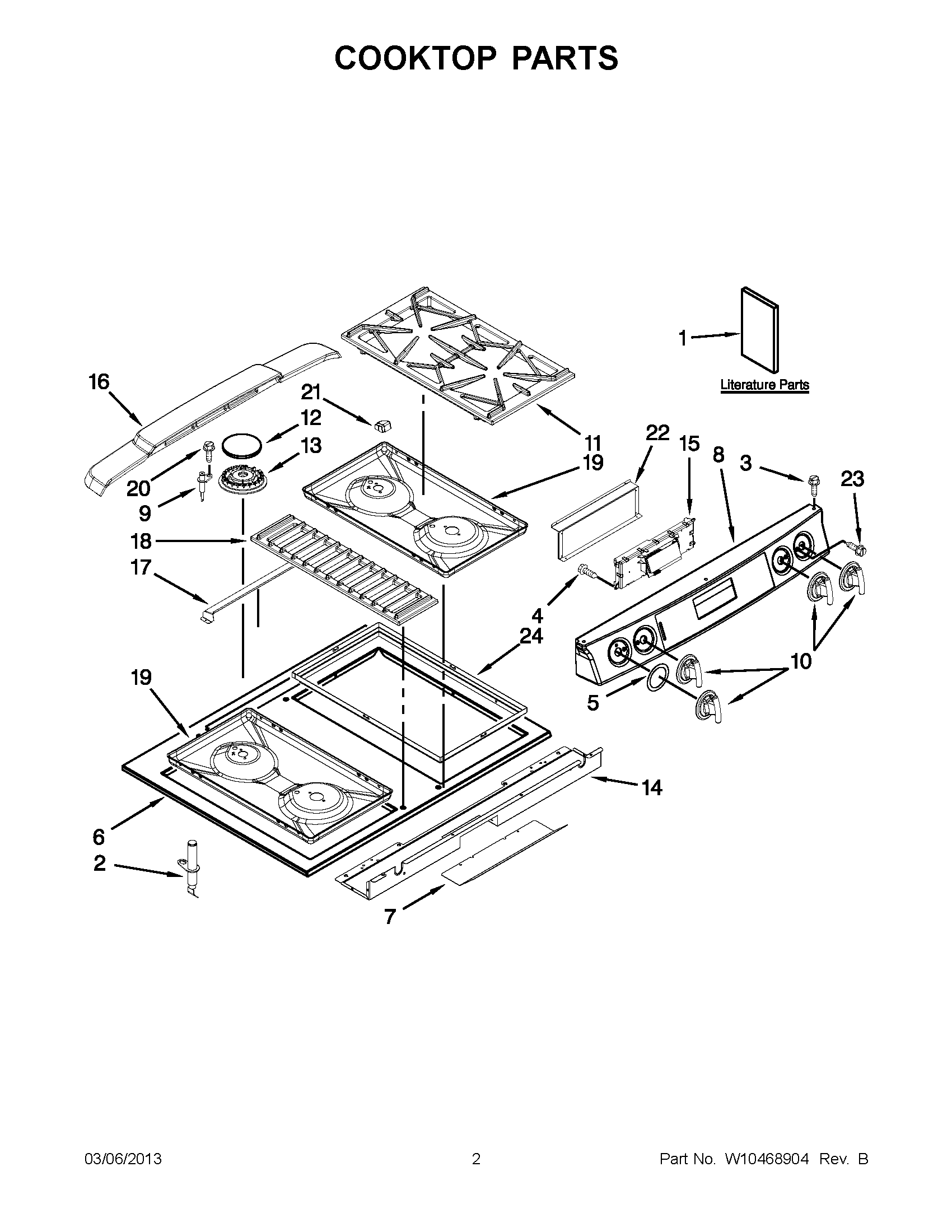

JGS8860BDP18 01 – COOKTOP PARTS

JGS8860BDP18 01 – COOKTOP PARTS

Written by

in

JGS8860BDP18 01 – COOKTOP PARTS

Products

PositionProduct
1OWNERS MANUAL
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10394677
1MAY 8101P697-60
2MAY 7432P138-60
3MAY 7101P426- 60
4WP59002061 Whirlpool Microwave Screw
5MAY 7740P167-60
5MAY 7740P166-60
5MAY 7740P165-60
6MAY W10331862
7MAY 3604F426-51
8MAY 5760M339-60
9IGNITOR
10MAY W10175695
11MAY 7518P359-60
12CAP, BURNER (LF & RR)
12CAP, BURNER (CTR)
12CAP, BURNER (LR & RF)
12CAP, BURNER (DUAL INNER)
12CAP, BURNER (DUAL OUTER)
13BASE, BURNER (DUAL BURNER, LF)
13HEAD, BURNER (CTR)
13HEAD, BURNER (LR & RF)
13HEAD, BURNER (LF & RR)
14MAY 3807F738-51
15MAY 8507P229-60
16MAY 7724P197-60
17BAFFLE,VENT COVER
18MAY 7518P367-60
19MAY 3424F037-09
19DRIP, BOWL (MEDIUM)
20MAY 7101P606-60
21MAY 7726P396-60
21MAY 7726P397-60
22MAY 3801F932-51
23SCREW (10ABX1/4P TR ZN)
24MAY 3608W146-50
