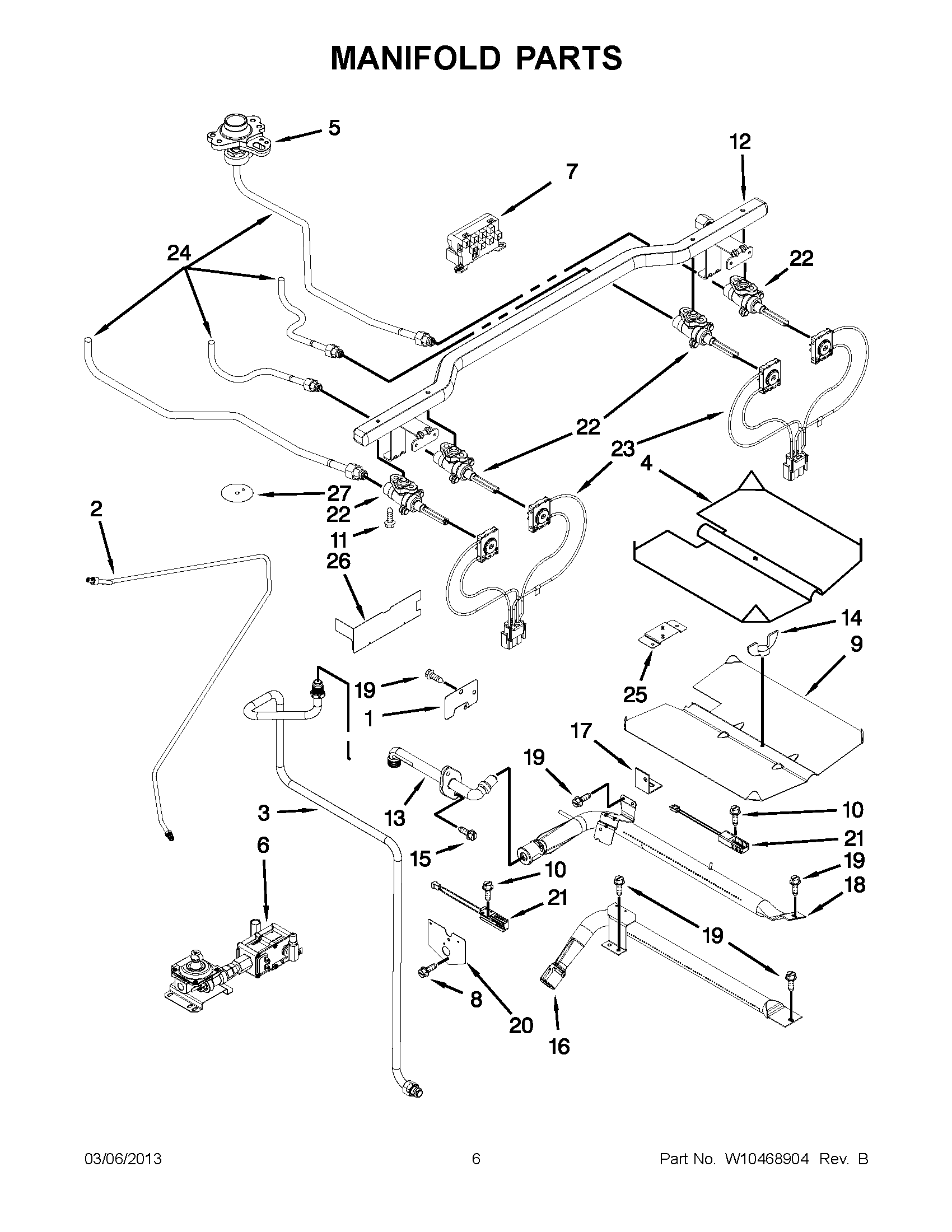

JGS8860BDP18 03 – MANIFOLD PARTSadmin2025-04-26T09:19:56+00:00JGS8860BDP18 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY 7507P418-60 |
| 1 | MAY 4005F421-45 |
| 2 | MAY W10224720 |
| 3 | TUBING, BROILER |
| 4 | BAFFLE, BAKE (BROIL) |
| 5 | ORIFICE, HOLDER (DUAL BURNER, LF) |
| 5 | HOLDER, ORIFICE (LF, RR) |
| 5 | HOLDER, ORIFICE (CTR) |
| 5 | HOLDER, ORIFICE (LR) |
| 6 | VAVLE, SAFETY |
| 7 | MAY 7431P038-60 |
| 8 | SCREW (2) |
| 9 | BAFFLE, OVEN BOTTOM |
| 10 | SCREW (10-24X5/16-NI) |
| 11 | SCREW (8BX3/8-NI) |
| 12 | PIPE, MANIFOLD |
| 13 | MAY 7507P407-60 |
| 14 | NUT, WING |
| 15 | MAY 7101P676-60 |
| 16 | MAY 7505P254-60 |
| 17 | MAY 3807F480-45 |
| 18 | MAY 7505P293-60 |
| 19 | MAY 7101P434-60 |
| 20 | MAY 3605F269-45 |
| 21 | IGNITOR, OVEN |
| 22 | MAY 7502P533-60 |
| 22 | VALVE (LR/RR/RF) |
| 22 | VALVE ((LF)) |
| 22 | VALVE (CENTER 5K (1)) |
| 23 | SWITCH, REIGNITION (RF/RR) |
| 23 | SWITCH, REIGNITION (LF/LR) |
| 24 | MAY 7506P461-60 |
| 24 | MAY 7506P460-60 |
| 24 | MAY 7506P459-60 |
| 24 | MAY 7506P458-60 |
| 24 | MAY 7506P457-60 |
| 25 | MAY 3801F944-51 |
| 26 | MAY 4005F638-51 |
| 27 | COVER, VALVE SW |
