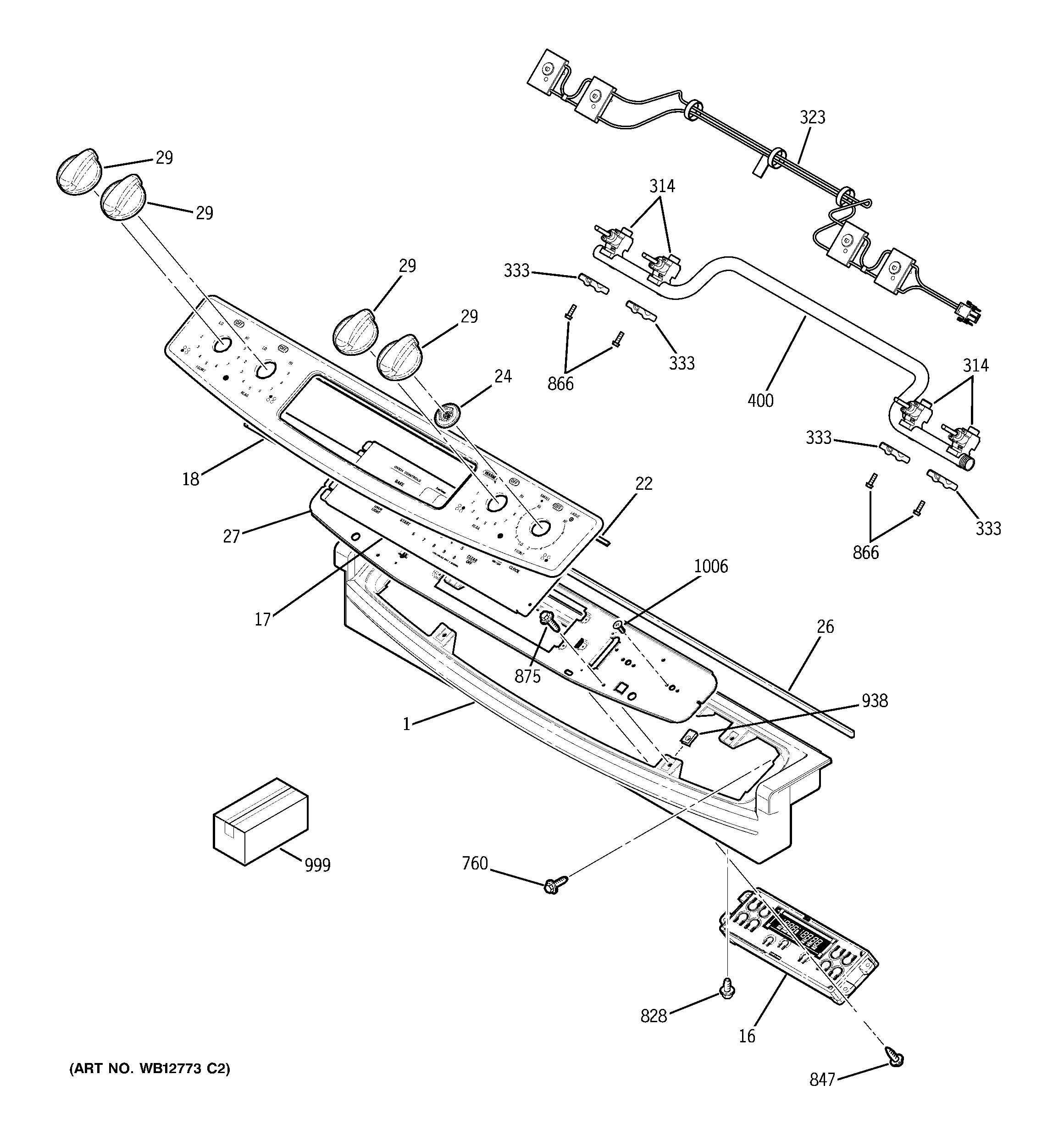

JGS905KEK1CC CONTROL PANEL

JGS905KEK1CC CONTROL PANEL

Written by

in

JGS905KEK1CC CONTROL PANEL

Products

PositionProduct
1WB36T10667 GE Oven Control Panel Assembly
16WB27T11251 GE Oven ERC3B Control
17GEN WB27T10762
18GEN WB27T10774
22WB02X10744 GE Oven Gasket Faceplate
24GEN WB02T10185
26WB02X10742 GE Oven Control Panel Gasket
27GEN WB36T10669
29GEN WB03T10196
314VALVE GAS LT FRT
314GEN WB19T10022
314WB21X31343 GE Oven Gas Valve Kit
314VALVE GAS RT FRT
323GEN WB18T10343
333WB6X93 GE Oven Clamp
400GEN WB28T10084
760WB1X536 GE Oven Screw
828WB1X1141 GE Oven Screw 8-32
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
866GEN WB01X1428
875WH2X930 GE Screw
938WB1K5209 GE Oven Clip
999GEN 31-14345
999GEN 31-10625
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 31-10601
999GEN WB18T10363
999GEN 31-10514
999GEN 49-80371
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
