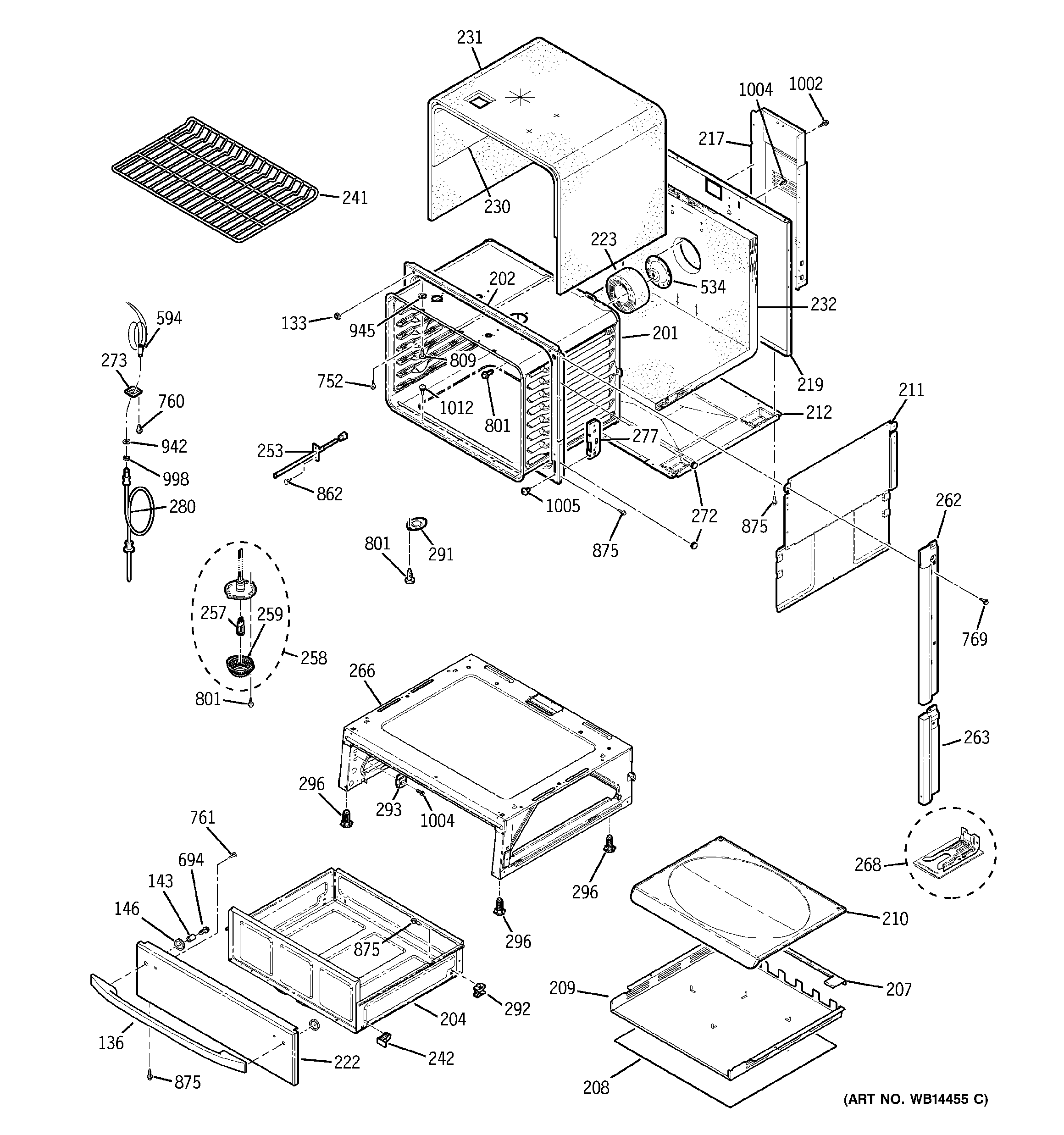

JGS968BEK4BB BODY PARTS

JGS968BEK4BB BODY PARTS

Written by

in

JGS968BEK4BB BODY PARTS

Products

PositionProduct
133WB01T10052 GE Oven Foam Tape
133WB01T10022 GE Oven Door Bumper
136WB15T10136 GE Oven Drawer Handle
143SPACER DR HANDLE
146DOOR HANDLE SPACER-BLACK
201WRAPPER OVN CAV ASM
202WB63T10083 GE Front Lower Frame
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
207GEN WB02T10192
208GEN WB35T10091
209GEN WB34T10080
210GEN WB63T10101
211WB02T10284 GE Oven Side Insulation Retainer
212GEN WB02T10187
217GEN WB34T10075
219GEN WB56T10136
222GEN WB56T10173
223WB35T10090 GE Oven Back & Bottom Insulation
230GEN WB35T10187
231GEN WB35T10089
241GEN WB28T10049
242WB48T10068 GE Oven Wedge Drawer
253WB21X22134 GE Oven Sensor Assembly
257WB49X29679 GE Range Halogen Bulb Kit
258WB25T10096 GE Oven Halogen Lamp Assembly
259WB25T10027 GE Oven Lens Lamp
262WB07T10520 GE Right Side Trim (Black)
262WB07T10521 GE Vertical Side Light Trim (Black)
263WB07T10632 GE Vertical Left Side Trim
263TRIM VERT SIDE RT (BK)
266GEN WB39T10006
268GEN WB02T10137
272WB02T10034 GE Oven Body Side Support
272GEN WB02T10411
273PROBE COVER
273GEN WB02X8309
277GEN WB10T10083
280WB20T10024 GE Oven Thermistor Probe
291GEN WB02X9152
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296GEN WB01M0018
296WB02X10521 GE Oven Leveling Leg
534WB26T10015 GE Oven Cavity Support
594GEN WB08T10040
694WB1K5157 GE Oven Black Screw
694WB1X1424D GE Oven Screw Package
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1X5364 GE Oven Mounting Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
761WB1K5029 GE Oven Screw
769WB1X500D GE Oven Screw Package
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
862GEN WB01X1178
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
