JGS968SEK1SS COOKTOP

JGS968SEK1SS COOKTOP

Written by

in

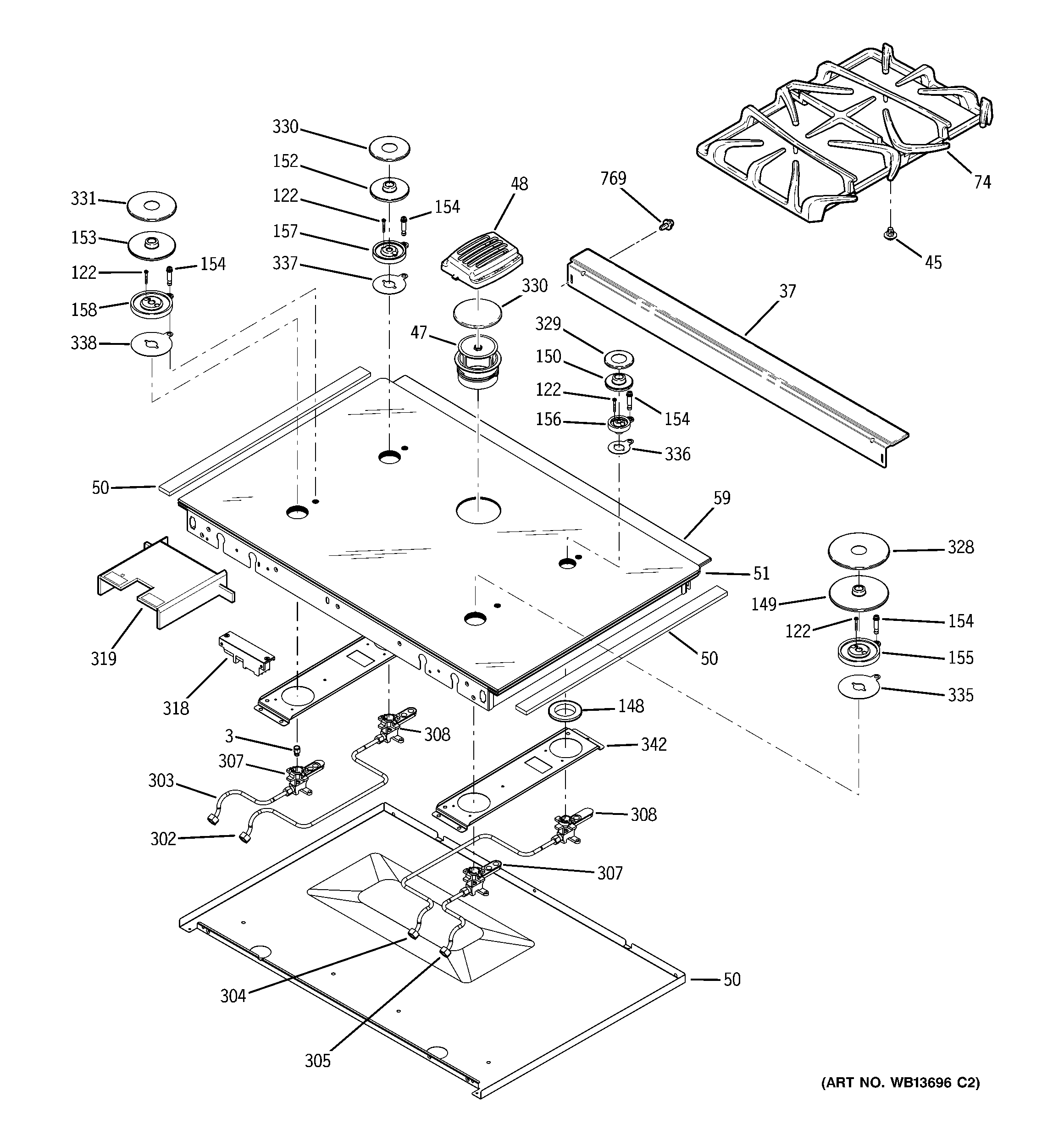

JGS968SEK1SS COOKTOP

Products

Position	Product
3	WB28K10288 GE Oven Orifice Spud
3	WB28T10011 GE Oven Spud Orifice
3	WB28T10014 GE Oven LT Front Orifice Spud
3	WB28T10015 GE Oven Natural Orifice Spud Assembly
3	WB28T10017 GE Oven Orifice Spud
3	WB28T10028 GE Oven Orifice Spud Assembly
3	WB28T10027 GE Oven Orifice Spud Right FR-NG
3	ORIFICE SPUD RT FRT -LP
37	BACKSPLASH FILLER-BLACK
37	GEN WB36T10725
45	WB02T10461 GE Oven Range Grate Foot
47	GEN WB38T10023
48	COVER VENT ASM
50	GEN WB64T10055
50	WB02T10320 GE Oven Left Hand Maintop Gasket
50	GEN WB02T10148
51	MAINTOP GLASS ASM (BK)
59	WB02T10511 GE Oven Outer Gasket
74	GEN WB31T10122
122	WB01T10049 GE Oven Screw
122	WB57T10233 GE Oven Inner Door Glass
148	GEN WB04K10004
148	GEN WB04K10005
149	WB16T10037 GE Oven Head Burner
150	WB16T10034 GE Oven Range Surface Burner Cap
152	GEN WB16T10035
153	GEN WB16T10036
154	WB13T10073 GE Oven Igniter
155	WB16T10032 GE Oven Front Base Burner
156	WB16T10031 GE Oven Small Burner Base
157	WB24T10061 GE Oven Clean Temperature Control
157	WB16T10030 GE Oven Medium Base Burner
158	WB16T10033 GE Oven Large Base Burner
302	GEN WB28T10087
303	GEN WB28T10085
303	GEN WB28T10094
304	GEN WB28T10088
304	GEN WB28T10093
305	GEN WB28T10086
307	BURNER INJET ASM
307	ORIFICE HOLDER BKT LARGE
308	GEN WB28T10029
308	BURNER HOLDER BKT SMALL
318	SPARK MODULE
319	GEN WB35T10125
328	WB13T10063 GE Oven Burner Cap D (BK)
329	WB13T10060 GE Oven Burner Cap H (BK)
330	BURNER CAP BK MED
330	WB13T10061 GE Oven Burner Cap B (BK)
331	WB13T10062 GE Oven Burner Cap C (BK)
335	BURNER GASKET D
336	GEN WB16T10011
337	GEN WB04T10011
338	WB04T10012 GE Oven Burner Gasket
338	WB56T10105 GE Oven Inner Window Assembly
342	GEN WB02T10182
769	WB1X500D GE Oven Screw Package
