JGS9900BDB 06 – GAS CONTROLS/SURFACE BURNERS

JGS9900BDB 06 – GAS CONTROLS/SURFACE BURNERS

Written by

in

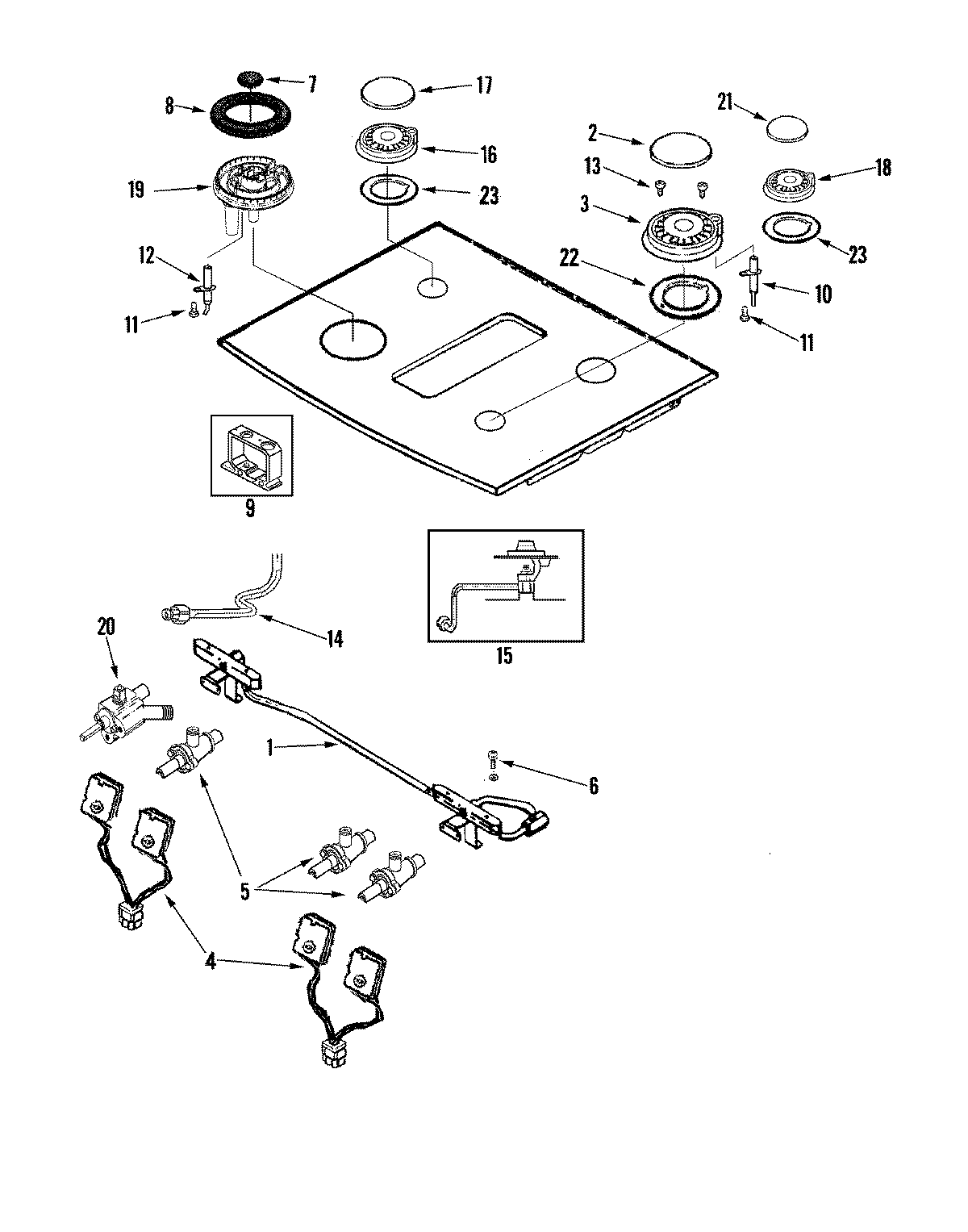

JGS9900BDB 06 – GAS CONTROLS/SURFACE BURNERS

Products

PositionProduct
1MAY 74011659
2CAP, BURNER (EX-LRG/BLK)
374007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
4WP74011647 Whirlpool HAR Switch
4WP74011648 Whirlpool Harsh Switch
5MAY 74009452
512002270 Whirlpool Valve Kit and Screw 16K
5MAY 74009451
6MAY 74009416
7MAY 74011650
8MAY 74011651
9WP7527P061-60 Whirlpool Orifice Holder
10WP74009336 Whirlpool Oven Top Igniter
11WP8273062 Whirlpool Screw
12WP74011829 Whirlpool Burner Igniter Dual
13WP400021-1 Whirlpool Screw
14MAY 74011735
14MAY 74011734
15WP7527P087-60 Whirlpool Orifice Holder
15MAY 74011742
15MAY 74011741
1674007735 Whirlpool Burner Assembly
17Cap, Burner (12.5K RF, LR)
18WP7505P339-60 Whirlpool Burner Top
19MAY 74011652
20WP74011649 Whirlpool Burner Valve
21WP8284669 Whirlpool Burner Cap
22WP74010652 Whirlpool Gasket
23WP74010776 Whirlpool Freezer Gasket
