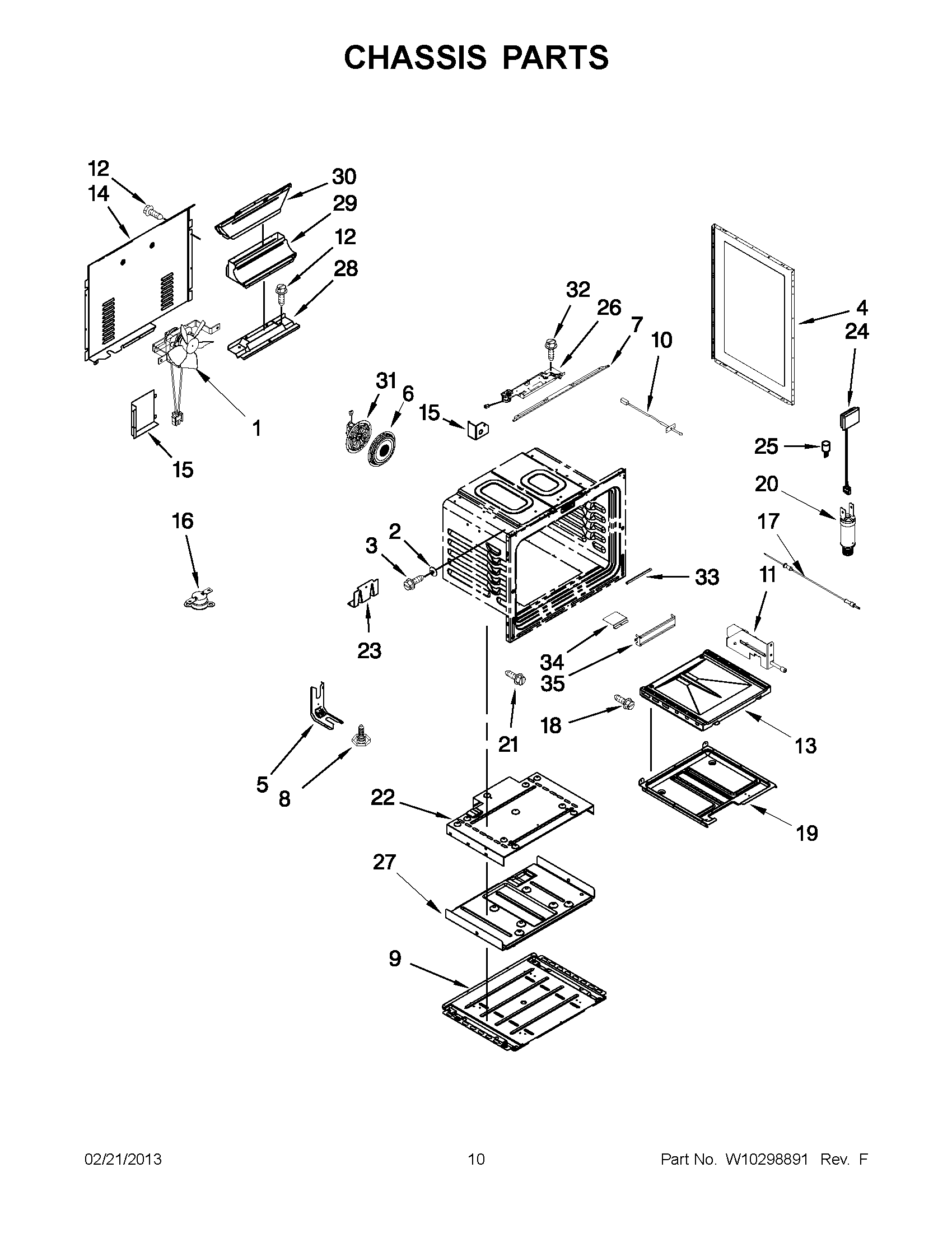

JGS9900BDB15 05 – CHASSIS PARTSadmin2025-04-26T09:21:24+00:00JGS9900BDB15 05 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P479-60 |
| NI | MAY 7002P447-60 |
| 1 | MAY 7427P094-60 |
| 2 | MAY 8004P024-60 |
| 3 | SCREW, SHOULDER |
| 4 | MAY 2618F206-51 |
| 4 | MAY 2618F202-51 |
| 5 | BRACKET, ANTI-TIP |
| 6 | COVER, FAN |
| 7 | BRACKET, INNER GLASS |
| 8 | NUT, LEVELING LEG |
| 9 | PEDESTAL, FRONT |
| 10 | Sensor, Oven |
| 11 | ASSY., LIGHT SW |
| 12 | MAY 7101P434-60 |
| 13 | MAY 2205F051-19 |
| 14 | COVER, MAIN WIRE |
| 15 | MAY 3801F906-51 |
| 15 | MAY 3801F912-51 |
| 16 | MAY 7450P030-60 |
| 17 | MAY 7430P038-60 |
| 18 | Screw (2) (Black) |
| 19 | MAY 3401F091-45 |
| 20 | MAY 7408P086-60 |
| 21 | MAY 7101P426- 60 |
| 22 | MAY 4005F815-51 |
| 23 | MAY 3807F615-51 |
| 24 | MAY 7407P180-60 |
| 25 | BULB, OVEN |
| 26 | MAY 8002P089-60 |
| 27 | MAY 3804F315-51 |
| 29 | MAY 8026P092-60 |
| 30 | MAY 8407P013-60 |
| 31 | MAY W10206590 |
| 32 | Screw (Black) (2) |
| 33 | MAY 7212P066-60 |
| 34 | MAY 4005F736-45 |
| 35 | BAFFLE,VENT COVER |
