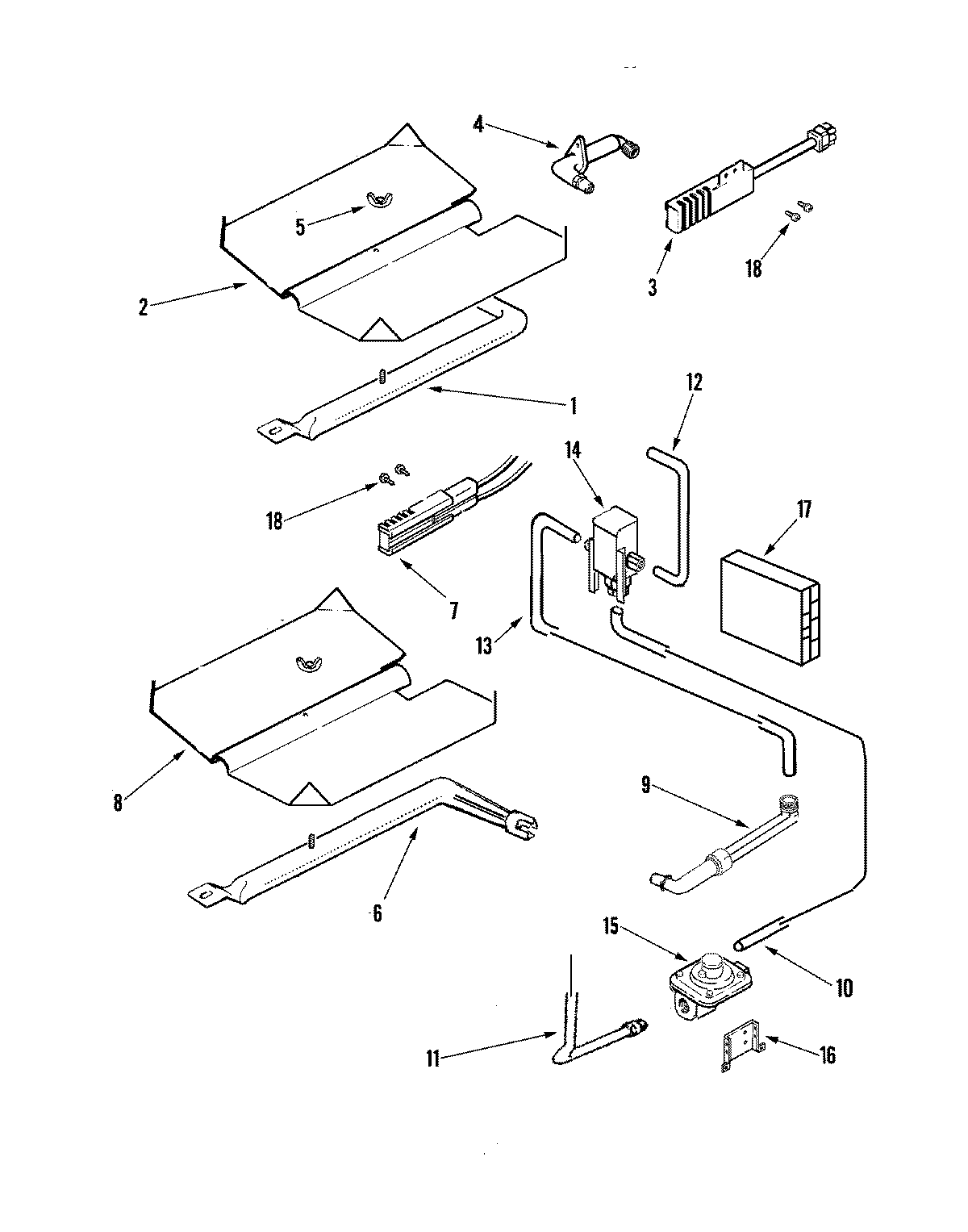

JGS9900BDF 05 – GAS CONTROLS/OVEN

Products

Position	Product
1	MAY 74011731
2	MAY 74010086
3	MAY 4005F421-45
3	W10826866 Whirlpool Oven Igniter
4	WP3387230 Whirlpool Screw
4	MAY 74011738
5	NUT, WING
6	MAY 74010094
6	MAY 74010102
7	IGNTR-OVEN
8	MAY 74007406
9	MAY 74011737
9	MAY 74007426
9	MAY 74007451
10	MAY 74011732
11	MAY 74011471
12	MAY 74011733
13	MAY 74011736
14	WP74006345 Whirlpool Oven Valve
15	74011878 Whirlpool Oven Pressure Regulator
16	MAY 74011879
17	WPW10475147 Whirlpool Spark Module
18	Screw (4)
