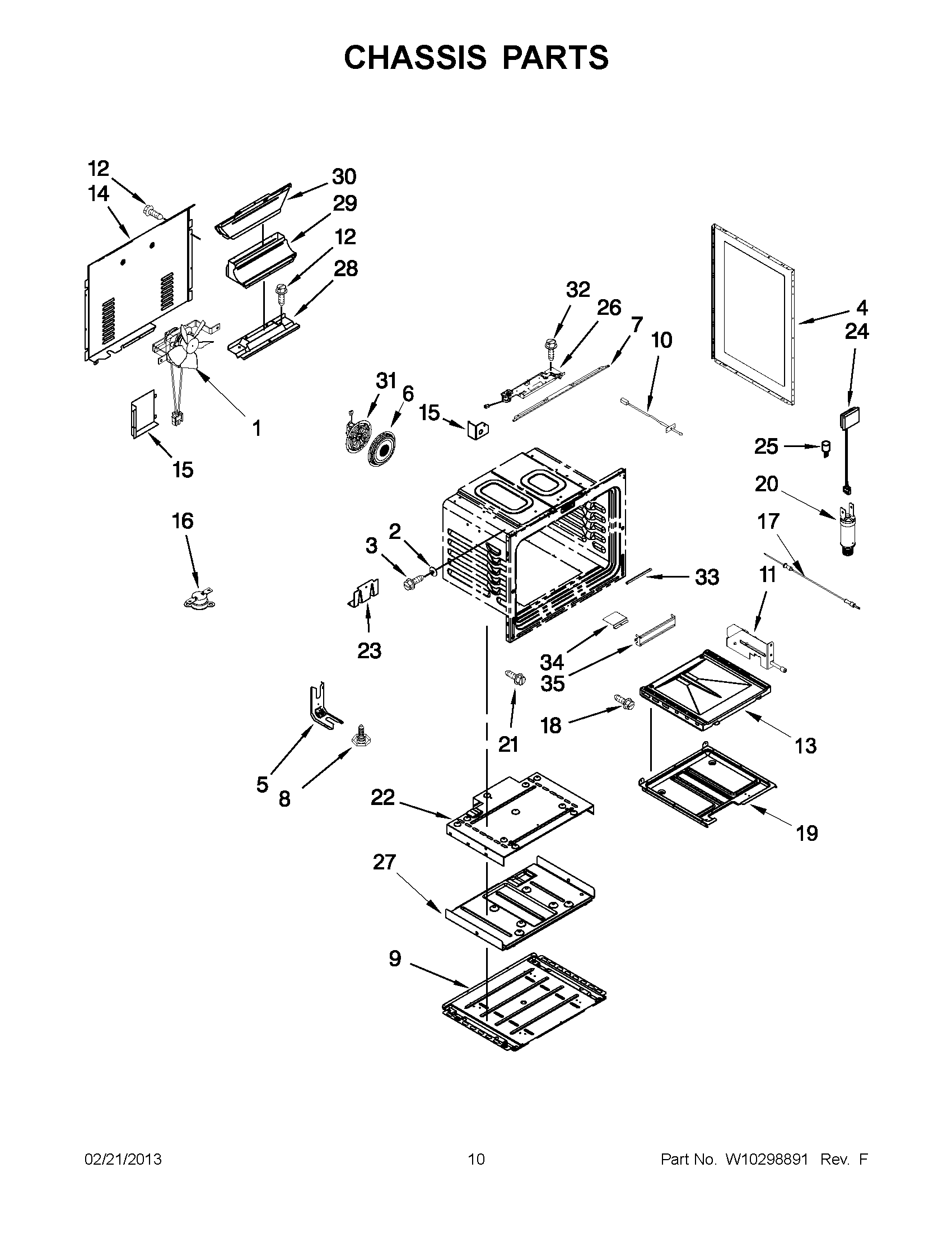

JGS9900BDS15 05 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P479-60
NI	MAY 7002P447-60
1	MAY 7427P094-60
2	MAY 8004P024-60
3	SCREW, SHOULDER
4	MAY 2618F206-51
4	MAY 2618F202-51
5	BRACKET, ANTI-TIP
6	COVER, FAN
7	BRACKET, INNER GLASS
8	NUT, LEVELING LEG
9	PEDESTAL, FRONT
10	Sensor, Oven
11	ASSY., LIGHT SW
12	MAY 7101P434-60
13	MAY 2205F051-19
14	COVER, MAIN WIRE
15	MAY 3801F906-51
15	MAY 3801F912-51
16	MAY 7450P030-60
17	MAY 7430P038-60
18	Screw (2) (Black)
19	MAY 3401F091-45
20	MAY 7408P086-60
21	MAY 7101P426- 60
22	MAY 4005F815-51
23	MAY 3807F615-51
24	MAY 7407P180-60
25	BULB, OVEN
26	MAY 8002P089-60
27	MAY 3804F315-51
29	MAY 8026P092-60
30	MAY 8407P013-60
31	MAY W10206590
32	Screw (Black) (2)
33	MAY 7212P066-60
34	MAY 4005F736-45
35	BAFFLE,VENT COVER
