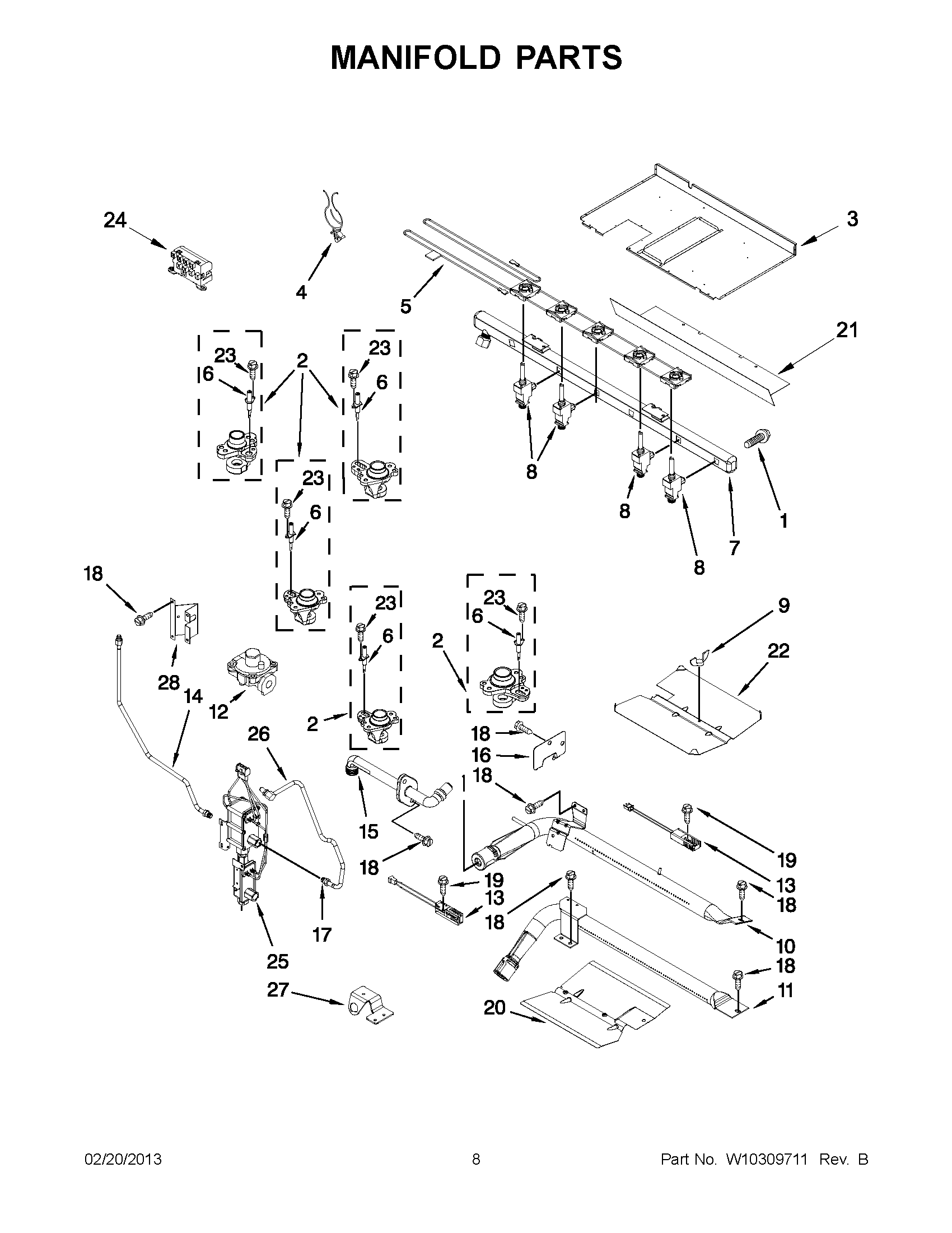

JGS9900BDS16 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY 7506P482-60
NI	MAY 7506P464-60
NI	MAY 7506P479-60
NI	MAY 7506P480-60
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 7507P420-60
1	SCREW
2	ORIFICE, HOLDER (DUAL BURNER, LF)
2	MAY 7527P085-60
2	MAY 7527P086-60
2	MAY 7527P087-60
3	MAY 4011F476-51
4	Clip, Wire
5	MAY 7450P007-60
5	HARNESS, VALVE (RF/RR)
6	IGNITOR
7	MAY 7513P473-60
8	VALVE, TOP BURNER (LF (DUAL))
8	VALVE, TOP BURNER (LR 5K)
8	VALVE, TOP BURNER (RR/LF 9.2K)
8	MAY 7502P548-60
9	NUT, WING
10	MAY 7505P344-60
11	MAY 7505P324-60
12	MAY 7510P100-60
13	MAY 7432P140-60
13	Igniter (Bake)
15	MAY 7507P421-60
16	MAY 4005F421-45
17	MAY 7103P195-60
18	SCREW (2)
20	MAY 3601F339-45
21	SHIELD, CONTROL
22	MAY 3601F358-45
23	SCREW (10-24X5/16-NI)
24	MAY 7431P038-60
25	MAY 7501P193-60
26	MAY 7506P475-60
27	MAY 3801F681-45
28	MAY 8405P073-60
