JGS9900BDS16 05 – CHASSIS PARTS
Written by
in

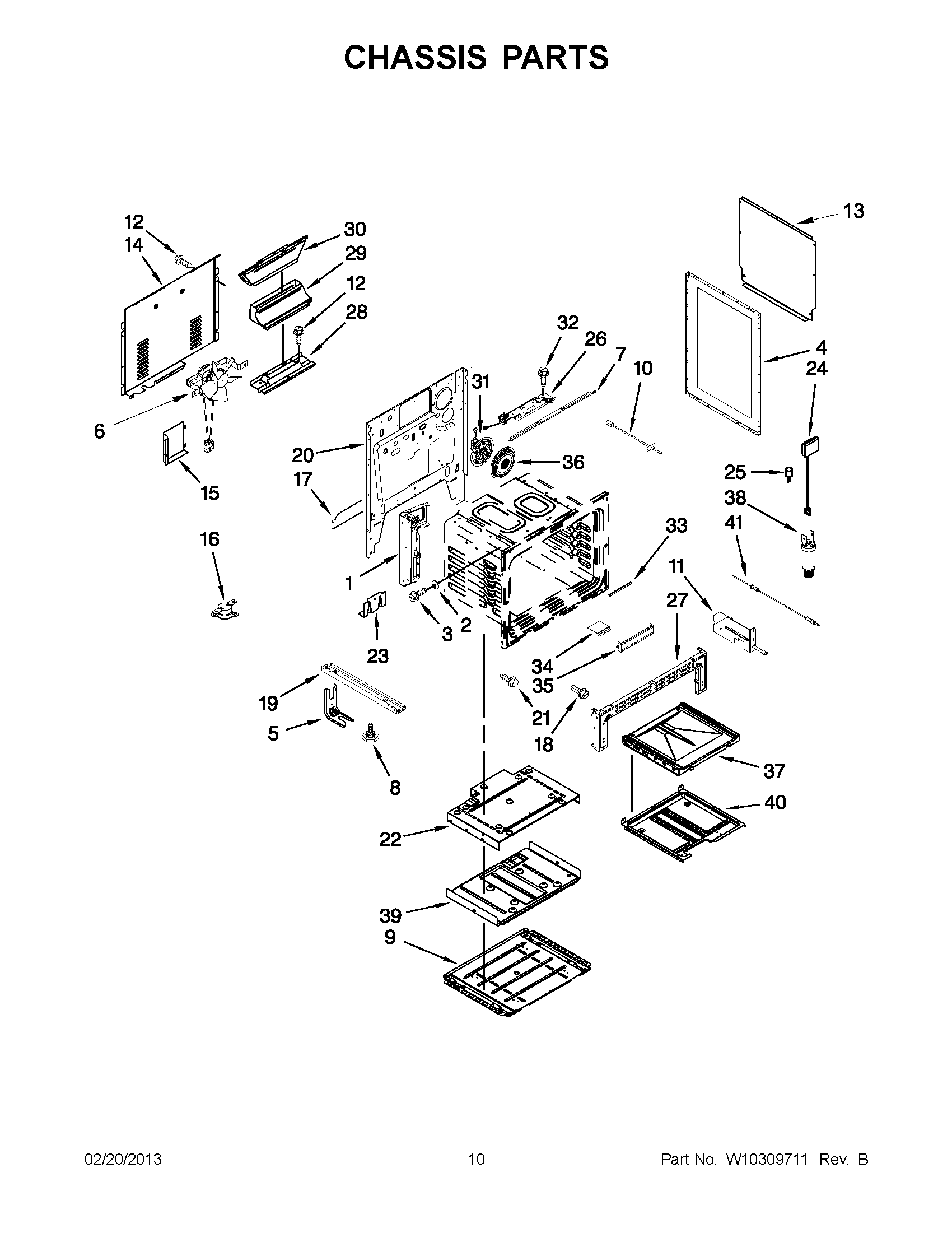

JGS9900BDS16 05 – CHASSIS PARTS
Products
Position
Product
NI
MAY 7002P447-60
NI
MAY 7002P479-60
NI
INSULATION
1
MAY 3826F066-51
2
MAY 8004P024-60
3
SCREW, SHOULDER
4
MAY 2618F206-51
4
MAY 2618F202-51
5
BRACKET, ANTI-TIP
6
MAY 7427P094-60
7
BRACKET, INNER GLASS
8
LEG, LEVELING
9
PEDESTAL, FRONT
10
Sensor, Oven
11
ASSY., LIGHT SW
12
MAY 7101P434-60
13
MAY 3604F416-51
14
COVER, MAIN WIRE
15
MAY 3801F912-51
15
MAY 3801F906-51
16
MAY 7450P030-60
17
MAY 4020F032-80
17
MAY 4020F033-80
18
Screw (2) (Black)
19
MAY 4020W035-80
20
BACK, MAIN
21
MAY 7101P426- 60
22
MAY 4005F815-51
23
MAY 3807F615-51
24
MAY 7407P180-60
25
BULB, OVEN
26
MAY 8002P089-60
27
PEDESTAL, FRONT
29
MAY 8026P092-60
30
MAY 8407P013-60
31
MAY 7427P113-60
32
Screw (Black) (2)
33
GASKET, DOOR TOP
34
MAY 4005F736-45
35
BAFFLE,VENT COVER
36
COVER, FAN
37
MAY 2205F051-19
38
MAY 7408P086-60
39
MAY 3804F315-51
40
MAY 3401F091-45
41
MAY 7430P038-60
←
