JGS9900CDB00 07 – DOOR PARTS – Aparts

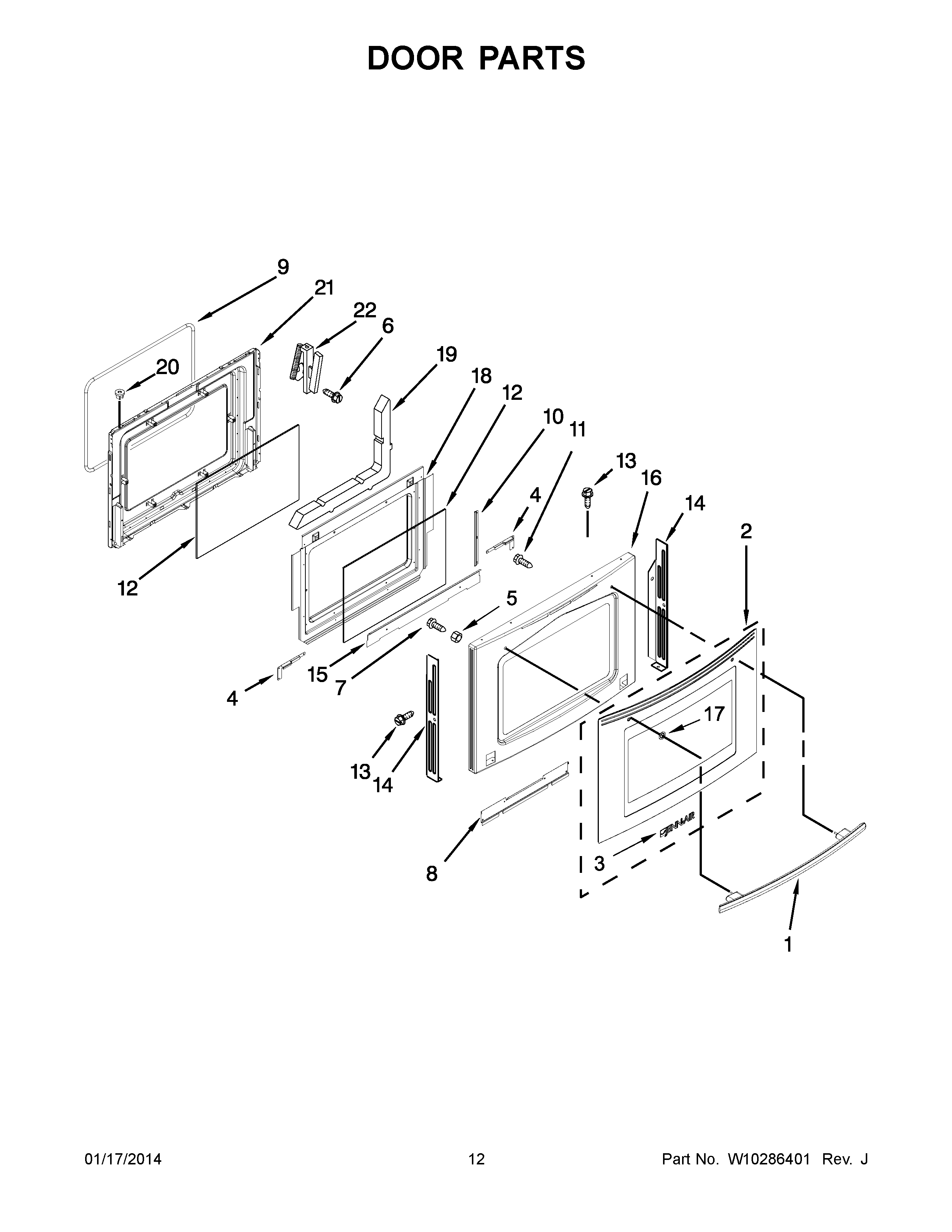

JGS9900CDB00 07 – DOOR PARTS

Products

Position	Product
1	MAY W10223164
1	MAY W10223165
1	MAY W10223163
2	MAY W10235391
2	MAY W10272330
2	MAY W10272332
3	ASSEMBLY, BADGE (OILED BRONZE)
3	MAY W10190709
3	MAY W10190708
4	MAY 3804F308-51
4	MAY 3804F307-51
5	MAY 7103P176-60
6	SCREW (10-24X5/16-NI)
7	MAY 7101P426- 60
8	MAY 8020P074-60
9	MAY W10162384
10	BRACKET, INNER GLASS
11	MAY 7101P376-60
12	Glass, Inner
13	Screw (2) (Black)
14	TRIM, SIDE (BLACK (2))
15	MAY 3604F418-51
16	FRAME, DOOR (OILED BRONZE)
16	MAY 3603F075-71
16	MAY 3603F075-70
17	MAY 7109P082-60
18	MAY 3601F373-51
19	MAY 7002P246-60
20	MAY 7103P141-60
20	NUT, SNAP (ROUND-WHT)
21	MAY 2402W312-19
22	Hinge, Door (2)
