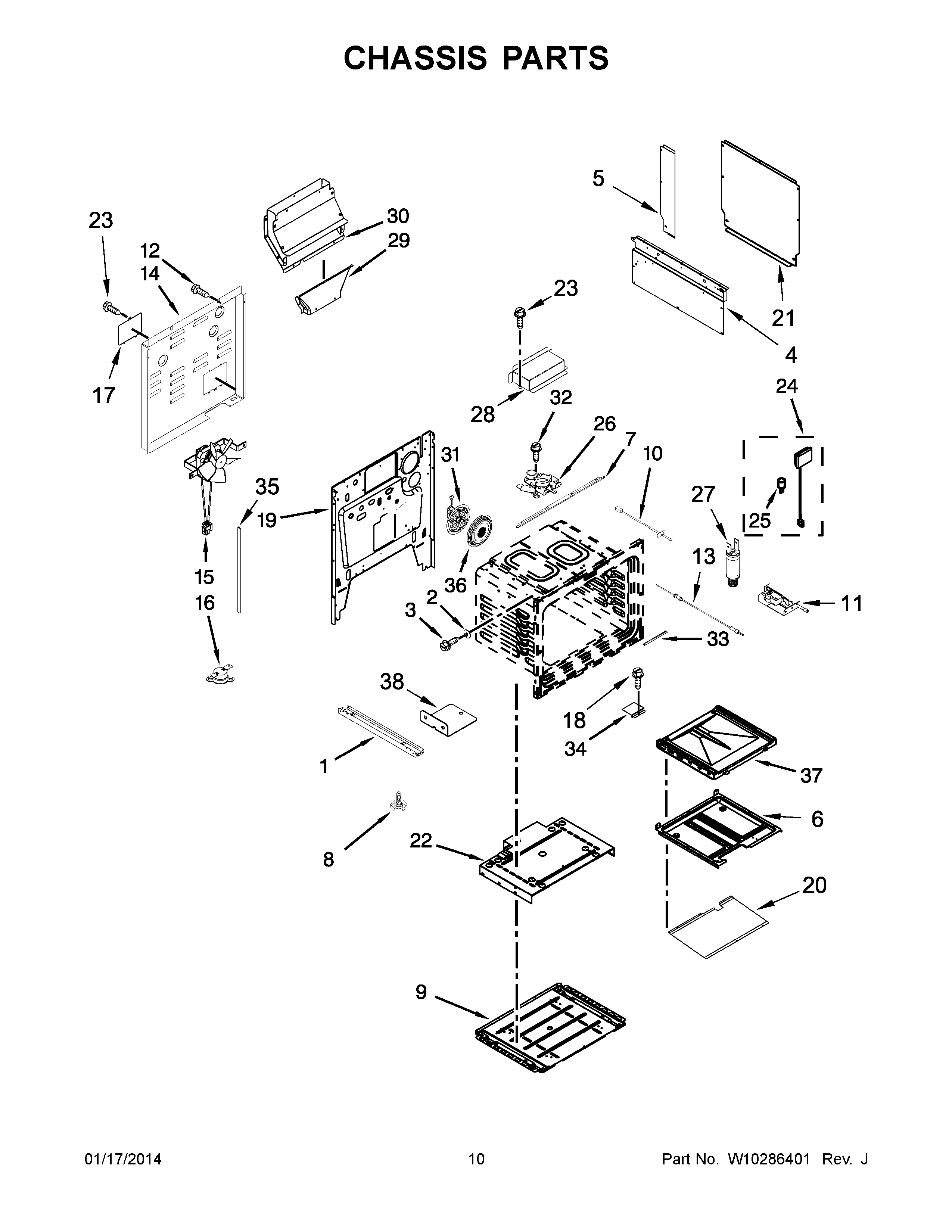

JGS9900CDF00 06 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P479-60
NI	MAY 7002P447-60
1	MAY 4020W035-80
2	MAY 8004P024-60
3	SCREW, SHOULDER
4	MAY 2618F202-51
4	MAY 2618F206-51
5	SHIELD, SIDE
6	MAY 3401F091-45
7	BRACKET, INNER GLASS
8	LEG, LEVELING
9	PEDESTAL, FRONT
10	Sensor, Oven
11	ASSY., LIGHT SW
12	MAY 7101P434-60
13	MAY 7430P038-60
14	COVER, MAIN WIRE
15	MAY 7427P094-60
16	MAY 7450P030-60
17	COVER, TERMINAL
18	SCREW (10-24X5/16-NI)
19	BACK, MAIN
20	MAY 3804F315-51
21	MAY 3604F416-51
22	MAY 4005F815-51
23	MAY 7101P336-60
24	MAY 7407P180-60
25	BULB, OVEN
26	MAY 8002P089-60
27	MAY 7408P086-60
28	COVER, DOOR LATCH
29	MAY 8026P092-60
30	MAY 8407P013-60
31	MAY W10206590
32	Screw (Black) (2)
33	GASKET, DOOR TOP
34	MAY 4005F736-45
35	MAY W10183566
36	COVER, FAN
37	MAY 2205F051-19
38	MAY 8405P073-60
