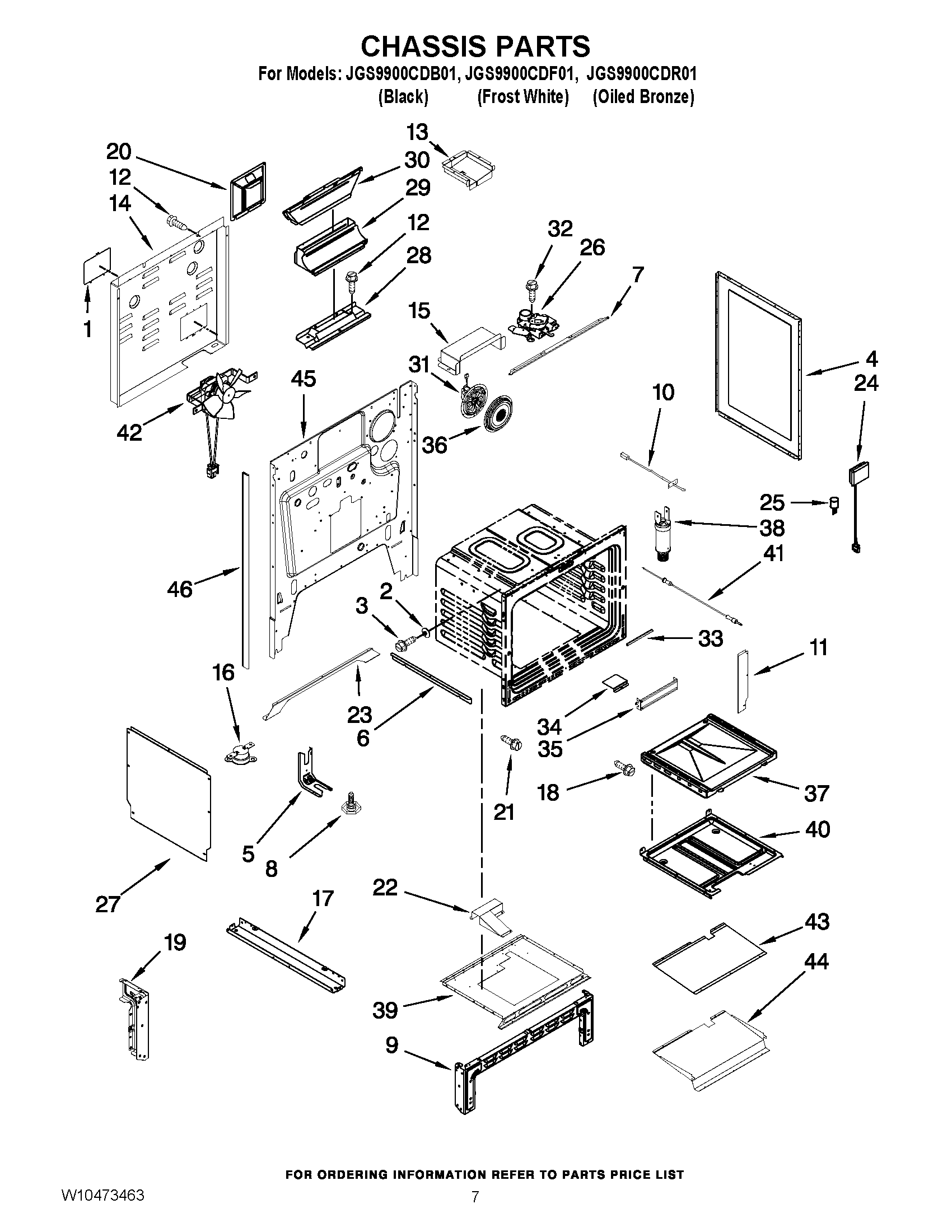

JGS9900CDF01 05 – CHASSIS PARTS
Written by
in
JGS9900CDF01 05 – CHASSIS PARTS
Products
Position
Product
NI
MAY 7002P447-60
NI
MAY 7002P451-60
NI
MAY 7002P479-60
1
COVER, TERMINAL
3
SCREW, SHOULDER
4
MAY 2618F206-51
4
MAY 2618F202-51
5
BRACKET, ANTI-TIP
6
MAY 8004P024-60
7
BRACKET, INNER GLASS
8
LEG, LEVELING
9
PEDESTAL, FRONT
10
Sensor, Oven
11
SHIELD, SIDE
12
MAY 7101P434-60
13
MAY 4005F817-51
14
COVER, MAIN WIRE
15
COVER, DOOR LATCH
16
MAY 7450P030-60
17
MAY 4020W035-80
18
Screw (2) (Black)
19
MAY 4020F032-80
19
MAY 4020F033-80
20
INSULATION
21
MAY 7101P426- 60
22
MAY 4005F815-51
23
MAY 3807F615-51
24
MAY 7407P180-60
25
BULB, OVEN
26
LATCH ASSEMBLY
27
MAY 3604F416-51
29
MAY 8026P092-60
30
MAY 8407P013-60
31
MAY W10206590
32
Screw (Black) (2)
33
GASKET, DOOR TOP
34
MAY 4005F736-45
35
BAFFLE,VENT COVER
36
COVER, FAN
37
MAY 2205F051-19
38
MAY 7408P086-60
39
MAY 3804F315-51
40
MAY 3401F091-45
41
MAY 7430P038-60
42
MAY W10317679
43
MAY 3818F121-51
44
MAY 3604F419-51
45
BACK, MAIN
46
MAY W10183566
←
