JGS9900CDF01 06 – DOOR PARTS – Aparts

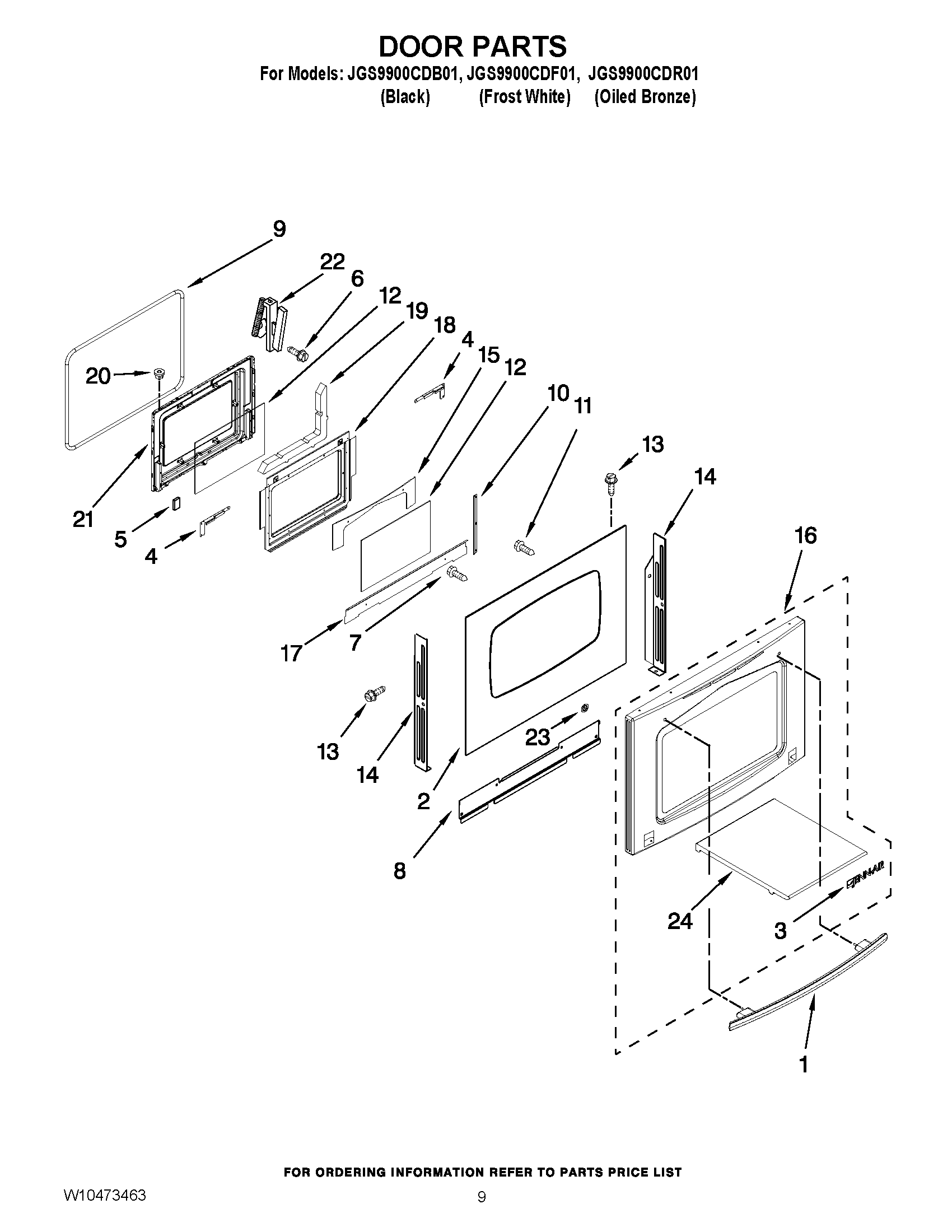

JGS9900CDF01 06 – DOOR PARTS

Products

Position	Product
1	MAY W10223163
1	MAY W10223165
1	MAY W10223164
2	MAY W10357183
2	MAY W10272330
2	MAY W10272332
3	ASSEMBLY, BADGE (OILED BRONZE)
3	MAY W10190709
3	MAY W10190708
4	MAY 3804F308-51
4	MAY 3804F307-51
6	SCREW (10-24X5/16-NI)
7	MAY 7101P426- 60
8	RETAINER, GLASS (LOWER)
9	MAY W10162384
10	BRACKET, INNER GLASS
11	MAY 7101P376-60
12	Glass, Inner
13	MAY 7101P434-60
14	TRIM, SIDE (BLACK (2))
14	MAY 3608F138-71
15	MAY 7002P465-60
16	FRAME, DOOR (OILED BRONZE)
16	MAY 3603F075-71
16	MAY 3603F075-70
17	MAY 3604F418-51
18	MAY 3601F373-51
19	MAY 7002P246-60
20	NUT, SNAP (ROUND-WHT)
20	MAY 7103P141-60
21	MAY 2402W312-19
22	Hinge, Door (2)
23	MAY 7109P082-60
24	MAY W10331048
