JGS9900CDR01 02 – BLOWER UNIT PARTS – Aparts

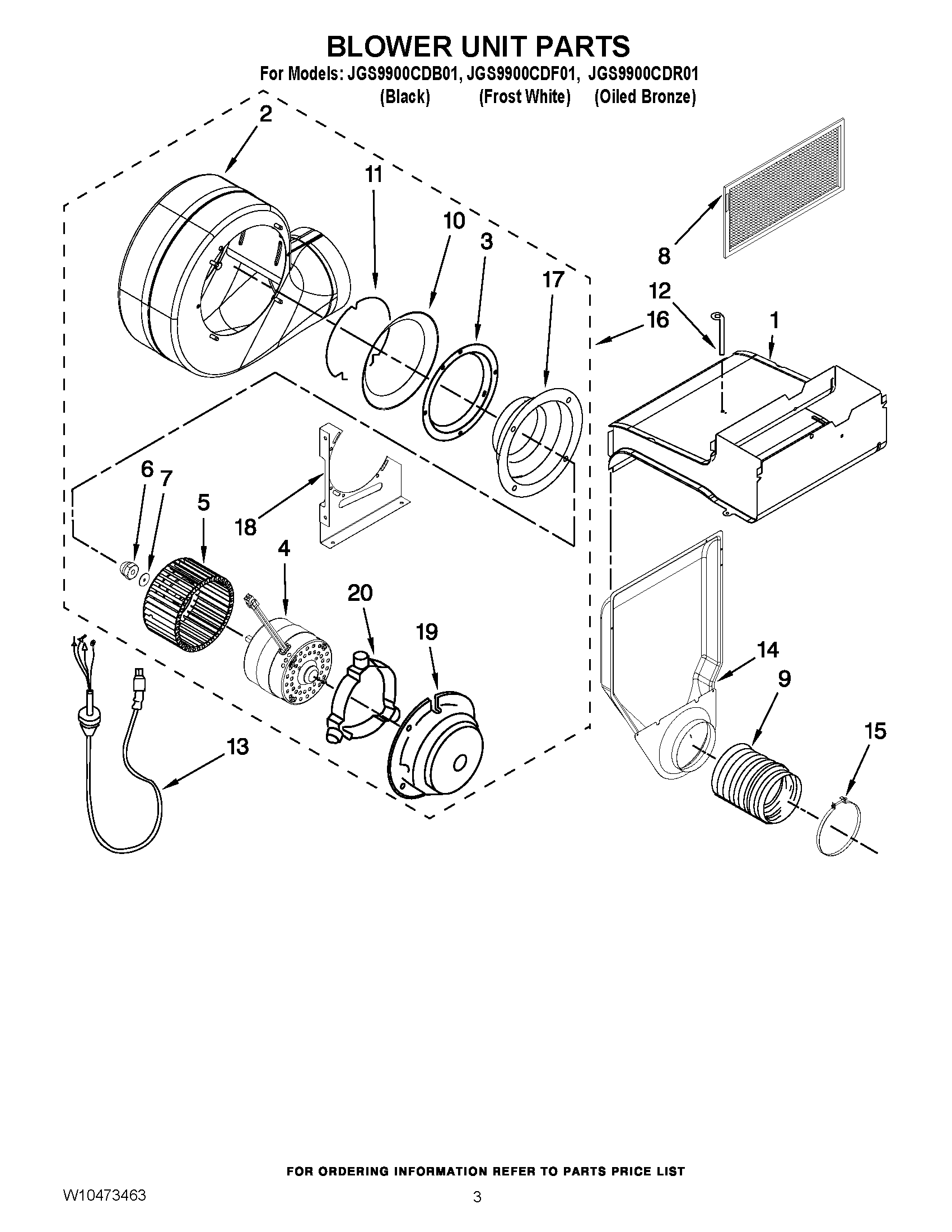

JGS9900CDR01 02 – BLOWER UNIT PARTS

Products

Position	Product
1	MAY 2801W034-80
2	MAY 2822W003-80
3	RING, INLET
4	MOTOR, BLOWER
5	WHEEL, BLOWER
6	NUT, LOCK
7	MAY 7109P082-60
8	MAY 8310P007-60
9	MAY 8032P003-60
10	RING, RESTRICTOR
11	MAY 8038P003-60
12	MAY 7809P030-60
13	POWER CORD
14	ASSEMBLY, PLENUM SIDE
15	MAY 7111P047-60
16	MAY W10273267
17	MAY 2818F001-80
18	MAY 3801F906-51
18	MAY 3801F912-51
19	MAY 4005F537-80
20	ASSEMBLY, MOTOR BAND
