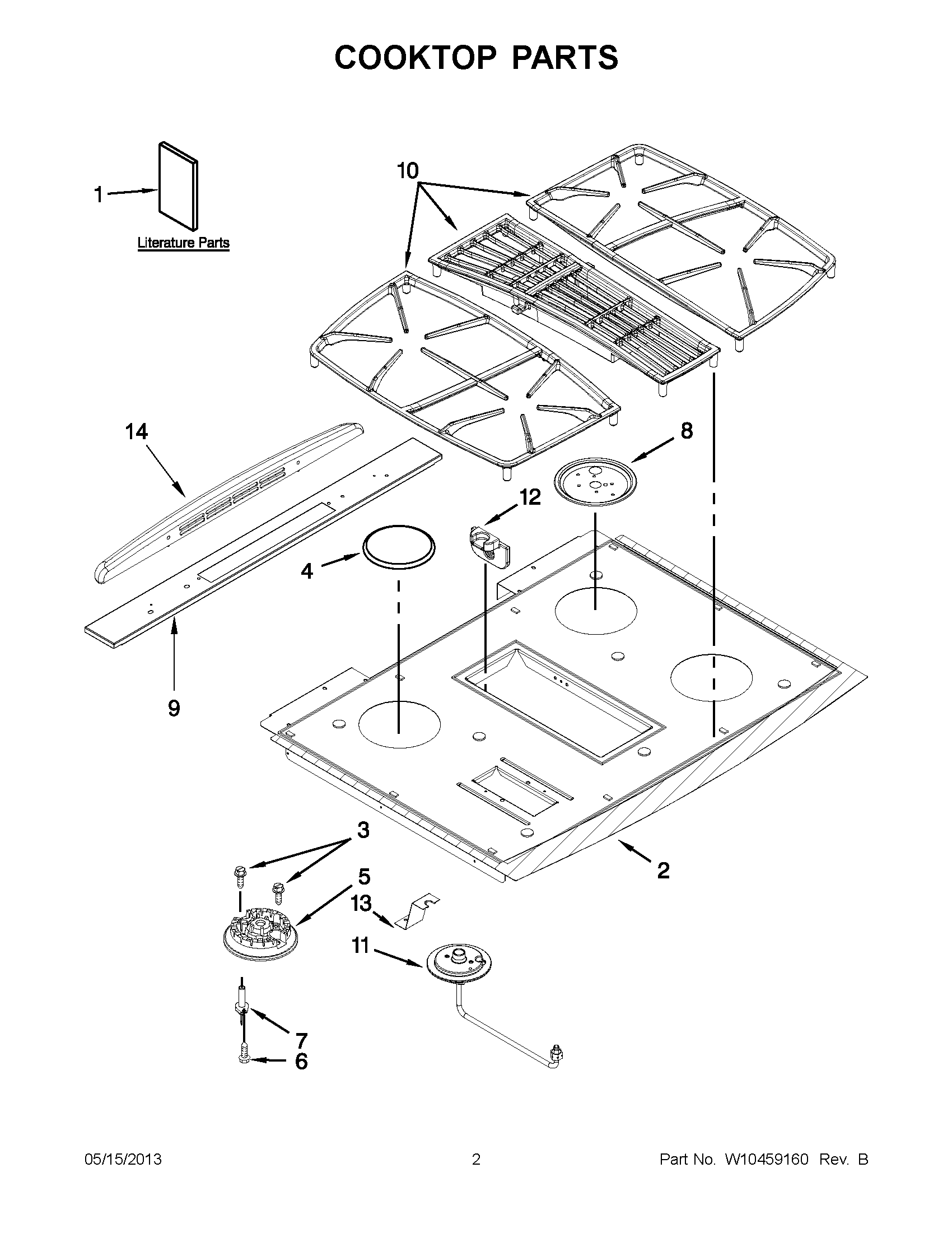

JGS9900CDS02 01 – COOKTOP PARTSadmin2025-04-26T09:22:29+00:00JGS9900CDS02 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | MAY W10253463 |
| 1 | MAY W10235527 |
| 1 | MAY W10394692 |
| 1 | CARD, FLOW TESTER |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 2 | MAY W10235921 |
| 3 | SCREW |
| 4 | MAY 7504P260-60 |
| 5 | BASE, BURNER (DUAL BURNER, LF) |
| 5 | ASSEMBLY, BURNER AUXILIARY (LEFT REAR & RIGHT REAR) |
| 5 | HEAD, BURNER (CTR) |
| 5 | HEAD, BURNER (LR & RF) |
| 6 | MAY 7101P606-60 |
| 7 | IGNITOR |
| 8 | MAY 3424F039-09 |
| 9 | MAY 4005F789-09 |
| 10 | MAY 7772P055-60 |
| 10 | MAY 7518P338-60 |
| 10 | MAY 7518P332-60 |
| 11 | MAY 7527P085-60 |
| 11 | MAY 7527P086-60 |
| 11 | MAY 7527P087-60 |
| 11 | ORIFICE, HOLDER (DUAL BURNER, LF) |
| 12 | MAY 8008P075-60 |
| 13 | MAY 3801F681-45 |
| 14 | MAY 7724P200-60 |
