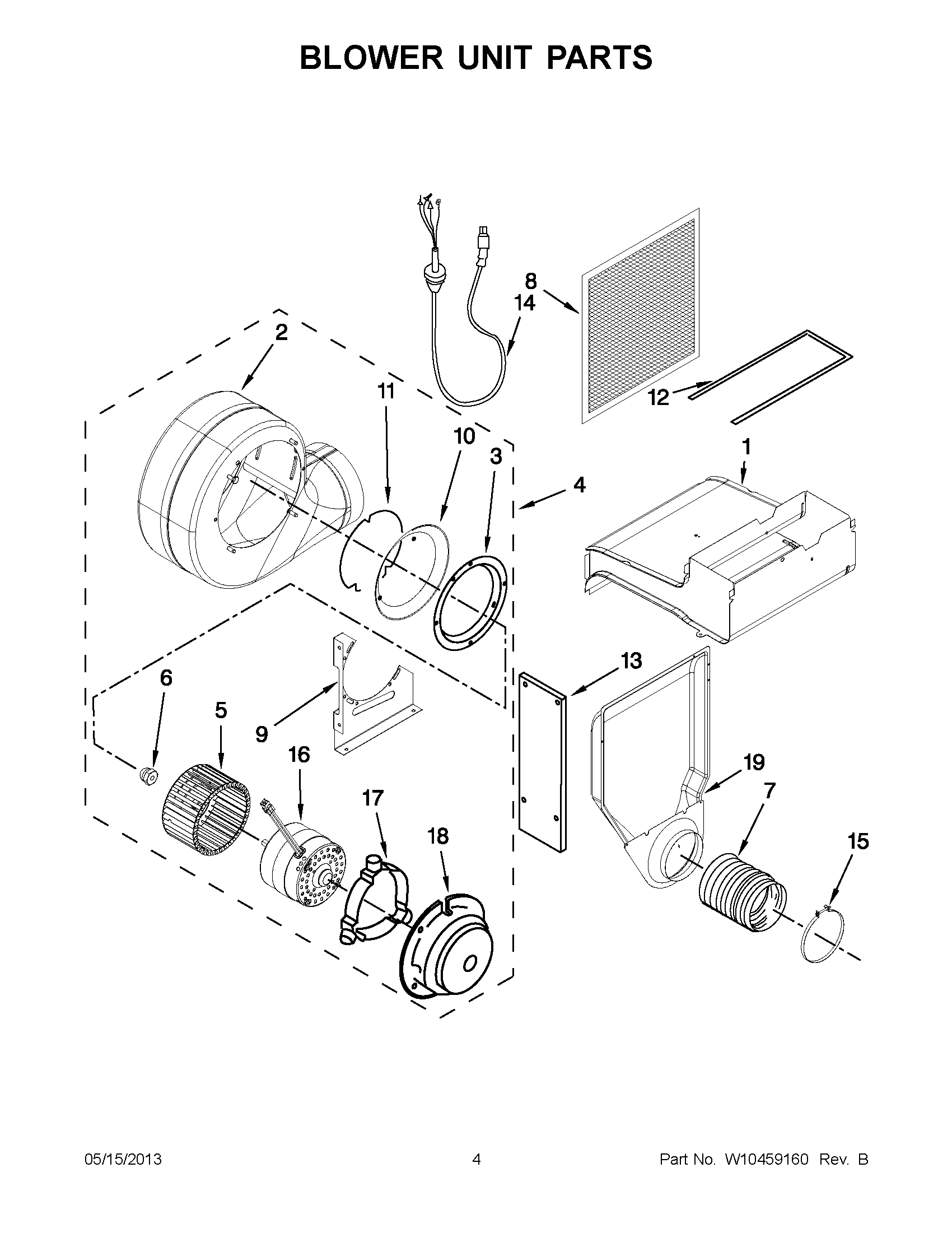

JGS9900CDS02 02 – BLOWER UNIT PARTS

Products

Position	Product
1	MAY 2801W034-80
2	MAY 2822W003-80
3	RING, INLET
4	MAY W10273267
5	WHEEL, BLOWER
6	NUT, LOCK
7	MAY 8032P003-60
8	MAY 8310P007-60
9	MAY 3801F906-51
9	MAY 3801F912-51
10	RING, RESTRICTOR
11	MAY 8038P003-60
12	MAY 7201P144-60
14	POWER CORD
15	MAY 7111P047-60
16	MOTOR, BLOWER
17	ASSEMBLY, MOTOR BAND
18	MAY 4005F537-80
19	ASSEMBLY, PLENUM SIDE
