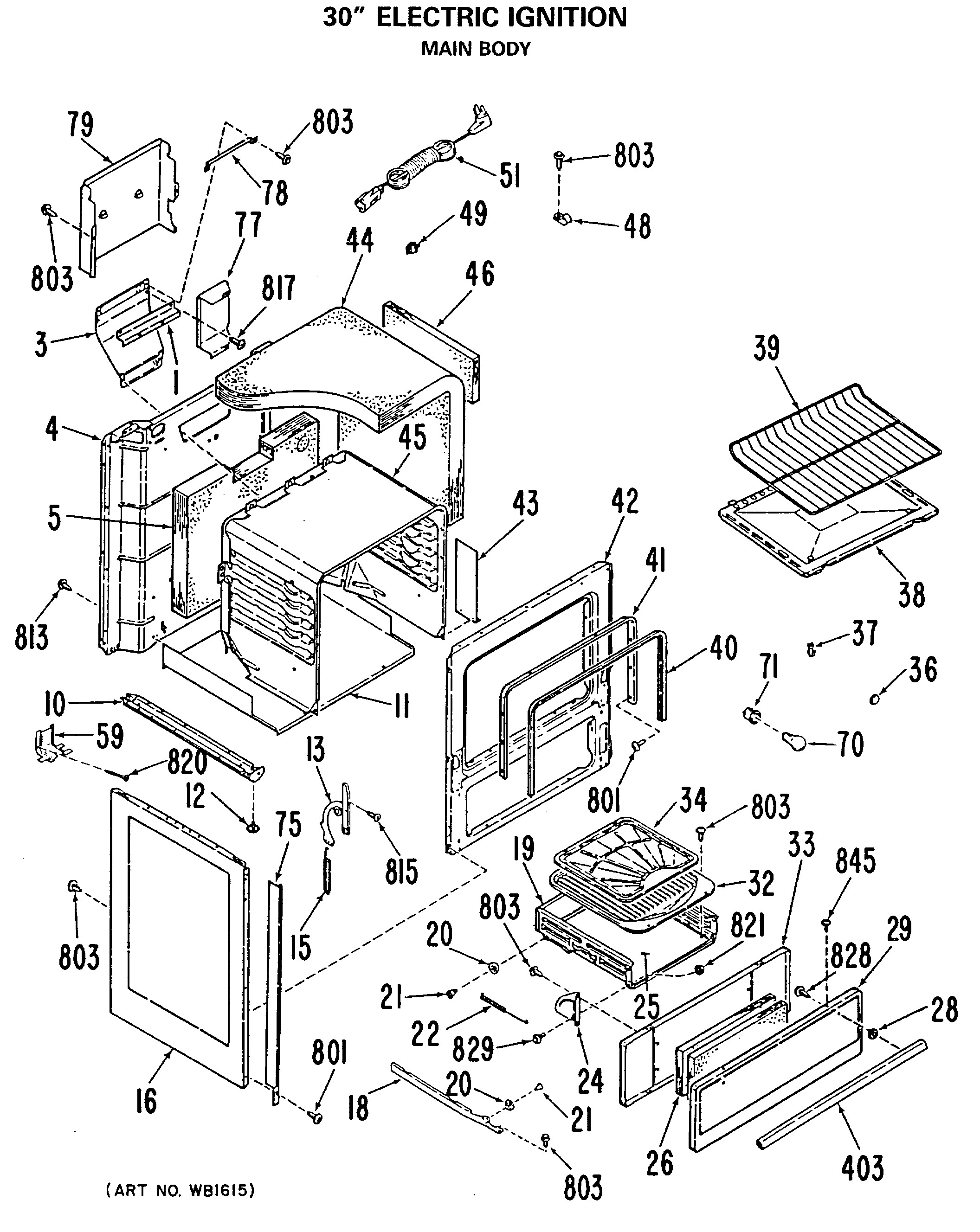

JGSC08GEK1 30″ ELECTRIC IGNITION

Products

Position	Product
1	FLUE DEFL Z-SUPPORT
3	GEN WB38X0105
4	GEN WB63X0331
5	GEN WB02X9021
10	BASE-W/LEVELING LEGS
11	MAIN BOTTOM
12	LEG LEVELER
13	WB14X104 GE Stove Range Oven Right Hand Door Hinge
13	WB14X103 GE Range Oven Left Door Hinge
16	GEN WB63X0332
18	GUIDE-BROILER-RIGHT
18	GUIDE-BROILER-LEFT
19	DRAWER-BROILER
20	GEN WB02X9095
21	ROLLER
22	GEN WB09X0240
24	BRO DRAWER HINGE-RT
24	BRO DRAWER HINGE-LT
25	GEN WB49X0625
29	GEN WB55X1899
32	BROILER PAN
33	GEN WB55X0670
34	BROILER PAN GRID
36	WB2X9189 GE Oven Plug – REC
37	THERMOSTAT BULB RET CLIP
38	OVEN BOTTOM
39	GEN WB48X0208
40	GEN WB02X9028
41	DR SEAL RETAINER
42	GEN WB63X0333
43	UNKNOWN
44	OVEN BODY INSULATION
45	OVEN BODY
46	INSULATION
49	DISCONNECT
50	GEN WB08X0276
51	GEN WB18X0306
51	POWER SUPPLY CORD
51	MODULE WIRE HARNESS
51	GEN WB18X0308
55	SPARK IGN MODULE
56	GEN WB02X9120
70	GEN BUY-LOCAL
75	SIDE TRIM-RT
75	SIDE TRIM-LT
77	GEN WB02X9114
78	GEN WB38X0107
79	FLUE DEFLECTOR SHIELD
302	GRATE
303	GEN WB62X1681
304	WB10X255 GE Oven Hinge Bracket
305	UNKNOWN
305	UNKNOWN
307	BURNER BOX BOTTOM
309	GEN WB02X9112
313	GEN WB07X1596
314	CONTROL KNOB
315	THERMOSTAT KNOB
316	GEN WB24X0415
321	AERATION PAN
325	END CAP-LT
325	END CAP-RT
326	GEN WB02X9111
327	WIRE COVER
330	VENT COVER
331	GEN WB02X9273
340	CLOCK BRACKET
341	CLOCK W/4 HR TIMER
342	CLOCK GLASS
343	GEN WB03X0766
344	CLOCK CLIP
350	BBB STIFFENER-LT
401	UNKNOWN
402	WB56X1902 GE Oven Outer Glass
403	OV DOOR HANDLE
403	GEN WB15X0270
407	GEN WB56X1911
409	GEN WB02X9036
410	OVEN DOOR GLASS-CENTER
411	INSULATION RETAINER
415	UNKNOWN
471	UNKNOWN
702	IGNITER BRACKET
703	SPARK IGN ELECTRODE
703	SPARK IGN ELECTRODE RT
704	GEN WB28X0085
704	TOP BURNER-REAR-RIGHT
705	GEN WB28X0087
705	GEN WB28X0084
707	SUPPORT-TOP BURNER-R/L
708	GEN WB02X9007
713	GEN WB01X9092
715	THERMOSTAT SCREW GASKET
716	THERMOSTAT GASKET
717	THERMOSTAT SWITCH
718	OVEN THERMOSTAT
719	VALVE SWITCH
720	GAS VALVE 90 DEGREE
721	VALVE GASKET
722	MAINFOLD PIPE
723	GEN WB21X0465
724	TUBE 3/8 W/NUT
725	OV BURN BAFFLE
726	GEN WB28X0083
728	GEN WB21X0474
729	AIR SHUTTER-OVEN
731	PILOT W/CUP
733	3/16 TUBING SLEEVE
735	GEN WB02X9017
736	OVEN SPARK IGN ELECTRODE
738	GEN WB02X9283
740	GEN WB02X9020
801	GEN WB01X1113
803	WB1M1 GE Oven Screw
805	NUT
806	WB1X1118 GE Oven Screw 6-32T
807	HEX NUT
808	GEN WB01X1121
809	GEN WB01X1123
810	AIR SHUTTER SCREW-OVEN
811	GEN WB01X1125
812	TUBING NUT 3/16
813	WB1X1130 GE Oven Screw 10-32
815	WB1K5191 GE Oven Zinc FL Screw
815	GEN WB09X0241
817	WB1X1149 GE Oven Screw
819	GEN WB01X1151
820	GEN WB01X1152
821	HEX NUT
822	GEN WB01X1154
825	WB1X681 GE Oven Screw
829	GEN WB01X1156
834	FELT WASHER
846	UNKNOWN
866	GEN WB01X1166
868	GEN WB01X1167
872	FIBER WASHER
873	GEN WB01X1139
874	GEN WB01X1140
9999	GEN 49-4902
9999	INSTALLATION GUIDE
