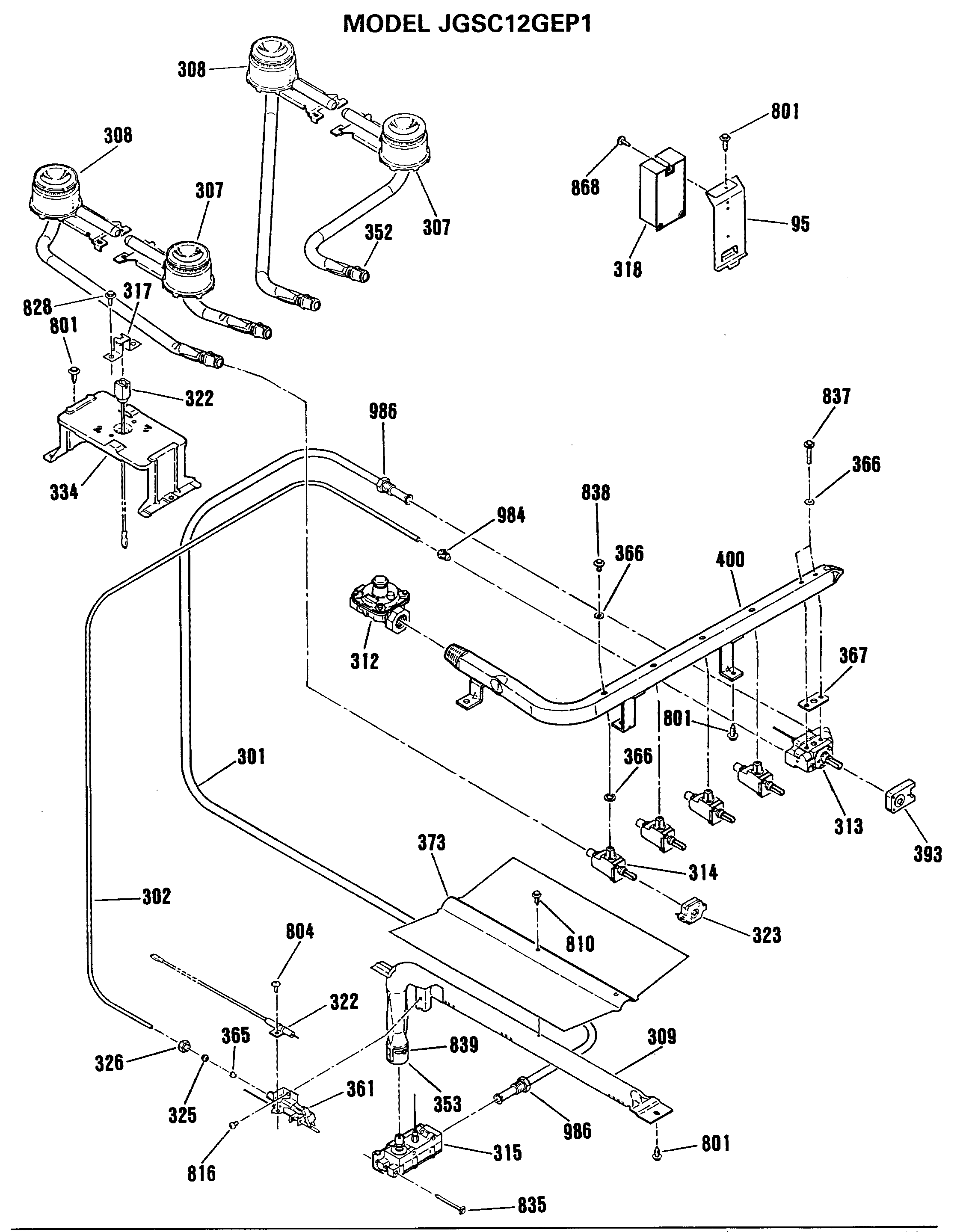

JGSC12GEP1 1

JGSC12GEP1 1

Written by

in

JGSC12GEP1 1

Products

Position	Product
95	GEN WB02K5098
95	WB10X255 GE Oven Hinge Bracket
301	TUBING-CONTROL/SHUT-OFF
302	TUBE 3/16
307	TOP BURNER-FRONT-LEFT
307	GEN WB16M0009
308	TOP BURNER-REAR-LEFT
308	TOP BURNER-REAR-RIGHT
309	OV BURN ASM (373,309,801
312	GEN WB21X0465
313	GEN WB20K5010
314	GAS VALVE 90 DEGREE
315	GEN WB21X0474
317	IGNITER BRACKET
318	GEN WB20X0105
322	OVEN SPARK IGN ELECTRODE
322	SPARK IGN ELECTRODE
322	GEN WB02X9532
323	VALVE SWITCH
325	TUBING NUT 3/16
326	3/16 TUBING SLEEVE
334	SUPPORT-TOP BURNER-R/L
352	GEN WB02X9739
353	AIR SHUTTER-OVEN
361	PILOT W/CUP
365	GEN WB02X9017
366	THERMOSTAT SCREW GASKET
366	VALVE GASKET
366	VALVE SCREW GASKET
367	THERMOSTAT GASKET
373	OV BURN BAFFLE
393	THERMOSTAT SWITCH
400	MAINFOLD PIPE
801	WB1M1 GE Oven Screw
804	WB1X681 GE Oven Screw
810	WB1X1130 GE Oven Screw 10-32
816	GEN WB01X1125
828	WB1X1141 GE Oven Screw 8-32
835	GEN WB01X1123
837	GEN WB01X1151
838	GEN WB01X1121
839	AIR SHUTTER SCREW-OVEN
868	GEN WB01X1166
984	HEX NUT
986	NUT
