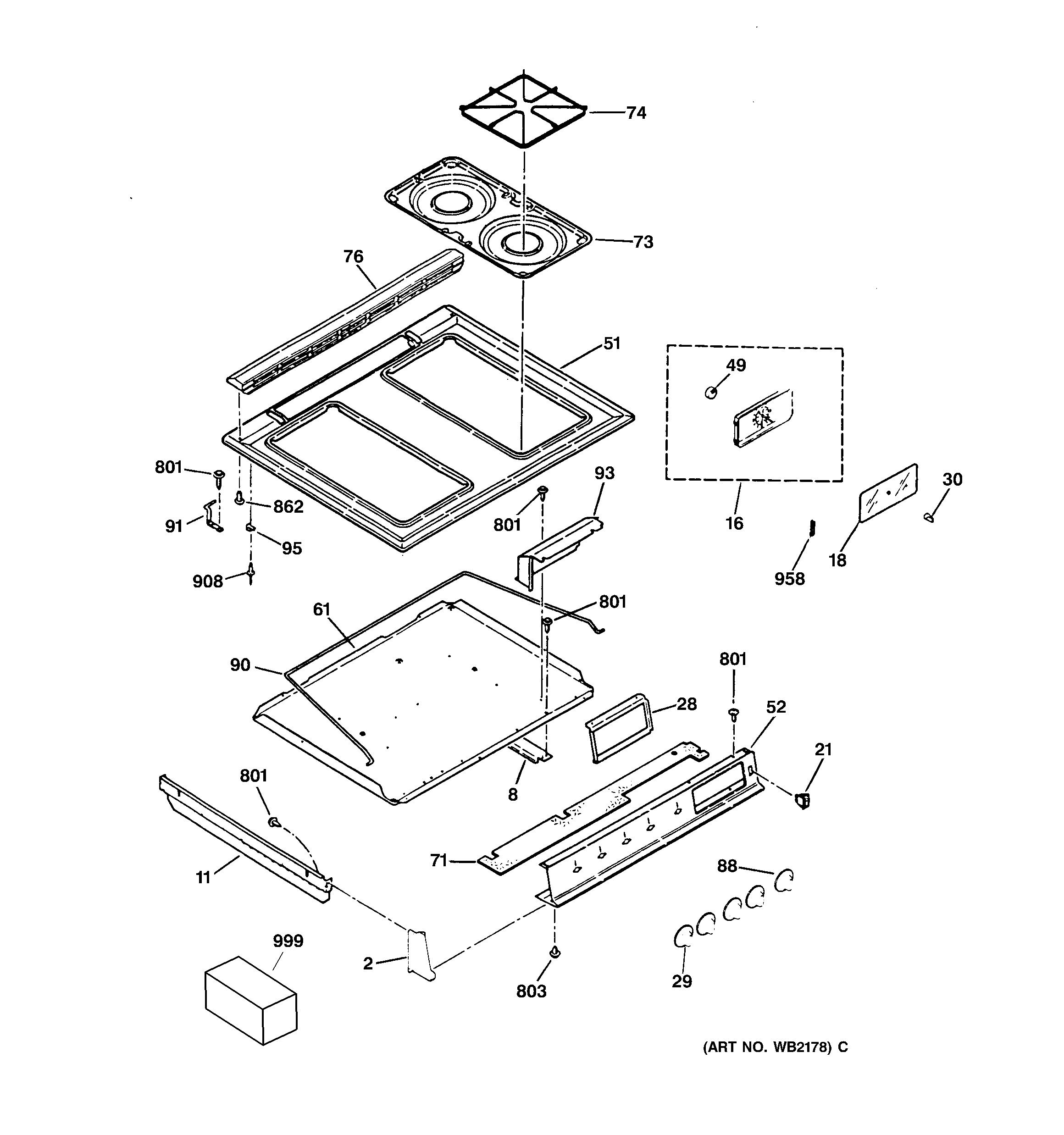

JGSC12GET1BG CONTROL PANEL & COOKTOP

JGSC12GET1BG CONTROL PANEL & COOKTOP

Written by

in

JGSC12GET1BG CONTROL PANEL & COOKTOP

Products

PositionProduct
2GEN WB36K5378
2GEN WB36K5379
8BBB STIFFENER-LT
11SIDE EXTENSION
16GEN WB11K5030
18CLOCK GLASS
21GEN WB24X0415
28CLOCK BRACKET
29GEN WB03K5223
30GEN WB03X0766
49GEN WB11X0008
51GEN WB62K5034
52GEN WB36K5490
61BURNER BOX BOTTOM
71GEN WB35K5107
73AERATION PAN
74GRATE
76GEN WB34K5213
88GEN WB03K5224
90FLUE DEFL Z-SUPPORT
90GEN WB02X9112
91UNKNOWN
91UNKNOWN
93WIRE COVER
95GEN WB02K5098
95WB10X255 GE Oven Hinge Bracket
691WB1K5177 GE Oven Trim Screw
801WB1M1 GE Oven Screw
803WB1X1149 GE Oven Screw
813WB1X1261 GE Oven Screw
819WB1X1118 GE Oven Screw 6-32T
854SCREW-BRT. NI.
862GEN WB01X1178
908POP RIVET
958CLOCK CLIP
990GEN WB01X1432
999MODULE WIRE HARNESS
999GEN WB18K5128
999GEN WB18K5127
999GEN 31-13078
999GEN 31-10040
999GEN 49-8523
