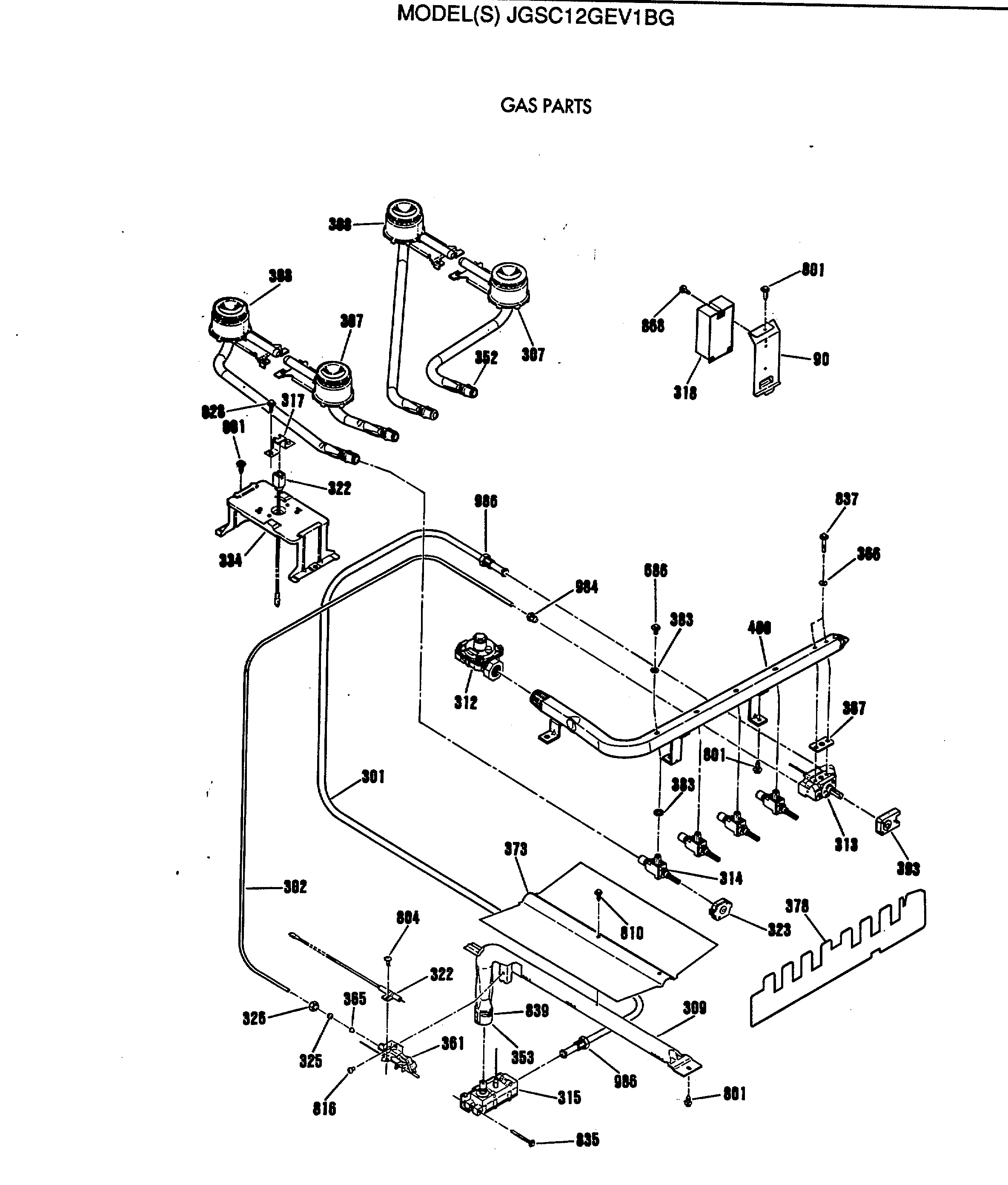

JGSC12GEV1BG GAS PARTS

JGSC12GEV1BG GAS PARTS

Written by

in

JGSC12GEV1BG GAS PARTS

Products

Position	Product
90	GEN WB02K5339
90	GEN WB02X9112
90	FLUE DEFL Z-SUPPORT
301	GEN WB28K5019
307	TOP BURNER-FRONT-LEFT
307	GEN WB16K5025
309	GEN WB16M0008
312	GEN WB21X0465
313	GEN WB20K5010
314	GEN WB21K5027
315	GEN WB21X0474
317	IGNITER BRACKET
318	SPARK IGN MODULE
322	SPARK IGN ELECTRODE
322	GEN WB02X9532
322	GEN WB13K5073
323	GEN WB24K5120
325	TUBING SLEEVE 3/16
326	TUBING NUT 3/16
334	SUPPORT-TOP BURNER-R/L
352	GEN WB02X9739
353	AIR SHUTTER-OVEN
361	PILOT W/CUP
365	GEN WB02X9017
366	THERMOSTAT SCREW GASKET
367	THERMOSTAT GASKET
373	OV BURN BAFFLE
378	GEN WB35K5108
383	GEN WB04K5003
383	GEN WB04K5002
393	THERMOSTAT SWITCH
400	GEN WB28K5066
686	GEN WB01K5171
801	WB1M1 GE Oven Screw
804	WB1X681 GE Oven Screw
810	WB1X1130 GE Oven Screw 10-32
816	GEN WB01X1125
828	WB1X1141 GE Oven Screw 8-32
835	GEN WB01X1123
837	GEN WB01X1151
839	AIR SHUTTER SCREW-OVEN
868	GEN WB01X1166
984	HEX NUT
