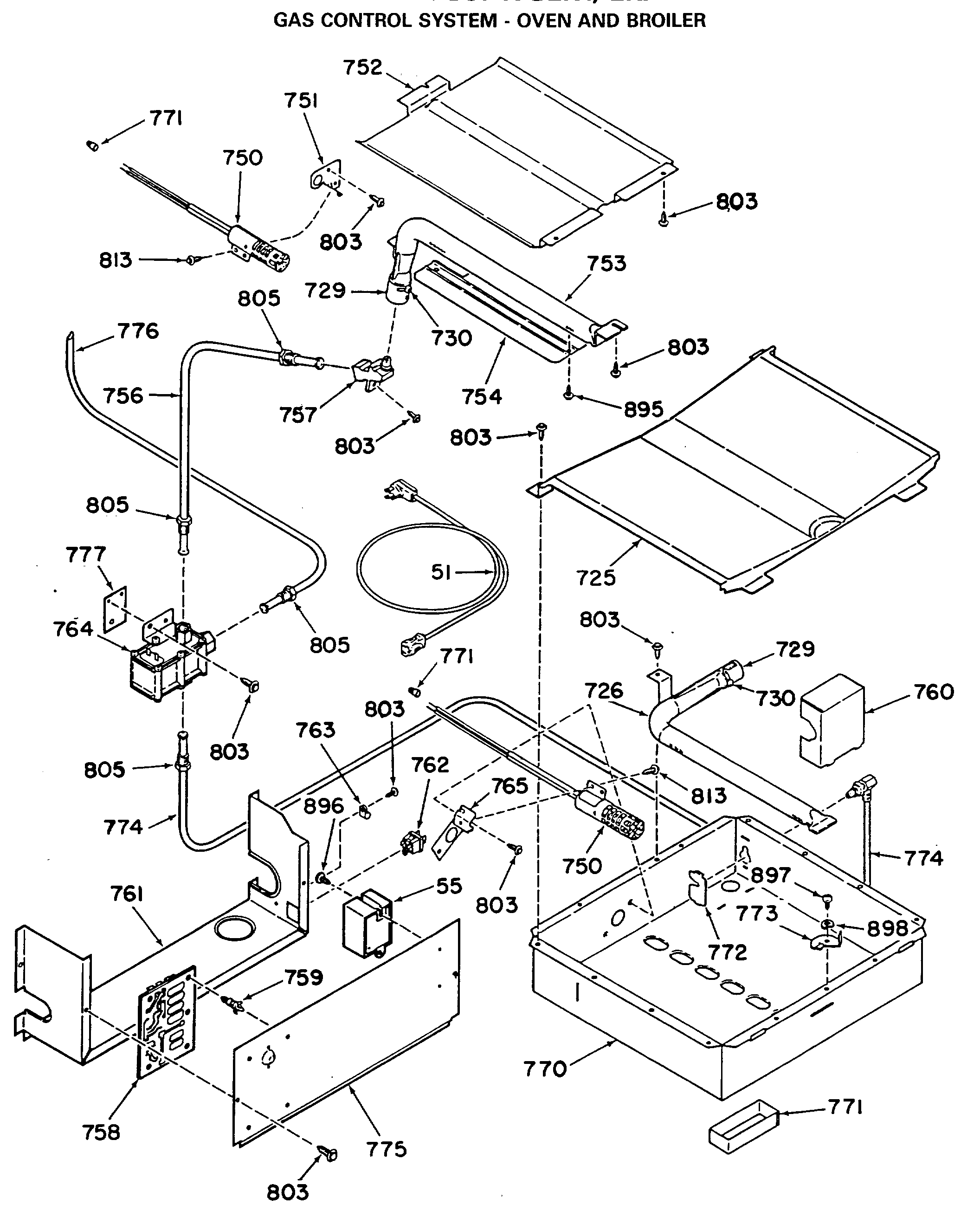

JGSP10GEK1 GAS CONTROL SYSTEM-OVEN AND BROILER

JGSP10GEK1 GAS CONTROL SYSTEM-OVEN AND BROILER

Written by

in

JGSP10GEK1 GAS CONTROL SYSTEM-OVEN AND BROILER

Products

PositionProduct
51GEN WB18X0353
51GEN WB18X0352
51*HARNESS-SWITCH
51GEN WB18X0311
51IGNITER HARNESS
51GEN WB18X0312
51ERC HARNESS
55SPARK IGN MODULE
725OVEN BURNER BAFFLE
726GEN WB28X0089
729AIR SHUTTER-OVEN
750WB2X9154 GE Oven Igniter with 8" Leads
751IGNITER BRACKET-BROIL
752BRO BRN BAFFLE -UPPER
753GEN WB28X0088
754BROILER BURNER BAFFLE-LO
756GEN WB02X9157
757GEN WB02X9156
758GEN WB27X0425
759PC BOARD SPACER
760ORIFICE FITTING SHIELD
761MOUNTING BRACKET
763GEN WB02X9161
764CONTROL VALVE
765311689 GE Ignition Bracket
770BURNER BOX BOTTOM
770VALVE–SHUT-OFF
771WB1X371D Package of 12 Ceramic Wire Connector
772WB2X9163 GE Plate
773WB14X115 GE Oven Latch
774TUBING-W/ORIFICE
775GEN WB02X9165
776GEN WB02X9166
777GEN WB02X9167
803WB1M1 GE Oven Screw
805NUT
813WB1X1130 GE Oven Screw 10-32
895WB1X1141 GE Oven Screw 8-32
896WB1X1118 GE Oven Screw 6-32T
897SCREW
898GEN WB01X1182
